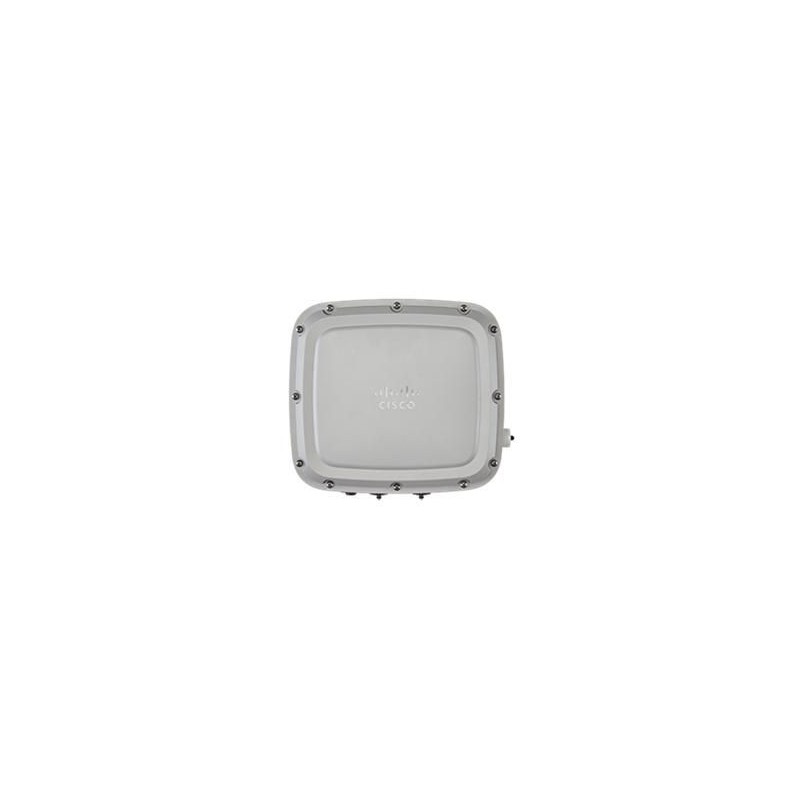

C9124AXI-EWC-E
  • C9124AXI-EWC-E

C9124AXI-EWC-E

Cisco
Catalyst 9124AX Series Access point with Embedded wireless controller (internal omnidirectional antenna) , Domain E
CHF2,470.5
Tax included
CHF2,285.4 Tax excluded
Delivery in several days
Quantity
Will be ordered for you

Description
With the emergence of high-density networks and the Internet of Things (IoT), we are more dependent on wireless networks than ever before. An increasing number of devices connect to the network every year, ranging from high-performance client devices to low-bandwidth IoT devices. The Cisco Catalyst 9124AX Series outdoor access points provide a seamless experience, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11ax) standard, the Catalyst 9124AX Series provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.

The Catalyst 9124AX Series offers flexible deployment options for service providers and enterprise networks that need the fastest links possible for mobile, outdoor clients (smartphones, tablets, and laptops), and wireless backhaul. With options for internal or external antennas, the 9124AX Series gives network operators the flexibility to balance their desired wireless coverage with their need for easy deployment.

The Catalyst 9124AX Series access points, paired with the Cisco Digital Network Architecture (Cisco DNA), are enterprise-class products that will address both your current and future needs. They are the first step in updating your network to take better advantage of all of the features and benefits that Wi-Fi 6 provides.

Specifications

Antenna

Antenna direction typeOmni-directional
Antenna gain level (max)7 dBi
Antenna typeInternal

Design

Product colourWhite

Features

2.4 GHzYes
5 GHzYes
6 GHzYes
BluetoothYes
Bluetooth version5.0
Cyclic Shift Diversity (CSD)Yes
Dynamic Frequency Selection (DFS)Yes
Ethernet LAN data rates100/1000/2500 Mbit/s
Maximal-Ratio Combining (MRC)Yes
Maximum data transfer rate5380 Mbit/s
MIMOYes
MIMO typeMulti User MIMO
Spread spectrum methodOFDMA
Wi-Fi Multimedia (WMM)/(WME)Yes

Operational conditions

Non-operating altitude0 - 5182 m
Operating altitude0 - 5182 m
Operating relative humidity (H-H)0 - 100 %
Operating temperature (T-T)-40 - 65 °C
Storage relative humidity (H-H)0 - 100 %
Storage temperature (T-T)-40 - 85 °C

Ports & interfaces

Ethernet LAN (RJ-45) ports2

Power

Power consumption (max)60 W
Power over Ethernet (PoE)Yes

Vendor information

Brand NameCisco
Warranty1
Product Details
2026-01-05
New

Data sheet

2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
6 GHz
Yes
MIMO
Yes
MIMO type
Multi User MIMO
Dynamic Frequency Selection (DFS)
Yes
Ethernet-LAN-Datenraten
100/1000/2500 Mbit/s
Stromversorgung über Ethernet (PoE)
Yes
Ethernet-LAN-Anschlüsse (RJ-45)
2
Antennenrichtungstyp
Omni-directional
Antennenverstärkungspegel (max.)
7 dBi
Maximum Datenübertragungsrate
5380 Mbit/s
Antenna type
Internal
Bluetooth
Yes
Bluetooth-Version
5.0
Betriebshöhe
0 - 5182 m
Nichtbetriebshöhe
0 - 5182 m
Stromverbrauch (max.)
60 W
Brand Name
Cisco
Warranty
1
Betriebstemperatur (TT)
-40 - 65 °C
Lagertemperatur (TT)
-40 - 85 °C
Relative Luftfeuchtigkeit bei Lagerung (HH)
0 - 100 %
Relative Luftfeuchtigkeit im Betrieb (HH)
0 - 100 %
Produktfarbe
White
Cyclic Shift Diversity (CSD)
Yes
Maximal-Ratio-Combining (MRC)
Yes
Spread-Spektrum-Methode
OFDMA

Specific References

MPN
C9124AXI-EWC-E
