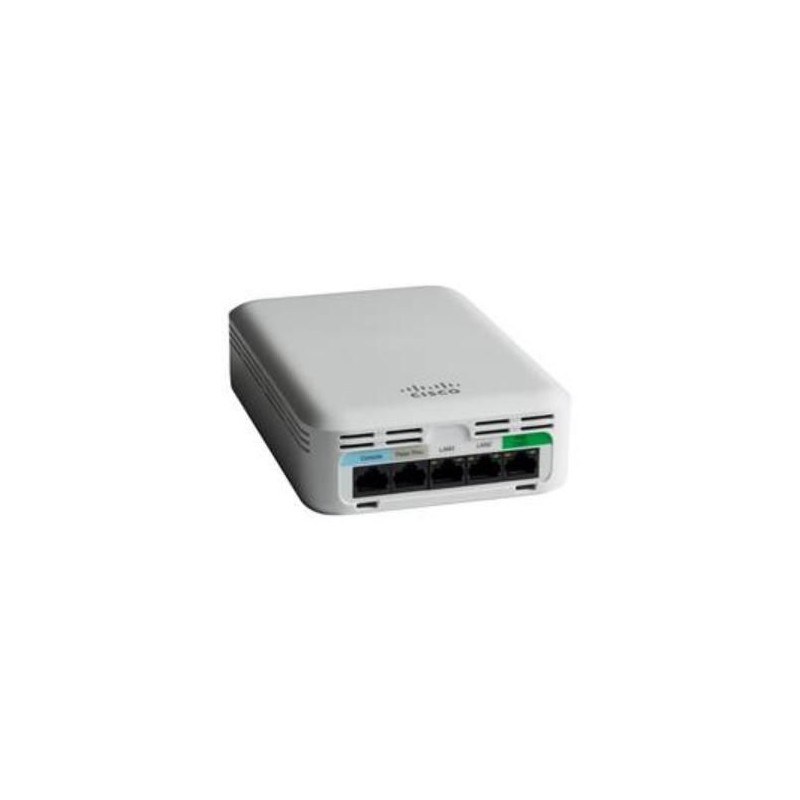

AIR-AP1810W-E-K9-RFB
  • AIR-AP1810W-E-K9-RFB
  • AIR-AP1810W-E-K9-RFB

AIR-AP1810W-E-K9-RFB

Cisco
Dual-Band, Controller-Based 802.11a/g/n/ac, Bluetooth 4.1, E Regulatory Domain, Wall Mounted
CHF58.6
Tax included
CHF54.2 Tax excluded
Delivery in several days
Quantity
Will be ordered for you

Description
The Cisco Aironet 1810W Series Access Points is a compact wall mount 802.11ac Wave 2 Access Point. It targets Multi-Dwelling-Unit (MDU) deployments, such as customers requiring support for Hospitality, university dorm-rooms, cruise ships, residential halls, K-12 classrooms, and healthcare, seeking a high-performance in-room Wireless + Wired Access Device. The Aironet 1810W Series combines Gigabit Ethernet wired and 802.11ac Wave 2 wireless connectivity into a sleek device, built to take advantage of existing cabling infrastructure. Features include:

- Simultaneous Wired and Wireless Access
- Dual Radio, Dual Band with 802.11ac Wave 2
- Designed for ease of mounting to numerous global wall junction standards. Accessories available to mount directly on a wall or have it desk mounted
- Sleek design in a small form factor: 165 x 114 x 41 mm (6.5 x 4.5 x 1.6 in)
- 3 x Local GigE Ethernet Ports + 1 x uplink GigE port + 1 x passive pass-through RJ45
- Powered over Ethernet (PoE) or with AC Adapter
- PoE out on LAN 1 port, up to 803.af Class 0 (depending on powering options)

Specifications

Antenna

Antenna gain level (max)4 dBi
Antenna typeInternal

Design

Cable lock slotYes
CertificationCAN/CSA-C22.2 No. 60950-1/EN 60950-1/IEC 60950-1/UL 2043/UL 60950-1
InternalNo
LED indicatorsYes
PlacementWall
Product colourWhite

Features

2.4 GHzYes
5 GHzYes
Channels quantity29 channels
Ethernet LAN data rates10/100/1000 Mbit/s
Frequency band2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.6, 5.64 - 5.7 GHz
Maximum data transfer rate1000 Mbit/s
Maximum data transfer rate (5 GHz)867 Mbit/s
Networking standardsIEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11d/IEEE 802.11g/IEEE 802.11h/IEEE 802.11i/IEEE 802.11n/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u
Transmitting power5 dBmW
Wi-Fi Multimedia (WMM)/(WME)Yes

Operational conditions

Non-operating altitude0 - 4500 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-30 - 70 °C

Performance

Built-in processorYes
Flash memory256 MB
Internal memory512 MB

Ports & interfaces

DC-in jackYes
Ethernet LAN (RJ-45) ports3
USB 2.0 ports quantity0

Power

AC input voltage44 - 57 V
Input voltage44 - 57 V
Power over Ethernet (PoE)Yes

Security

MAC address filteringYes
Remote Authentication Dial-In User Service (RADIUS)Yes
Security algorithms802.1x RADIUS/AES/EAP/EAP-FAST/EAP-PEAP/EAP-SIM/EAP-TLS/EAP-TTLS/MSCHAPv2/WPA/WPA2

Vendor information

Brand NameCisco
Warranty3 Month(s)
Product Details
2026-01-13
Refurbished

Data sheet

Flash memory
256 MB
2.4 GHz
Yes
5 GHz
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
Placement
Wall
Ethernet-LAN-Datenraten
10/100/1000 Mbit/s
Netzwerkstandards
IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11d/IEEE 802.11g/IEEE 802.11h/IEEE 802.11i/IEEE 802.11n/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u
Stromversorgung über Ethernet (PoE)
Yes
Ethernet-LAN-Anschlüsse (RJ-45)
3
Antennenverstärkungspegel (max.)
4 dBi
MAC-Adressfilterung
Yes
Maximum Datenübertragungsrate
1000 Mbit/s
Anzahl der USB 2.0-Anschlüsse
0
DC-Eingangsbuchse
Yes
Eingangsspannung
44 - 57 V
Antenna type
Internal
LED-Anzeigen
Yes
Frequenzband
2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.6, 5.64 - 5.7 GHz
Zertifizierung
CAN/CSA-C22.2 No. 60950-1/EN 60950-1/IEC 60950-1/UL 2043/UL 60950-1
AC-Eingangsspannung
44 - 57 V
Sicherheitsalgorithmen
802.1x RADIUS/AES/EAP/EAP-FAST/EAP-PEAP/EAP-SIM/EAP-TLS/EAP-TTLS/MSCHAPv2/WPA/WPA2
Schlitz für Kabelschloss
Yes
Eingebauter Prozessor
Yes
Betriebshöhe
0 - 3000 m
Nichtbetriebshöhe
0 - 4500 m
Brand Name
Cisco
Warranty
3 Month(s)
Betriebstemperatur (TT)
0 - 40 °C
Lagertemperatur (TT)
-30 - 70 °C
Relative Luftfeuchtigkeit im Betrieb (HH)
10 - 90 %
Intern
No
Anzahl der Kanäle
29 Kanäle
Interner Speicher
512 MB
Produktfarbe
White
Maximum Datenübertragungsrate (5 GHz)
867 Mbit/s
Sendeleistung
5 dBmW
Remote Authentication Dial-In User Service (RADIUS)
Yes

Specific References

MPN
AIR-AP1810W-E-K9-RFB
