Description

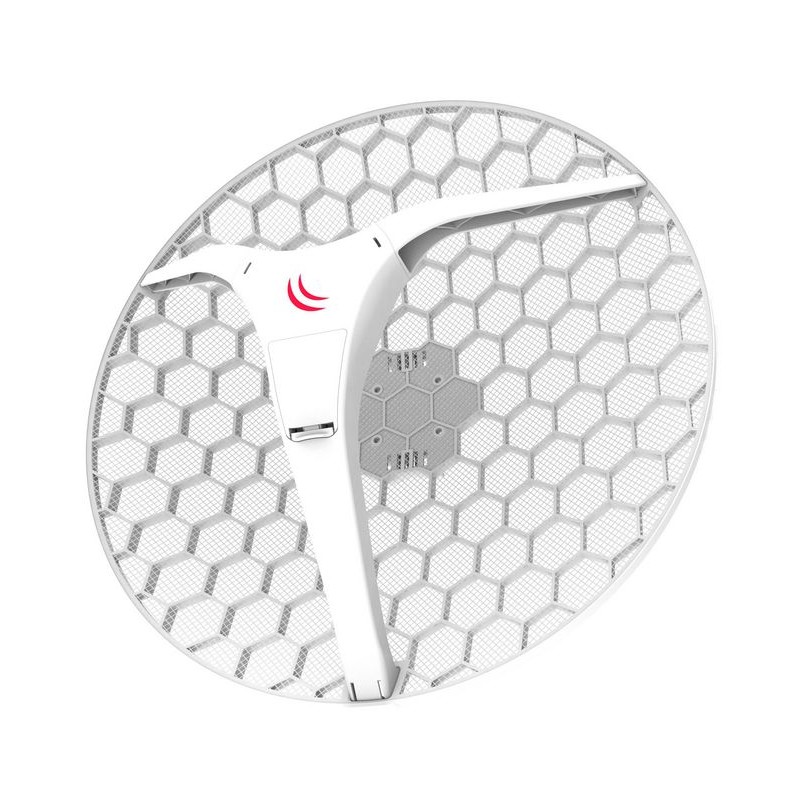

The Light Head Grid (LHG) is a compact and light wireless device with an integrated dual polarization grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances.
Several models are available with standard power, high power and even the XL with a higher gain and larger grid.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables. The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point.
Several models are available with standard power, high power and even the XL with a higher gain and larger grid.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables. The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point.
Specifications
Antenna
| Antenna gain level (max) | 27 dBi |
| Antenna type | External |
Certificates
| Compliance certificates | CE/EAC/Federal Communications Commission (FCC)/Industry Canada (IC)/RoHS |
Design
| Internal | No |
| International Protection (IP) code | IP54 |
| Placement | Pole |
| Product colour | White |
Features
| 2.4 GHz | No |
| 5 GHz | Yes |
| 6 GHz | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11n |
| Transmitting power | 25 dBmW |
| Wi-Fi data rate (max) | 54 Mbit/s |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 70 °C |
Packaging content
| Quantity per pack | 4 pc(s) |
Performance
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 256 MB |
| Processor frequency | 716 MHz |
| Processor model | IPQ4018 |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| AC input voltage | 10 - 30 V |
| Power consumption (max) | 7 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
Vendor information
| Brand Name | MikroTik |
| Warranty | 15 Month(s) |
Product Details
14 Items
New
Data sheet
- Flash memory
- 16 MB
- 2.4 GHz
- No
- 5 GHz
- Yes
- Placement
- Pole
- 6 GHz
- No
- Ethernet-LAN-Datenraten
- 10/100/1000 Mbit/s
- Netzwerkstandards
- IEEE 802.11a/IEEE 802.11ac/IEEE 802.11n
- Stromversorgung über Ethernet (PoE)
- Yes
- Prozessormodell
- IPQ4018
- Ethernet-LAN-Anschlüsse (RJ-45)
- 1
- Prozessorfrequenz
- 716 MHz
- Antennenverstärkungspegel (max.)
- 27 dBi
- Maximum Datenübertragungsrate
- 867 Mbit/s
- Verkabelungstechnik
- 10/100/1000Base-T(X)
- Anzahl der USB 2.0-Anschlüsse
- 0
- DC-Eingangsbuchse
- Yes
- Antenna type
- External
- Compliance certificates
- CE/EAC/Federal Communications Commission (FCC)/Industry Canada (IC)/RoHS
- Internationaler Schutzcode (IP).
- IP54
- AC-Eingangsspannung
- 10 - 30 V
- Eingebauter Prozessor
- Yes
- Stromverbrauch (max.)
- 7 W
- Brand Name
- MikroTik
- Warranty
- 15 Month(s)
- Betriebstemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 5 - 95 %
- Menge pro Packung
- 4 Stück(e)
- Intern
- No
- Interner Speicher
- 256 MB
- Produktfarbe
- White
- Maximum Datenübertragungsrate (5 GHz)
- 867 Mbit/s
- Power over Ethernet (PoE) type supported
- Passive PoE
- Sendeleistung
- 25 dBmW
- WLAN-Datenrate (max.)
- 54 Mbit/s
Specific References
- EAN13
- 4752224008497
- MPN
- RBLHGG-5ACD-XL4PACK
