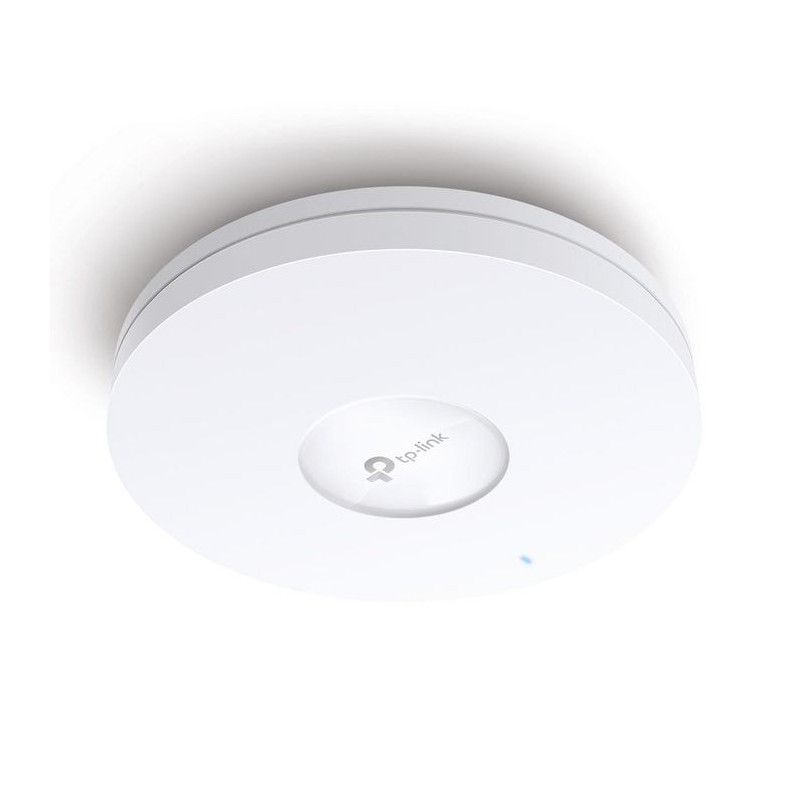

EAP660_HD
1 x 2.5 Gbps Ethernet, 802.3at PoE, IEEE 802.11ax/ac/n/g/b/a, 2.4 GHz / 5 GHz, 243 x 243 x 64 mm
Description
Ultra-High Performing
AX3600 Enterprise Wireless for
High-Density Environments
High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO** increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before.
Blazing Fast Speed with 8 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band)†. With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Optimized Wired Performance with 2.5 GE PoE+ Port
Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.△ This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Boost Network Efficiency in All Aspects
With Rich Advanced Features
Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Load Balance
ensures large numbers of users have smooth network experiences in high-density business networks
Airtime Fairness
Increases average network throughput in heavily congested environments
AX3600 Enterprise Wireless for
High-Density Environments
High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO** increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before.
Blazing Fast Speed with 8 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band)†. With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Optimized Wired Performance with 2.5 GE PoE+ Port
Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.△ This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Boost Network Efficiency in All Aspects
With Rich Advanced Features
Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Load Balance
ensures large numbers of users have smooth network experiences in high-density business networks
Airtime Fairness
Increases average network throughput in heavily congested environments
- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.†
- High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△
- PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
Specifications
Antenna
| Antenna type | Internal |
Design
| Placement | Ceiling |
| Product colour | White |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Airtime Fairness (ATF) | Yes |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| Band steering | Yes |
| Ethernet LAN data rates | 25000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Maximum data transfer rate | 2402 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wi-Fi roaming | Yes |
| Wireless isolation | Yes |
Management features
| Syslog | Yes |
| Web-based management | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Packaging content
| Mounting kit | Yes |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| Output current | 2 A |
| Output voltage | 12 V |
| Power over Ethernet (PoE) | Yes |
Security
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Security algorithms | WPA-Enterprise/WPA-PSK/WPA2-Enterprise/WPA2-PSK/WPA3-Enterprise/WPA3-PSK |
| Service Set Identifier (SSID) features | Multiple SSIDs |
Vendor information
| Brand Name | Omada |
| Warranty | 5 |
Product Details
2 Items
New
Data sheet
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- Automatic channel selection
- Yes
- Wi-Fi Multimedia (WMM)/(WME)
- Yes
- Wireless isolation
- Yes
- Placement
- Ceiling
- 6 GHz
- No
- MIMO
- Yes
- MIMO type
- Multi User MIMO
- Band steering
- Yes
- Airtime Fairness (ATF)
- Yes
- Syslog
- Yes
- Wi-Fi roaming
- Yes
- Webbasierte Verwaltung
- Yes
- Ethernet-LAN-Datenraten
- 25000 Mbit/s
- Netzwerkstandards
- IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
- Stromversorgung über Ethernet (PoE)
- Yes
- Ethernet-LAN-Anschlüsse (RJ-45)
- 1
- MAC-Adressfilterung
- Yes
- Maximum Datenübertragungsrate
- 2402 Mbit/s
- Montage Kits
- Yes
- Quality of Service (QoS)-Unterstützung
- Yes
- Anzahl der USB 2.0-Anschlüsse
- 0
- DC-Eingangsbuchse
- Yes
- Ratenbegrenzung
- Yes
- Antenna type
- Internal
- Frequenzband
- 2.4 - 5 GHz
- Sicherheitsalgorithmen
- WPA-Enterprise/WPA-PSK/WPA2-Enterprise/WPA2-PSK/WPA3-Enterprise/WPA3-PSK
- Ausgangsstrom
- 2 A
- VLAN-Unterstützung
- Yes
- Brand Name
- Omada
- Warranty
- 5
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 90 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 10 - 90 %
- Ausgangsspannung
- 12 V
- Produktfarbe
- White
- Maximum Datenübertragungsrate (2,4 GHz)
- 1148 Mbit/s
- Maximum Datenübertragungsrate (5 GHz)
- 2402 Mbit/s
- Service Set Identifier (SSID)-Funktionen
- Multiple SSIDs
- Remote Authentication Dial-In User Service (RADIUS)
- Yes
- Automatischer Kanalsuchlauf
- Yes
Specific References
- UPC
- 845973089719
- EAN13
- 6935364089719
- MPN
- EAP660 HD
