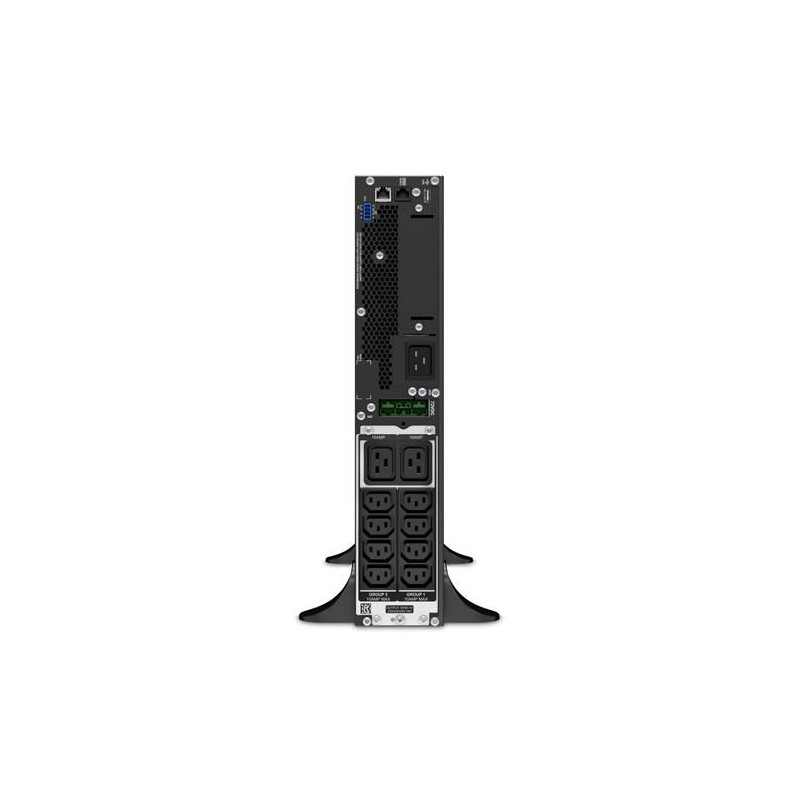

SRT2200XLI
Smart-UPS, Double Conversion (Online), 2200VA, 1.98 KW, 230V, RJ-45 Serial, Smart-Slot, USB
Description
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card
Specifications
Battery
| Automatic battery test | Yes |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Cold start | Yes |
| Hot-swap battery | Yes |
| Number of batteries supported | 1 |
| Typical backup time at full load | 3.9 min |
| Typical backup time at half load | 11.6 min |
Design
| Cable length | 2.44 m |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH |
| Display | LCD |
| Display type | LCD |
| Energy Star certified | Yes |
| Form factor | Rackmount/Tower |
| International Protection (IP) code | IP20 |
| LED indicators | Yes |
| Product colour | Black |
| RoHS compliance | Yes |
Features
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| Crest factor | 3:1 |
| Efficiency | 92.2 % |
| Emergency Power Off (EPO) | Yes |
| Input frequency | 40/70 Hz |
| Input operation voltage (max) | 275 V |
| Input operation voltage (min) | 100 V |
| Noise level | 55 dB |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 1980 W |
| Output power capacity | 2.2 kVA |
| Surge energy rating | 340 J |
| Surge protection | Yes |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Web-based management | Yes |
Logistics data
| Products per pallet | 12 pc(s) |
Operational conditions
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -15 - 45 °C |
Other features
| Interface | SmartSlot |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Packaging content | Power cord/Removable support feet |
Packaging content
| Cables included | USB cable |
| Quick installation guide | Yes |
Packaging data
| Bracket | Yes |
| Software CD | Yes |
| Warranty card | Yes |
Ports & interfaces
| AC outlet types | C13 coupler/C19 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| Power plug | C20 coupler |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| USB port | Yes |
Technical details
| Compliance certificates | RoHS |
| Sustainability certificates | ENERGY STAR/Green Premium |
Vendor information
| Brand Name | APC |
| Warranty | 1 |
Product Details
90 Items
New
Data sheet
- Warranty card
- Yes
- SmartSlot
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
- Packaging content
- Power cord/Removable support feet
- Webbasierte Verwaltung
- Yes
- Software CD
- Yes
- Compliance certificates
- RoHS
- Anzahl der unterstützten Batterien
- 1
- Ladezeit des Akkus
- 3 h
- Anzeige
- LCD
- Formfaktor
- Rackmount/Tower
- LED-Anzeigen
- Yes
- Ausgangsbetriebsspannung (max.)
- 240 V
- Ausgangsbetriebsspannung (min)
- 220 V
- Ausgangsleistungskapazität
- 2.2 kVA
- Eingangsbetriebsspannung (max.)
- 275 V
- Eingangsbetriebsspannung (min)
- 100 V
- Eingangsfrequenz
- 40/70 Hz
- Geräuschpegel
- 55 dB
- Notabschaltung (EPO)
- Yes
- Scheitelfaktor
- 3:1
- USV-Topologie
- Double-conversion (Online)
- Wellenform
- Sine
- Kabel enthalten
- USB cable
- AC-Steckdosentypen
- C13 coupler/C19 coupler
- Anzahl der AC-Steckdosen
- 10 AC-Ausgänge
- Netzstecker
- C20 coupler
- Serielle Schnittstelle
- Yes
- Typ der seriellen Schnittstelle
- RJ-45
- USB-Anschluss
- Yes
- Internationaler Schutzcode (IP).
- IP20
- Zertifizierung
- CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
- Nachhaltigkeitszertifikate
- ENERGY STAR/Green Premium
- Effizienz
- 92.2 %
- Energy Star-zertifiziert
- Yes
- Produkte pro Palette
- 12 Stück(e)
- Überspannungsschutz
- Yes
- Betriebshöhe
- 0 - 3000 m
- Nichtbetriebshöhe
- 0 - 15000 m
- Schnellinstallationsanleitung
- Yes
- Anzeigetyp
- LCD
- Kabellänge
- 2.44 m
- RoHS-Konformität
- Yes
- Schnittstelle
- SmartSlot
- Brand Name
- APC
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -15 - 45 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 0 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 0 - 95 %
- Ausgangsleistung
- 1980 W
- Produktfarbe
- Black
- Akkulaufzeit (max.)
- 5 Jahr(e)
- Ausgangsfrequenz
- 50/60 Hz
- Bewertung der Überspannungsenergie
- 340 J
- Nominale Eingangsspannung
- 230 V
- Nominale Ausgangsspannung
- 230 V
- Akustische(r) Alarm(e)
- Yes
- Automatischer Neustart
- Yes
- Hot-Swap-Akku
- Yes
- Typische Autonomiezeit bei halber Last
- 11.6 min
- Typische Autonomiezeit bei Volllast
- 3.9 min
- Halterung
- Yes
- Anzahl der Ausgangs-IEC-Jumper
- 2
Specific References
- UPC
- 731304317630
- EAN13
- 0731304317630
- MPN
- SRT2200XLI
