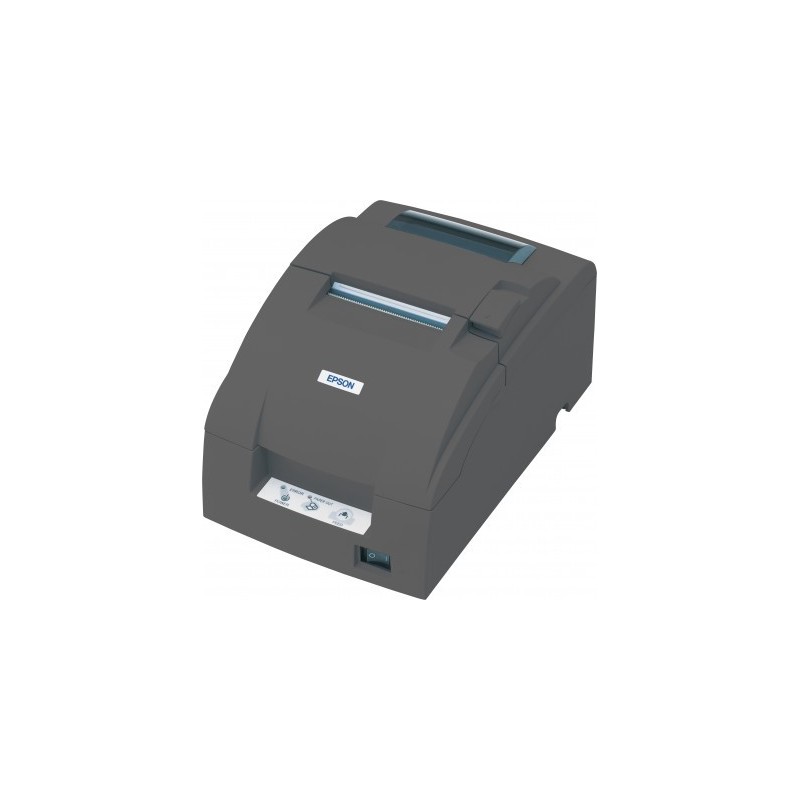

C31C517057

Data sheet

Type

POS printer

Product color

Gray

Quantity per pack

1 pc(s)

Connectivity technology

Wired

Ethernet LAN

No

Weight

5.51 lbs (2.5 kg)

Harmonized System (HS) code

84433210

Wi-Fi

No

Width

6.3" (160 mm)

Height

5.47" (139 mm)

Country of origin

China

AC input voltage

24 V

Depth

9.76" (248 mm)

Package weight

11.5 lbs (5.2 kg)

Package width

9.45" (240 mm)

Package depth

14.8" (375 mm)

Package height

9.84" (250 mm)

Storage temperature (T-T)

-10 - 50 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

AC adapter included

Yes

Print technology

Dot matrix

Dimensions (WxDxH)

6.3 x 9.76 x 5.45" (160 x 248 x 138.5 mm)

Quick start guide

Yes

Standard interfaces

Parallel

Quantity per pallet

56 pc(s)

Pallet width

47.2" (120 cm)

Pallet height

39.4" (100 cm)

Quantity per pallet layer

8 pc(s)

Quantity per pallet layer (UK)

12 pc(s)

Quantity per pallet (UK)

84 pc(s)

Pallet length (UK)

88.6" (2.25 m)

Mean time between failures (MTBF)

180000 h

Sound pressure level (printing)

64 dB

Safety

UL, CSA, TÜV (EN60950)

Electromagnetic compatibility

VCCI class A, FCC class A, CE marking, AS / NZS 3548 class B

Parallel connector

Yes

Maximum roll diameter

3.27" (8.3 cm)

Supported paper width

76, 69.5, 57.5 mm

Print speed

4 lps

Character density

16 cpi

Character size

0.0630 x 0.122" (1.6 x 3.1 mm)

Autocutter durability

0.8 million cuts

Column capacity

40

Mean cycles between failures (MCBF)

18000000

Specific References

EAN13

8715946191126

MPN

C31C517057
