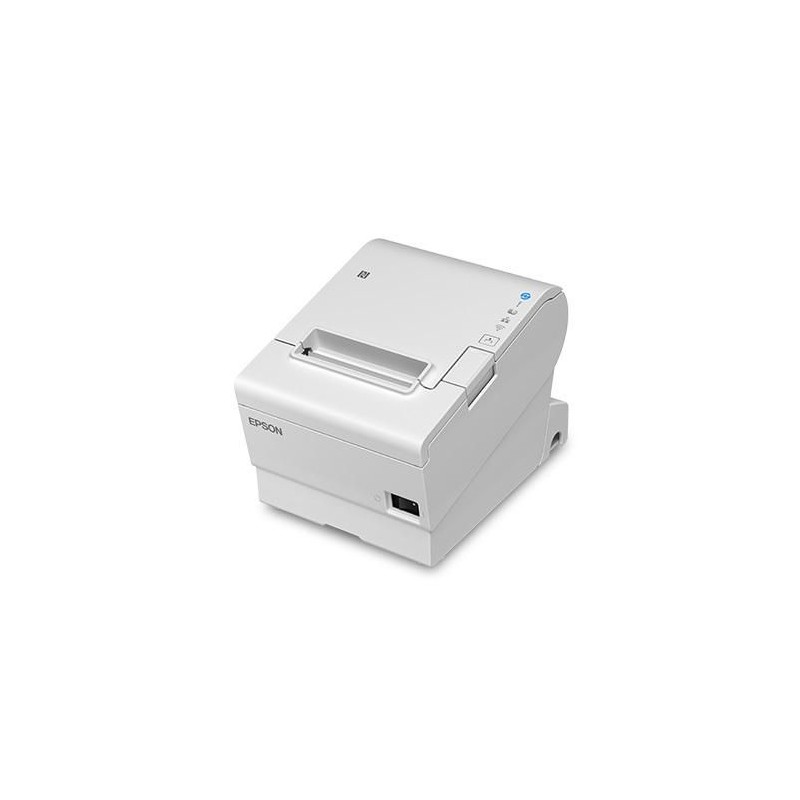

C31CJ57131

Data sheet

Type

POS printer

Product color

White

Quantity per pack

1 pc(s)

Connectivity technology

Wired & Wireless

Ethernet LAN

Yes

Weight

3.75 lbs (1.7 kg)

Harmonized System (HS) code

84433210

Maximum resolution

180 x 180 DPI

Width

5.71" (145 mm)

Height

5.83" (148 mm)

Country of origin

Philippines

Power source type

USB

AC input voltage

24 V

Certification

CE

Depth

7.68" (195 mm)

Package weight

4.96 lbs (2.25 kg)

Package width

7.68" (195 mm)

Package depth

9.25" (235 mm)

Package height

10.2" (260 mm)

Operating temperature (T-T)

5 - 45 °C

Storage temperature (T-T)

-10 - 50 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Print technology

Thermal

USB connectivity

Yes

Power consumption

27900 mA

Power consumption (standby)

1400 mA

Pallet weight

0 oz (0 g)

Quantity per pallet

112 pc(s)

Quantity per pallet (UK)

168 pc(s)

Mean time between failures (MTBF)

360000 h

Wall mountable

Yes

Sound pressure level (printing)

52 dB

Power consumption (printing)

27.9 W

Print speed

500 mm/sec

Buffer size

4 KB

Pallet weight (UK)

0 oz (0 g)

Pre-installed software

Server Direct Print, ePOS-Device, ePOS-Display, ePOS-Print

Optional connectivity

Wireless LAN

Maximum roll diameter

3.27" (8.3 cm)

Sound pressure level (standby)

52 dB

Media thickness

48 - 80 mm

Supported paper width

80 mm

USB connector

USB Type-A / USB Type-B

Character size

0.0555 x 0.133" (1.41 x 3.39 mm)

Printing characters

Text, Graphic, Barcode, 2D barcode

Character sets

ANK

Autocutter durability

3 million cuts

Paper save function

Yes

Print head life

200 km

Mounting position

Horizontal/Vertical

Column capacity

42/56

Mean cycles between failures (MCBF)

70000000

Changeable interface

Y

Near Field Communication (NFC)

Yes

Built-in sensors details

Paper End Sensor, Paper Near End Sensor, Cover Open Sensor, Receipt paper sensor

Lifetime

20000000 lines

Specific References

EAN13

8715946697116

MPN

C31CJ57131
