Faster, better inkjet technology Inkjet technology means that not only are printouts more detailed (600dpi compared to 180dpi for existing models), they’re around twice as fast too, with a print speed of 100mm/s (23.2lps) compared to 43mm/s (13.5lps) for previous models.
Low TCO Epson has managed to incorporate inkjet technology into this new model while retaining a similar low total cost of ownership to previous dot matrix printers.
Simple maintenance The ink cartridges have an easy-install design ideal for busy retail counters, as well as drop-in paper roll for quick loading, and the ink formulation used offers better water and light resistance than dot matrix, so receipts and documents will last longer.
Backwards compatible To make upgrading from existing models incredibly easy, the TM-J7700 is fully backwards-compatible with the TM-J7500 and has exactly the same footprint, so it can simply be swapped in. However, to integrate smoothly with the latest ePOS systems, the model offers both USB and Ethernet connection options.

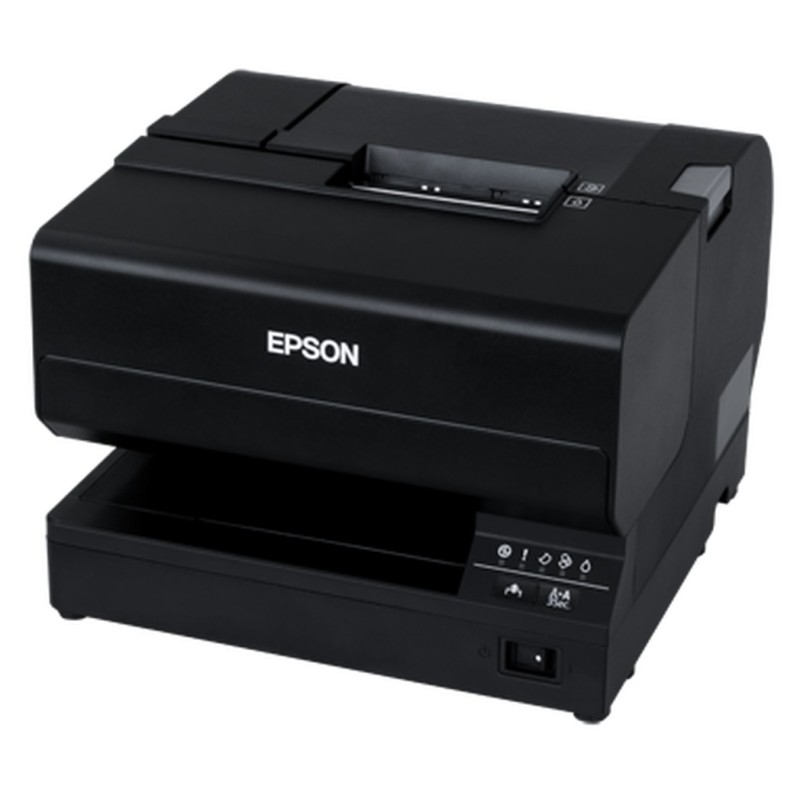

Epson TM-J7700 (301). Print technology: Inkjet, Type: POS printer, Print speed: 98 mm/sec. Supported paper width: 58 - 83 mm, Media thickness: 0.06 - 0.09 mm, Maximum paper size (slip): 9.06 x 11.7" (230 x 297 mm). Connectivity technology: Wired, USB connector: USB Type-B. Ethernet LAN data rates: 10,100 Mbit/s. Sound pressure level (printing): 55 dB, Mean time between failures (MTBF): 180000 h, Autocutter durability: 1.5 million cuts
Print technology
Inkjet
Type
POS printer
Color
No
Print speed
98 mm/sec
Print speed (graphic)
98 mm/sec
Print speed (receipt)
98 mm/sec
Print speed (slip)
85 mm/sec
Printing characters
Text, Graphic, Barcode
Character sets
ANK
Alphanumeric memory
95
Supported paper width
58 - 83 mm
Media thickness
0.06 - 0.09 mm
Maximum paper size (slip)
9.06 x 11.7" (230 x 297 mm)
Connectivity technology
Wired
USB port
Yes
USB 2.0 ports quantity
1
USB connector
USB Type-B
Ethernet LAN (RJ-45) ports
1
Ethernet LAN
Yes
Wi-Fi
No
Ethernet LAN data rates
10,100 Mbit/s
Sound pressure level (printing)
55 dB
Mean time between failures (MTBF)
180000 h
Half-cutter
No
Autocutter durability
1.5 million cuts
Country of origin
China
Printer receipt unit life
3700000000 lines
Printer slip unit life
5000000 lines
Safety
TÜV, TÜV (EN60950-1)
Certification
CE, EN55024, EN55032 Class A, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11
Product color
Black
AC input voltage
24 V
Power consumption (standby)
70000 mA
Operating temperature (T-T)
10 - 35 °C
Storage temperature (T-T)
-20 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
20 - 85%
Width
9.88" (251 mm)
Depth
10.2" (260 mm)
Height
7.4" (188 mm)
Weight
12.8 lbs (5.8 kg)
Cables included
AC
Quantity per pack
1 pc(s)
Package width
13.8" (350 mm)
Package depth
15.4" (390 mm)
Package height
12.2" (310 mm)
Package weight
17.4 lbs (7.88 kg)
Pallet weight (UK)
0 oz (0 g)
Harmonized System (HS) code
84433210
Quantity per pallet
36 pc(s)
Quantity per pallet layer
6 pc(s)
Pallet width
31.5" (80 cm)
Pallet length
47.2" (120 cm)
Pallet height
43.7" (111 cm)
Pallet weight
0 oz (0 g)
Quantity per pallet (UK)
36 pc(s)
Quantity per pallet layer (UK)
6 pc(s)
Pallet width (UK)
39.4" (100 cm)
Pallet length (UK)
47.2" (120 cm)
Pallet height (UK)
43.7" (111 cm)
Paper dimensions
58 mm - 83 mm
Mean cycles between failures (MCBF)
5000000
Font styles
ANK
Product Details
2026-04-01
New
Data sheet
Type
POS printer
Product color
Black
Quantity per pack
1 pc(s)
Connectivity technology
Wired
USB 2.0 ports quantity
1
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100 Mbit/s
Weight
12.8 lbs (5.8 kg)
Harmonized System (HS) code
84433210
Wi-Fi
No
Width
9.88" (251 mm)
Height
7.4" (188 mm)
Country of origin
China
AC input voltage
24 V
Certification
CE, EN55024, EN55032 Class A, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11
