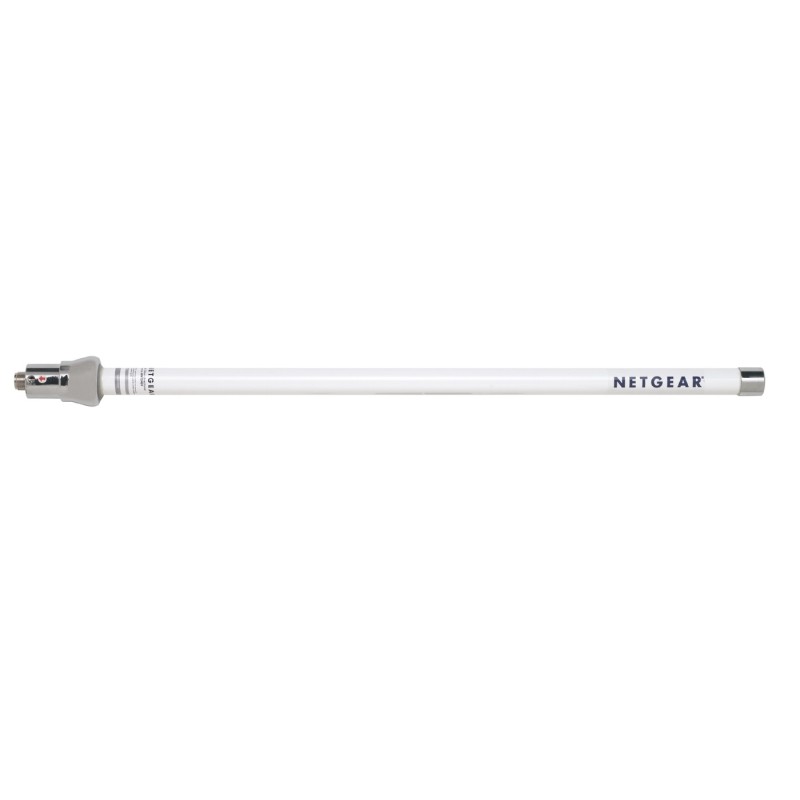

ANT2409-20000S - ANT2409-20000S

Inside or out, we’ve got your wireless 802.11 b/g/n devices covered.

Optimal for medium range indoor or outdoor point to multi-point applications, the ProSAFE® 9DBI Omni-Directional antenna provides extended point-to-multi-point coverage for wireless 802.11 b/g/n devices.

Optimize WLAN Range and Power with the ProSAFE® 9 dBi Indoor/Outdoor Omni-directional Antenna

The ANT2409 indoor/outdoor 2.4 GHz antenna provides extended point to multi-point coverage for wireless 802.11 b/g/n devices. Optimal for medium range indoor or outdoor point-to-multi-point applications. Included lightning arrestor helps prevent damage due to lightning-induced surges or static electricity in outdoor applications. Typically hung from crossbars of drop ceilings or on a rooftop, the waterproof and UV resistant ANT2409 includes wall and pole mounting materials for installation ease; antenna cable and grounding cable not included.

NETGEAR ProSAFE® line of antennas and accessories for 802.11b, 802.11g and 802.11n devices give you multiple options for maximizing the reach and performance of your wireless infrastructure devices. Every WLAN deployment is unique. With both directional and omni-directional antennas, indoor and outdoor options, low-loss cables, mounting hardware, and other accessories, installers can customize a wireless solution that meets the requirements of even the most challenging applications.

NETGEAR ProSAFE. Antenna gain level (max): 9 dBi, Frequency band: 2.4 - 2.485 GHz, Networking standards: IEEE 802.11g. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Connector gender: Female. Width: 24.6" (625 mm), Depth: 2.95" (75 mm), Height: 2.2" (56 mm). Quantity per pack: 1 pc(s)

Antenna gain level (max)	9 dBi
Frequency band	2.4 - 2.485 GHz
Networking standards	IEEE 802.11g
Horizontal beam width	360°
Vertical beam width	30°
Antenna type	Omni-directional antenna
Antenna connector type	N-type
Connector gender	Female
Polarization	Vertical polarization
Product color	White
Maximum operating distance	452755.9" (11500 m)
Cable length	78.7" (2 m)
Mounting	Wall
Purpose	Indoor & outdoor
Operating temperature (T-T)	-30 - 80 °C
Width	24.6" (625 mm)
Depth	2.95" (75 mm)
Height	2.2" (56 mm)
Weight	31.7 oz (900 g)
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85177100
