Description

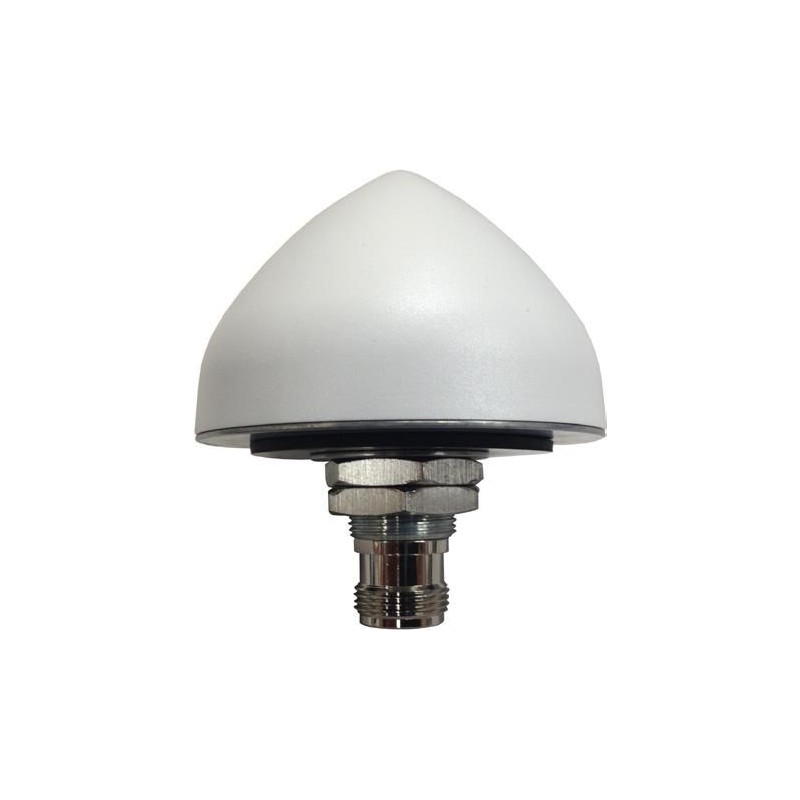

The standard antenna used with the SyncServer S600/S650 is a high-gain (40 dB) GNSS antenna covering the GPS L1, GLONASS L1, and SBAS (WAAS, EGNOS, and MSAS) frequency band (1575 MHz to 1606 MHz). The antenna has a three-stage low-noise amplifier, with a mid-section SAW with a tight pre-filter to protect against saturation by high- level sub-harmonics and L-Band signals, making it excellent for timing applications. An L-bracket for pole mounting and 3-foot BNC(m) to N(f) cable is also included.
Specifications
Certificates
| Certification | CE, REACH |
| Compliance certificates | RoHS |
Features
| Cable length | 53.3 m |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
Operational conditions
| Operating temperature (T-T) | -40 - 85 °C |
Packaging content
| Quantity per pack | 1 pc(s) |
Performance
| Antenna gain level (max) | 4.5 dBi |
| Bandwidth note | 31 MHz |
| Frequency band | 1575 - 1606 GHz |
Vendor information
| Brand Name | MicroSemi |
| Warranty | 1 |
Weight & dimensions
| Diameter | 6.65 cm |
Product Details
2026-04-06
New
Data sheet
- Antennenverstärkungspegel (max.)
- 4.5 dBi
- Internationaler Schutzcode (IP)
- IP67
- Spannungs-Stehwellenverhältnis (VSWR)
- 1.5:1
- Bandwidth note
- 31 MHz
- Compliance certificates
- RoHS
- Frequenzband
- 1575 - 1606 GHz
- Zertifizierung
- CE, REACH
- Durchmesser
- 6.65 cm
- Kabellänge
- 53.3 m
- Brand Name
- MicroSemi
- Warranty
- 1
- Betriebstemperatur (TT)
- -40 - 85 °C
- Menge pro Packung
- 1 Stück(e)
- Produktfarbe
- White
Specific References
- MPN
- 990-15202-175
