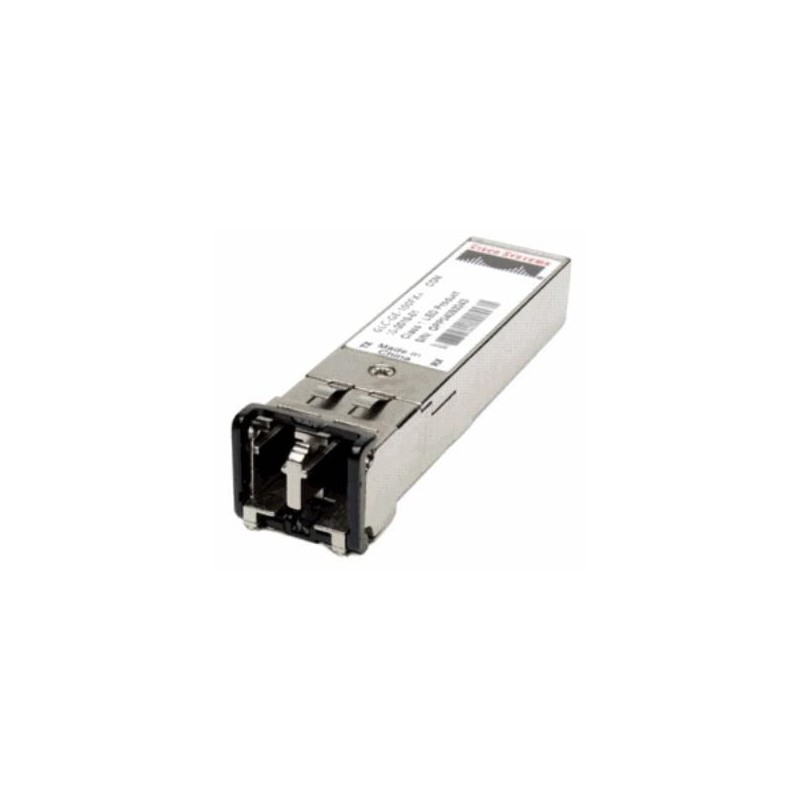

SFP-10G-BXD-I
10GBASE-BX10-D SFP+ bidirectional transceiver module for 10km, tx1330nm/rx1270nm
Description
The Cisco SFP-10G-BXD-I and SFP-10G-BXU-I SFPs operate on a single strand of standard SMF.
A SFP-10G-BXD-I device is always connected to a SFP-10G-BXU-I device with a single strand of standard SMF with an operating transmission range up to 10 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices. SFP-10G-BXD-I transmits a 1330-nm channel and receives a 1270-nm signal, whereas SFP-10G-BXU-I transmits at a 1270-nm wavelength and receives a 1330-nm signal. The presence of a wavelength-division multiplexing (WDM) splitter integrated into the SFP to split the 1270-nm and 1330-nm light paths.
A SFP-10G-BXD-I device is always connected to a SFP-10G-BXU-I device with a single strand of standard SMF with an operating transmission range up to 10 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices. SFP-10G-BXD-I transmits a 1330-nm channel and receives a 1270-nm signal, whereas SFP-10G-BXU-I transmits at a 1270-nm wavelength and receives a 1330-nm signal. The presence of a wavelength-division multiplexing (WDM) splitter integrated into the SFP to split the 1270-nm and 1330-nm light paths.
Specifications
Features
| Certification | MSA |
| Hot-Plug support | Yes |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 85 °C |
Packaging content
| Quantity per pack | 1 pc(s) |
Packaging data
| Number of products included | 1 pc(s) |
Performance
| Auto MDI/MDI-X | Yes |
| Cabling technology | 10GBASE-BXD |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Fiber optic connector | LC |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 Mbit/s |
| Maximum transfer distance | 10000 m |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3u |
| SFP transceiver standard | BX |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Wavelength | 1330 nm |
Vendor information
| Brand Name | Cisco |
| Warranty | 3 Month(s) |
Product Details
2026-04-13
New
Data sheet
- Auto MDI/MDI-X
- Yes
- Netzwerkstandards
- IEEE 802.3/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3u
- Maximum Datenübertragungsrate
- 10000 Mbit/s
- Verkabelungstechnik
- 10GBASE-BXD
- Anzahl der enthaltenen Produkte
- 1 Stück(e)
- Zertifizierung
- MSA
- Hot-Plug-Unterstützung
- Yes
- Oberflächentyp
- SFP+
- Maximum Übertragungsentfernung
- 10000 m
- SFP-Transceiver-Standard
- BX
- SFP-Transceiver-Typ
- Fiber optic
- Wellenlänge
- 1330 nm
- Glasfaseranschluss
- LC
- Singlemode-Faser (SMF) wird unterstützt
- Yes
- Unterstützte Glasfaserkabeldurchmesser (Kern/Mantel)
- 9/125 µm
- Brand Name
- Cisco
- Warranty
- 3 Month(s)
- Betriebstemperatur (TT)
- -40 - 85 °C
- Lagertemperatur (TT)
- -40 - 85 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 0 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 0 - 95 %
- Menge pro Packung
- 1 Stück(e)
Specific References
- UPC
- 882658643835
- MPN
- SFP-10G-BXD-I=
