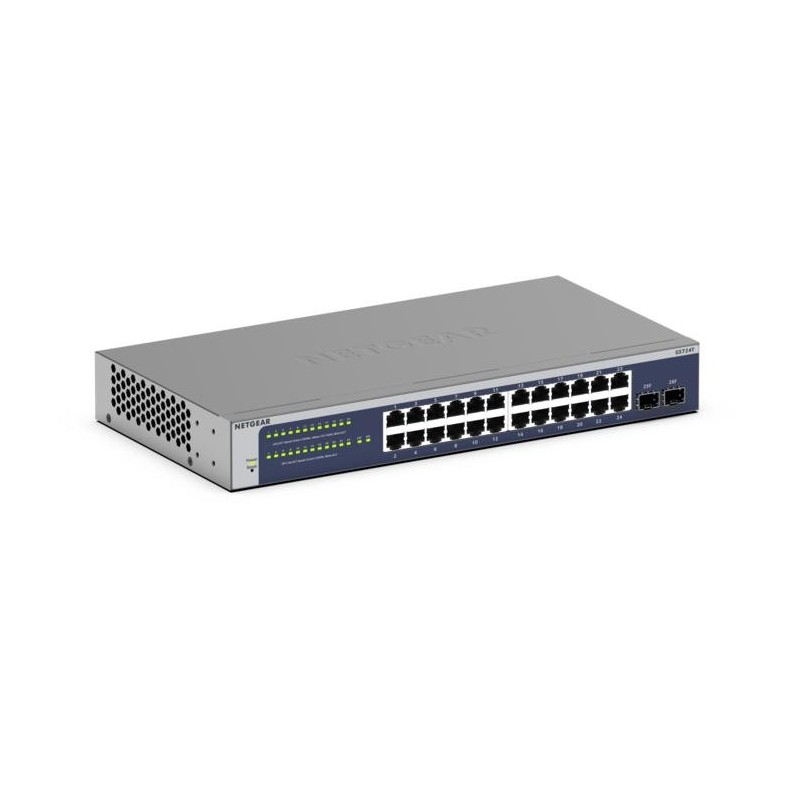

GS724T-600EUS - W129019503

Data sheet

Product color

Blue, Gray

Weight

3.57 lbs (1.62 kg)

AC input frequency

50/60 Hz

Width

12.9" (328 mm)

Height

1.69" (43 mm)

AC input voltage

100 - 240 V

Depth

6.65" (169 mm)

Format

1U

LED indicators

Activity, Link

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 95%

Number of fans

0 fan(s)

Networking standards

IEEE 802.1D, IEEE 802.1ab, IEEE 802.1as, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z

Power consumption (typical)

13.5 W

Security algorithms

HTTPS, SSL/TLS

Mean time between failures (MTBF)

1999946 h

Operating altitude

0 - 118110.2" (0 - 3000 m)

Non-operating altitude

0 - 118110.2" (0 - 3000 m)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Switch type

Managed

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

DC-in jack

10G support

Yes

Full duplex

Yes

Switching capacity

52 Gbit/s

Jumbo frames support

Yes

Jumbo frames

9000

Packet buffer memory

2 MB

System event log

Yes

Firmware upgradeable

Yes

MAC address filtering

Yes

Management protocols

SNMP v1/v2

Power over Ethernet (PoE)

No

VLAN support

Yes

Access Control List (ACL)

Yes

Rack mounting

Yes

SFP module slots quantity

2

Switch layer

L2+/L3

Flow control support

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

Number of VLANs

256

MAC address table

16000 entries

DHCP features

DHCP client, DHCP snooping

Multicast support

Yes

Port mirroring

Yes

Number of queues

8

IGMP snooping

Yes

SSH/SSL support

Yes

Noise level

0 dB

Number of static routes

32

IP routing

Yes

Number of multicast groups filtered

512

Specific References

UPC

606449169119

EAN13

0606449169119

MPN

GS724T-600EUS
