Description
Expanding Wired Connectivity for SOHO Networks

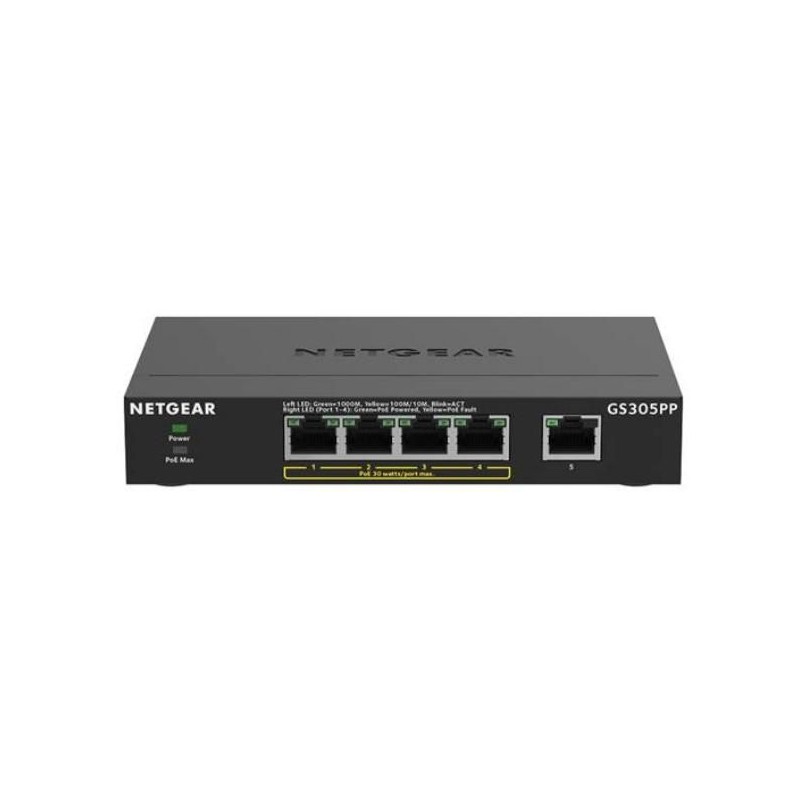

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
Specifications
Certificates
| Certification | CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, CB, CE/VD, CCC |
Data transmission
| Forwarding rate | 1.448 Mpps |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Latency (1 Gbps) | 2.4 µs |
| MAC address table | 2000 entries |
| Packet buffer memory | 128 MB |
| Switching capacity | 10 Gbit/s |
Design
| Housing material | Metal |
| LED indicators | Activity/Link/PoE/Power |
| Product colour | Black |
| Rack mounting | No |
| Reset button | Yes |
| Wall mountable | Yes |
Logistics data
| Master (outer) case gross weight | 8520 g |
| Master (outer) case height | 30.6 cm |
| Master (outer) case length | 46.9 cm |
| Master (outer) case width | 23.7 cm |
| Products per master (outer) case | 6 pc(s) |
Management features
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Auto-sensing | Yes |
| Cable length detection | Yes |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Full duplex | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
Operational conditions
| Heat dissipation | 304 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -20 - 70 °C |
Packaging content
| Manual | Yes |
Performance
| Mean time between failures (MTBF) | 6710127 h |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Power
| DC input voltage | 54 V |
| Input current | 1.66 A |
| Power consumption (max) | 88.89 W |
| Power consumption (typical) | 2.89 W |
| Power source | DC |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 83 W |
Vendor information
| Brand Name | Netgear |
| Warranty | 1 |
Product Details
40 Items
New
Data sheet
- Auto MDI/MDI-X
- Yes
- Reset button
- Yes
- Heat dissipation
- 304 BTU/h
- an der Wand montierbar
- Yes
- Jumbo-Rahmen
- 9216
- MAC-Adresstabelle
- 2000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Gestellmontage
- No
- Schaltertyp
- Unmanaged
- Kupfer-Ethernet-Verkabelungstechnologie
- 1000BASE-T/100BASE-TX/10BASE-T
- Netzwerkstandards
- IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
- Anzahl Gigabit Ethernet (Kupfer) Ports
- 5
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 4
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Anzahl der Power over Ethernet Plus (PoE+) Ports
- 4
- Gesamtbudget für Power over Ethernet (PoE)
- 83 W
- Stromversorgung über Ethernet (PoE)
- Yes
- Quality of Service (QoS)-Unterstützung
- Yes
- Paketpufferspeicher
- 128 MB
- Kabellängenerkennung
- Yes
- Weiterleitungstarif
- 1.448 Mpps
- Mean time between failures (MTBF)
- 6710127 h
- Breaking capacity
- 10 Gbit/s
- LED-Anzeigen
- Activity/Link/PoE/Power
- Handbuch
- Yes
- Zertifizierung
- CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, CB, CE/VD, CCC
- Stromverbrauch (typisch)
- 2.89 W
- Eingangsstrom
- 1.66 A
- Stecker
- DC-in jack
- Vollduplex
- Yes
- Produkte pro Master (Außen)-Case
- 6 Stück(e)
- Stromverbrauch (max.)
- 88.89 W
- 10G-Unterstützung
- No
- Gehäusematerial
- Metal
- DC-Eingangsspannung
- 54 V
- Energiequelle
- DC
- Brand Name
- Netgear
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -20 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 10 - 90 %
- Produktfarbe
- Black
- Automatische Erkennung
- Yes
- Master (äußere) Gehäusebreite
- 23.7 cm
- Master (äußere) Gehäusehöhe
- 30.6 cm
- Auto-Negotiation
- Yes
- Power over Ethernet (PoE)-Stromversorgung pro Port
- 30 W
- Master (äußere) Gehäuselänge
- 46.9 cm
- Bruttogewicht des (äußeren) Hauptkoffers
- 8520 g
- Anzahl der installierten SFP-Module
- 0
- Anzahl der installierten SFP+-Module
- 0
- Latenz (1 Gbit/s)
- 2.4 µs
Specific References
- UPC
- 606449164916
- EAN13
- 0606449164916
- MPN
- GS305PP-300EUS
