CBS220-24FP-4G-EU-RFB

Name: CBS220-24FP-4G-EU-RFB
Brand: Cisco
SKU: 1071400
Price: 742.8 CHF
Availability: BackOrder

Reference 1071400

Brand Cisco

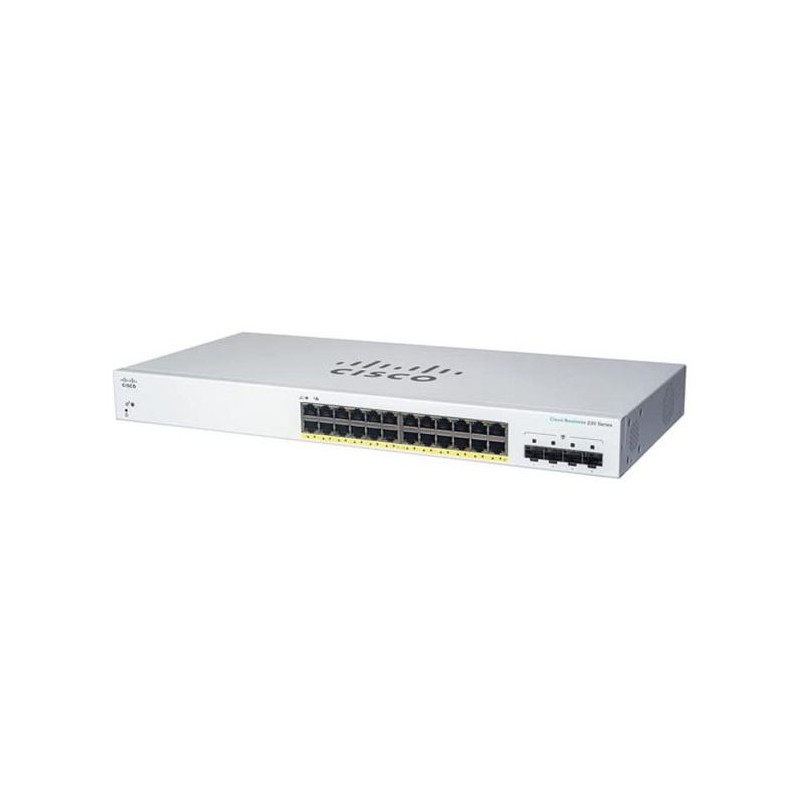

24-Port Managed L2 4x Gigabit SFP+ PoE+ 382W

CHF742.8

Tax included

CHF687.1 Tax excluded

Delayed delivery

Quantity

Will be ordered for you

Description
Product Details

Description

The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution.

With Cisco Business 220 Series switches, you can not only build an efficient and reliable network to connect the workforce, you can also create advanced solutions to deliver data, voice, and video services on a converged infrastructure. Get the best value for your money by improving the productivity of employees.

Cisco Business 220 Series provides capabilities that help you create business-class networks. These features deliver a solution to simplify the operation, increase uptime, and get your business better connected to employees, customers, and suppliers.

Specifications

Data transmission

Jumbo frames	9216
Jumbo frames support	Yes
MAC address table	8192 entries
Switching capacity	56 Gbit/s

Design

LED indicators	Yes
Number of fans	2 fan(s)
Product colour	White
Rack mounting	Yes
Reset button	Yes

Management features

Configuring Location Settings (CLI)	Yes
MIB support	Y
Quality of Service (QoS) support	Yes
Switch layer	L2
Switch type	Managed
System event log	Yes
Web-based management	Yes

Multicast features

Multicast support	Yes
Number of multicast groups filtered	256

Network

10G support	No
Auto MDI/MDI-X	Yes
Broadcast storm control	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
Networking standards	IEEE 802.1D/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Number of VLANs	256
Port mirroring	Yes
Spanning tree protocol	Yes
VLAN support	Yes

Operational conditions

Operating relative humidity (H-H)	10 - 90 %
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	10 - 90 %
Storage temperature (T-T)	-20 - 70 °C

Performance

Firmware upgradeable

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	4

Power

AC input frequency

50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Total Power over Ethernet (PoE) budget	382 W

Protocols

GARP VLAN Registration Protocol (GVRP)	Yes
Management protocols	SNMP

Security

Access Control List (ACL)	Yes
Access Control List (ACL) rules	512
BPDU filtering/protection	Yes
DHCP features	DHCP client
IGMP entries	256
IGMP snooping	Yes
Loop protection	Yes
MAC address filtering	Yes
Security algorithms	SSL/TLS
SSH/SSL support	Yes

Vendor information

Brand Name	Cisco
Warranty	1

Product Details

Reference 1071400

Availability date: 2025-12-15

Condition Refurbished

Data sheet

Auto MDI/MDI-X: Yes
Reset button: Yes
System event log: Yes
Broadcast storm control: Yes
Number of VLANs: 256
DHCP features: DHCP client
BPDU filtering/protection: Yes
Number of multicast groups filtered: 256
IGMP entries: 256
Jumbo-Rahmen: 9216
MAC-Adresstabelle: 8192 Eintragungen
Unterstützung für Jumbo-Frames: Yes
Anzahl Fans: 2 Lüfter
Gestellmontage: Yes
Ebene wechseln: L2
Schaltertyp: Managed
Webbasierte Verwaltung: Yes
Multicast-Unterstützung: Yes
Link-Aggregation: Yes
Netzwerkstandards: IEEE 802.1D/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Spanning-Tree-Protokoll: Yes
Unterstützung der Flusskontrolle: Yes
Grundlegende Anzahl von RJ-45-Ethernet-Ports: 24
Grundlegender Switching-RJ-45-Ethernet-Porttyp: Gigabit Ethernet (10/100/1000)
Gesamtbudget für Power over Ethernet (PoE): 382 W
Stromversorgung über Ethernet (PoE): Yes
Verwaltungsprotokolle: SNMP
IGMP-Schnüffelei: Yes
Zugriffskontrollliste (ACL): Yes
MAC-Adressfilterung: Yes
Firmware aktualisierbar: Yes
Quality of Service (QoS)-Unterstützung: Yes
MIB-Unterstützung: Y
Standorteinstellungen konfigurieren (CLI): Yes
Portspiegelung: Yes
SSH/SSL-Unterstützung: Yes
Schleifenschutz: Yes
Breaking capacity: 56 Gbit/s
LED-Anzeigen: Yes
AC-Eingangsfrequenz: 50 - 60 Hz
Sicherheitsalgorithmen: SSL/TLS
10G-Unterstützung: No
VLAN-Unterstützung: Yes
Brand Name: Cisco
Warranty: 1
Betriebstemperatur (TT): 0 - 50 °C
Lagertemperatur (TT): -20 - 70 °C
Relative Luftfeuchtigkeit bei Lagerung (HH): 10 - 90 %
Relative Luftfeuchtigkeit im Betrieb (HH): 10 - 90 %
Produktfarbe: White
Anzahl der SFP-Modulsteckplätze: 4
Anzahl der Power over Ethernet (PoE)-Anschlüsse: 24
Head-of-Line (HOL)-Blockierung: Yes
GARP VLAN-Registrierungsprotokoll (GVRP): Yes
Regeln der Zugriffskontrollliste (ACL): 512

Specific References

ISBN: 978-1-23456-789-0
MPN: CBS220-24FP-4G-EU-RFB
