Description

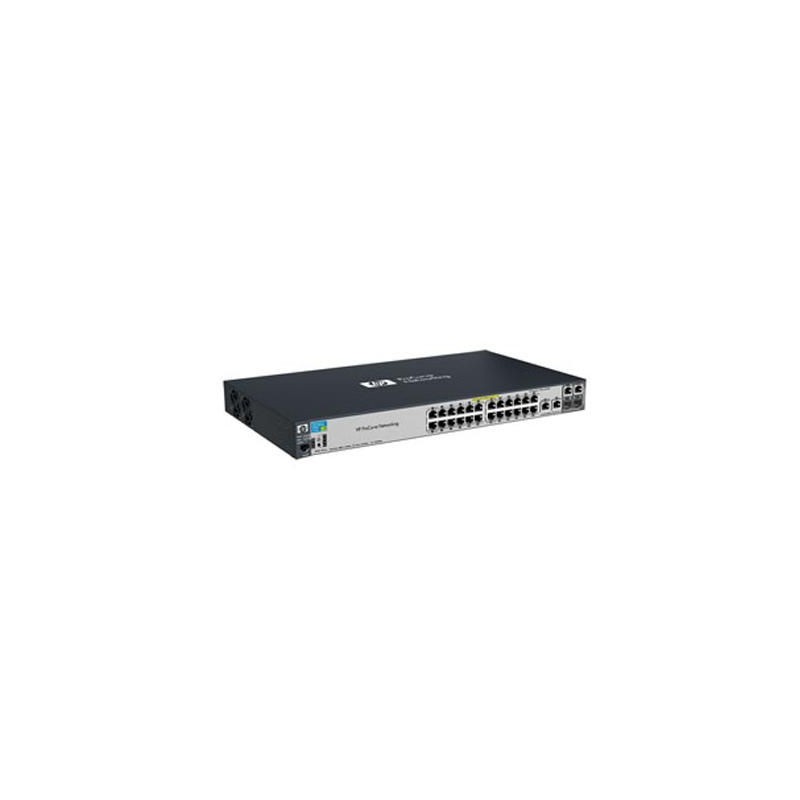

The HP E2520 Switch Series is ideally suited for small and medium businesses looking to deploy voice, video, or wireless solutions that require Power over Ethernet (PoE) connectivity. The series consists of four switches: the HP E2520-8-PoE, the HP E2520-24-PoE, the HP E2520-8G-PoE, and the HP E2520-24G-PoE Switch. The four models offer a choice of either Fast Ethernet or Gigabit Ethernet connectivity. All models also include support for dual-personality Gigabit Ethernet ports that can be used for either copper or fiber connectivity. All products are fully managed via SNMP, command-line interface (CLI), and graphical user interface (GUI) and offer a Layer 2 feature set. In addition, the products provide deployment flexibility with compact, quiet, and energy-efficient designs.
Quality of Service (QoS)
• Selectable queue configuration: increases performance and/or traffic reliability by selecting the number of queues that best meet the requirements of your network applications; switch will map 8 priorities to either 2 or 4 queues
Management
• Choice of management interfaces: Web graphical user interface (GUI): easy-to-use graphical interface allows configuration of the switch from any Web browser. Command-line interface (CLI): robust command-line interface provides advanced configuration and diagnostics. Simple Network Management Protocol (SNMPv2c/SNMPv3): allows switch to be managed with a variety of third-party network management applications.
Connectivity
• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all ports
Performance
• Switch on a chip: provides highly integrated, high-performance switch design with a non-blocking architecture
Resiliency and high availability
• Port trunking and link aggregation: Trunking: supports up to eight links per trunk to increase bandwidth and create redundant connections. IEEE 802.3ad Link Aggregation Protocol (LACP): eases configuration of trunks through automatic configuration.
Layer 2 switching
• VLAN support and tagging: supports the IEEE 802.1Q (4,094 VLAN IDs) and up to 256 port-based VLANs simultaneously
Security
• Manager and operator privilege levels: enables read-only (operator) and read-write (manager) access on management interfaces
Quality of Service (QoS)
• Selectable queue configuration: increases performance and/or traffic reliability by selecting the number of queues that best meet the requirements of your network applications; switch will map 8 priorities to either 2 or 4 queues
Management
• Choice of management interfaces: Web graphical user interface (GUI): easy-to-use graphical interface allows configuration of the switch from any Web browser. Command-line interface (CLI): robust command-line interface provides advanced configuration and diagnostics. Simple Network Management Protocol (SNMPv2c/SNMPv3): allows switch to be managed with a variety of third-party network management applications.
Connectivity
• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all ports
Performance
• Switch on a chip: provides highly integrated, high-performance switch design with a non-blocking architecture
Resiliency and high availability
• Port trunking and link aggregation: Trunking: supports up to eight links per trunk to increase bandwidth and create redundant connections. IEEE 802.3ad Link Aggregation Protocol (LACP): eases configuration of trunks through automatic configuration.
Layer 2 switching
• VLAN support and tagging: supports the IEEE 802.1Q (4,094 VLAN IDs) and up to 256 port-based VLANs simultaneously
Security
• Manager and operator privilege levels: enables read-only (operator) and read-write (manager) access on management interfaces
Specifications
Data transmission
| MAC address table | 8000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Number of queues | 4 |
| Packet buffer memory | 0.384 MB |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 12.8 Gbit/s |
| Throughput | 9.5 Mpps |
Design
| Electromagnetic compatibility | FCC, VCCI, EN, CISPR 22, AS/NZS, IEC/EN |
| Safety | cUL, CE, UL, CAN/CSA, EN, AS/NZS, IEC |
Management features
| MIB support | MIB II, Bridge MIB, RMONv2 MIB, SMON MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
Multicast features
| Multicast support | Yes |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 1000BASE-T/1000BASE-TX/100BASE-TX/10BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3u/IEEE 802.3x |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
Operational conditions
| Heat dissipation | 208 BTU/h |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 15 - 95 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 15 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
Other features
| Acoustic pressure emissions | 36 dB |
| Connectivity technology | Wired |
| Dimensions (W x D x H) (imperial) | 17.44 x 9.69 x 1.75 " |
| Dimensions (WxDxH) | 246.1 x 443 x 44.5 mm |
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Latency | 1.9µs/1.5µs |
| Networking features | Gigabit Ethernet |
| Weight (imperial) | 7.1 lbs |
| Wi-Fi | No |
Performance
| Built-in processor | Yes |
| Flash memory | 32 MB |
| Internal memory | 128 MB |
| Memory type | DDR2-SDRAM |
| Noise level | 27.9 dB |
| Processor frequency | 266 MHz |
| Processor model | PowerPC MPC8313 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Combo SFP ports quantity | 2 |
| Console port | RS-232 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
Power
| Input current | 1.6 - 3.3 A |
| Power consumption (typical) | 257 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
Protocols
| Management protocols | IGMPv3, LLDP, SNMPv1/v2c/v3 |
| Supported network protocols | IPv6, UDP, TFTP, ICMP, TCP, ARP, Telnet, BOOTP, SNTPv4 |
Security
| DHCP features | DHCP client/DHCP server |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS/SSH/SSL/TLS |
| SSH/SSL support | Yes |
| Static port security | Yes |
Vendor information
| Brand Name | Hewlett Packard Enterprise |
| Warranty | 1 |
Product Details
J9138A
5 Items
Refurbished
Data sheet
- Auto MDI/MDI-X
- Yes
- Flash memory
- 32 MB
- System event log
- Yes
- Safety
- cUL, CE, UL, CAN/CSA, EN, AS/NZS, IEC
- Broadcast storm control
- Yes
- DHCP features
- DHCP client/DHCP server
- Electromagnetic compatibility
- FCC, VCCI, EN, CISPR 22, AS/NZS, IEC/EN
- Heat dissipation
- 208 BTU/h
- Networking features
- Gigabit Ethernet
- Latency
- 1.9µs/1.5µs
- Anzahl der Warteschlangen
- 4
- MAC-Adresstabelle
- 8000 Eintragungen
- Ebene wechseln
- L2
- Schaltertyp
- Managed
- Webbasierte Verwaltung
- Yes
- Multicast-Unterstützung
- Yes
- Kupfer-Ethernet-Verkabelungstechnologie
- 1000BASE-T/1000BASE-TX/100BASE-TX/10BASE-T
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3u/IEEE 802.3x
- Spanning-Tree-Protokoll
- Yes
- Unterstützung der Flusskontrolle
- Yes
- Anzahl Combo-SFP-Ports
- 2
- Anzahl Gigabit Ethernet (Kupfer) Ports
- 2
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 24
- Konsolenport
- RS-232
- Stromversorgung über Ethernet (PoE)
- Yes
- Verwaltungsprotokolle
- IGMPv3, LLDP, SNMPv1/v2c/v3
- IGMP-Schnüffelei
- Yes
- Prozessormodell
- PowerPC MPC8313
- Prozessorfrequenz
- 266 MHz
- MAC-Adressfilterung
- Yes
- Maximum Datenübertragungsrate
- 1 Gbit/s
- Quality of Service (QoS)-Unterstützung
- Yes
- Durchsatz
- 9.5 Mpps
- Paketpufferspeicher
- 0.384 MB
- MIB-Unterstützung
- MIB II, Bridge MIB, RMONv2 MIB, SMON MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB
- Portspiegelung
- Yes
- SSH/SSL-Unterstützung
- Yes
- Dimensions (WxDxH)
- 246.1 x 443 x 44.5 mm
- Eingangsspannung
- 100 - 240 V
- Breaking capacity
- 12.8 Gbit/s
- Wi-Fi
- No
- Eingangsfrequenz
- 50/60 Hz
- Geräuschpegel
- 27.9 dB
- Unterstützte Netzwerkprotokolle
- IPv6, UDP, TFTP, ICMP, TCP, ARP, Telnet, BOOTP, SNTPv4
- Konnektivitätstechnologie
- Wired
- Stromverbrauch (typisch)
- 257 W
- Sicherheitsalgorithmen
- 802.1x RADIUS/SSH/SSL/TLS
- Eingangsstrom
- 1.6 - 3.3 A
- Speichertyp
- DDR2-SDRAM
- Abmessungen (B x T x H) (britisch)
- 17.44 x 9.69 x 1.75 "
- Vollduplex
- Yes
- Eingebauter Prozessor
- Yes
- Gewicht (imperial)
- 7.1 Pfund
- Betriebshöhe
- 0 - 3000 m
- 10G-Unterstützung
- No
- Anzahl der SFP/SFP+-Steckplätze
- 2
- Brand Name
- Hewlett Packard Enterprise
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 45 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 15 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 15 - 95 %
- Interner Speicher
- 128 MB
- Unterstützte Datenübertragungsraten
- 10/100 Mbps
- Schalldruckemissionen
- 36 dB
- Statische Hafensicherheit
- Yes
Specific References
- ISBN
- 978-1-23456-789-0
- EAN13
- 5712505364246
- MPN
- RP000344954
