Description

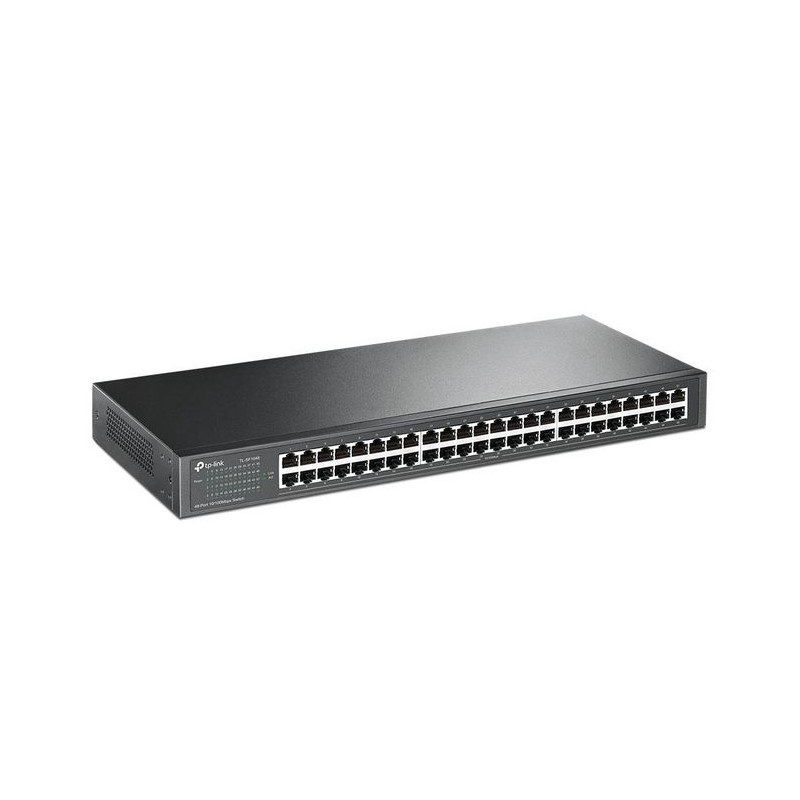

48-Port 10/100Mbps Rackmount Switch
- 48 10/100Mbps RJ45 ports
- Innovative energy-efficient technology saves power up to 50%
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
What This Product Does
The TL-SF1048 10/100Mbps Switch is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. All 48 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-eff cient technology, TL-SF1048 can save up to 50%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SF1048 10/100Mbps Switch features the latest innovative energy-effcient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
Featuring non-blocking switching architecture，TL-SF1048 forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1048 work reliably.
Easy to Use
The auto features of this Fast Ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.
- 48 10/100Mbps RJ45 ports
- Innovative energy-efficient technology saves power up to 50%
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
What This Product Does
The TL-SF1048 10/100Mbps Switch is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. All 48 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-eff cient technology, TL-SF1048 can save up to 50%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SF1048 10/100Mbps Switch features the latest innovative energy-effcient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
Featuring non-blocking switching architecture，TL-SF1048 forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1048 work reliably.
Easy to Use
The auto features of this Fast Ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.
- 48 10/100Mbps RJ45 ports
- Green Ethernet technology saves power consumption
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
Specifications
Data transmission
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 96 Gbit/s |
| Throughput | 7.14 Mpps |
Design
| Compatible products | FCC, CE |
| Form factor | 1U |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
Management features
| Switch type | Unmanaged |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Copper ethernet cabling technology | 100BASE-TX/10BASE-T |
| Flow control support | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Other features
| Bandwidth | 9.6 Gbit/s |
| Connectivity LEDs | Y |
| Dimensions (W x D x H) (imperial) | 17.3 x 10.2 x 1.7 " |
| Dimensions (WxDxH) | 440 x 260 x 44 mm |
| Size (imperial) | 19 " |
Packaging content
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Console port | RJ-45 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 9.9 W |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Protocols
| Supported network protocols | CSMA/CD, TCP/IP |
Vendor information
| Brand Name | TP-Link |
| Homepage | http://www.tplink.com |
| Warranty | 3 |
Product Details
Z000053
31 Items
New
Data sheet
- Auto MDI/MDI-X
- Yes
- Jumbo-Rahmen
- 10000
- MAC-Adresstabelle
- 8000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Gestellmontage
- Yes
- Schaltertyp
- Unmanaged
- Kupfer-Ethernet-Verkabelungstechnologie
- 100BASE-TX/10BASE-T
- Netzwerkstandards
- IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
- Unterstützung der Flusskontrolle
- Yes
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 48
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Fast Ethernet (10/100)
- Konsolenport
- RJ-45
- Stromversorgung über Ethernet (PoE)
- No
- Inklusive Netzteil
- Yes
- Schnellstartanleitung
- Yes
- Durchsatz
- 7.14 Mpps
- Speichern und weiterleiten
- Yes
- Rack-Montage-Kit
- Yes
- Dimensions (WxDxH)
- 440 x 260 x 44 mm
- Homepage
- http://www.tplink.com
- Breaking capacity
- 96 Gbit/s
- Formfaktor
- 1U
- LED-Anzeigen
- Yes
- Kabel enthalten
- AC
- Unterstützte Netzwerkprotokolle
- CSMA/CD, TCP/IP
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Stromverbrauch (typisch)
- 9.9 W
- Grösse (Zoll)
- 19 "
- Stecker
- DC-in jack
- Bandbreite
- 9.6 Gbit/s
- Abmessungen (B x T x H) (britisch)
- 17.3 x 10.2 x 1.7 "
- 10G-Unterstützung
- No
- Brand Name
- TP-Link
- Warranty
- 3
- Betriebstemperatur (TT)
- 32 - 104 °F
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 90 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 10 - 90 %
- Kompatible Produkte
- FCC, CE
- Produktfarbe
- Black
- Konnektivitäts-LEDs
- Y
- Unterstützte Datenübertragungsraten
- 10/100 Mbps
- Auto-Negotiation
- Yes
- Anzahl der installierten SFP-Module
- 0
- Anzahl der installierten SFP+-Module
- 0
Specific References
- UPC
- 088020611253
- EAN13
- 0088020611253
- MPN
- TL-SF1048
