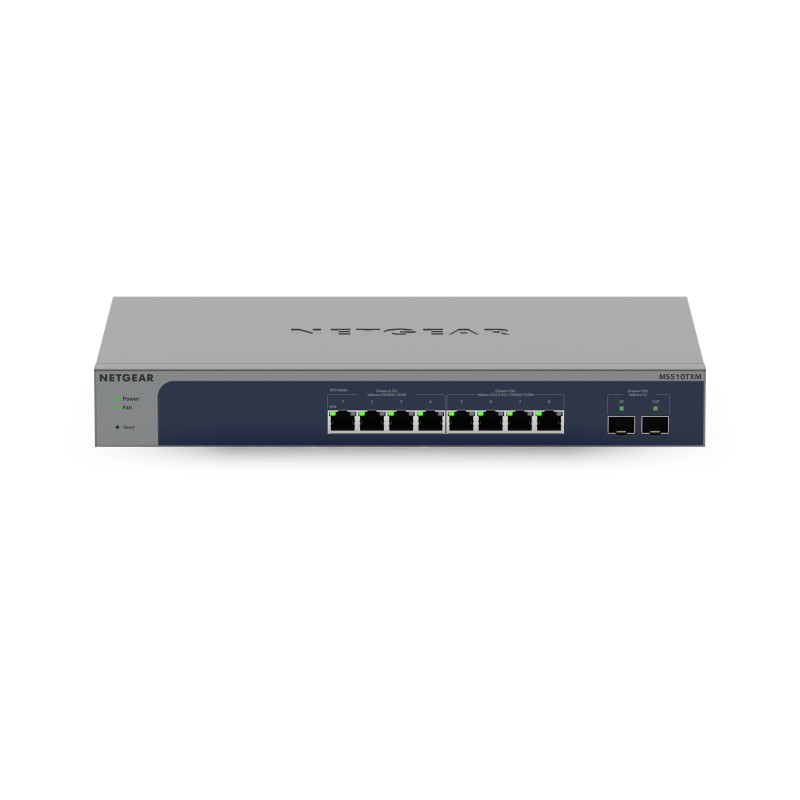

MS510TXM-100EUS

Data sheet

Product color

Gray

Weight

4.59 lbs (2.08 kg)

Harmonized System (HS) code

85176990

Internal memory

256 MB

Width

13" (330 mm)

Height

1.69" (43 mm)

Power source type

AC

Depth

8.11" (206 mm)

LED indicators

Activity, Fan fail, Link, Power, Speed

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

User guide

Yes

Cables included

AC

Number of fans

2 fan(s)

Built-in processor

Yes

Networking standards

IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x

Power consumption (max)

47 W

Flash memory

64 MB

Mean time between failures (MTBF)

1059519 h

Operating altitude

0 - 118110.2" (0 - 3000 m)

Non-operating altitude

0 - 118110.2" (0 - 3000 m)

Password protection

Yes

Web-based management

Yes

Quality of Service (QoS) support

Yes

Switch type

Managed

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

10G support

Yes

Switching capacity

140 Gbit/s

Jumbo frames support

Yes

Jumbo frames

10000

Packet buffer memory

2 MB

System event log

Yes

Firmware upgradeable

Yes

Power over Ethernet (PoE)

No

VLAN support

Yes

Access Control List (ACL)

Yes

Rack mounting

Yes

Switch layer

L2+

Broadcast storm control

Yes

Number of VLANs

256

MAC address table

32000 entries

DHCP features

DHCPv6 snooping

Queue scheduling algorithms

WRR+SP

Multicast support

Yes

Heat dissipation

160.458 BTU/h

SFP+ module slots quantity

2

Port mirroring

Yes

Number of queues

8

IGMP snooping

Yes

Noise level

25 dB

Power supply included

Yes

Cloud-managed

Yes

Number of multicast groups filtered

256

Rack rails

Yes

Processor frequency

1000 MHz

Specific References

UPC

606449152364

MPN

MS510TXM-100EUS
