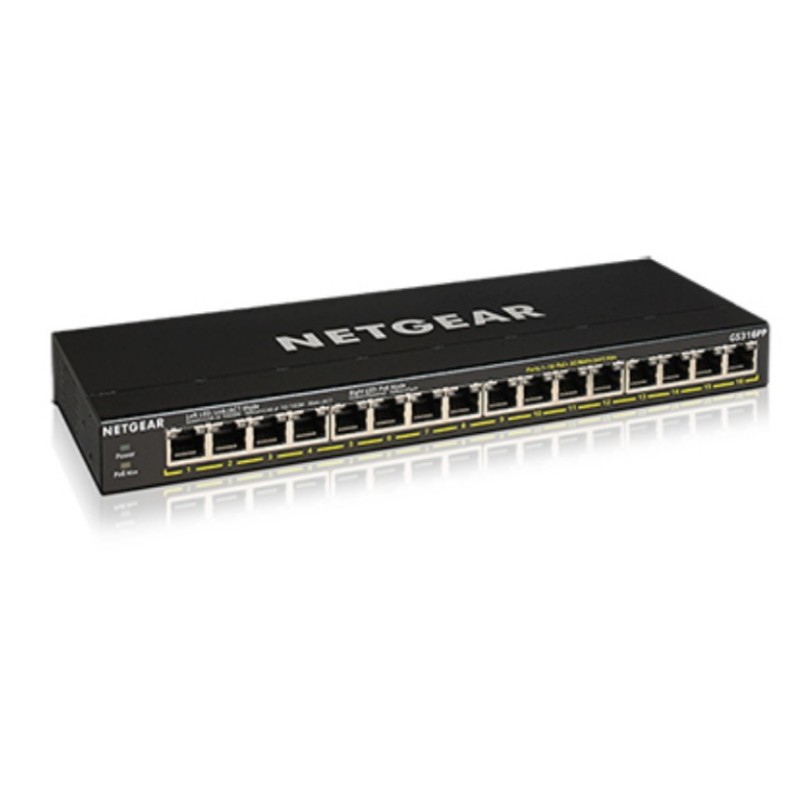

GS316PP-100EUS

Data sheet

Product color

Black

Weight

31 oz (880 g)

Harmonized System (HS) code

85176990

Width

11.3" (286 mm)

Height

1.06" (27 mm)

Certification

CE, FCC Part A, IC A, RCM, VCCI, BSMI, KC, CB, CE LVD

Depth

4.02" (102 mm)

LED indicators

Activity, Link, PoE, Power, Speed

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Auto MDI/MDI-X

Yes

Input current

3.7 A

Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Housing material

Metal

Power consumption (max)

195.9 W

Mean time between failures (MTBF)

2362192 h

Operating altitude

0 - 118110.2" (0 - 3000 m)

Wall mountable

Yes

Quality of Service (QoS) support

Yes

Switch type

Unmanaged

Basic switching RJ-45 Ethernet ports quantity

16

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

DC-in jack

10G support

No

Full duplex

Yes

Switching capacity

32 Gbit/s

Jumbo frames support

Yes

Jumbo frames

9216

Packet forwarding rate (1 Gbps)

1448000 pps

Packet buffer memory

1 MB

Power over Ethernet (PoE)

Yes

Rack mounting

No

DC input voltage

54 V

Flow control support

Yes

Auto-negotiation

Yes

MAC address table

4000 entries

Queue scheduling algorithms

Weighted Round Robin (WRR)

Power over Ethernet plus (PoE+) ports quantity

16

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

183 W

Heat dissipation

669.9 BTU/h

Auto-sensing

Yes

Latency (1 Gbps)

3.7 µs

Specific References

UPC

606449146912

EAN13

0606449146912

MPN

GS316PP-100EUS
