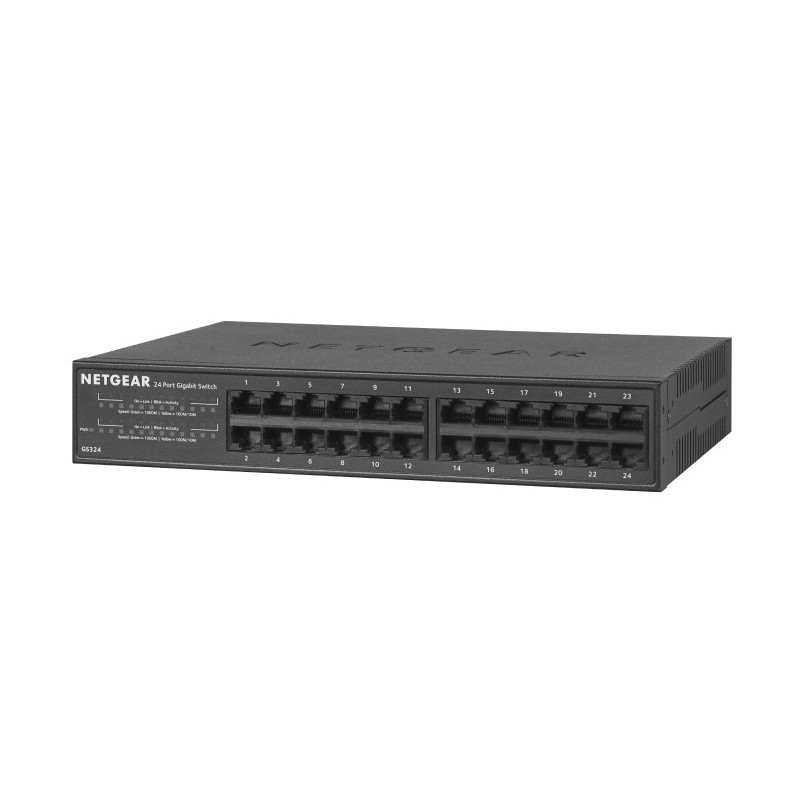

GS324-200EUS

Data sheet

Product color

Black

Weight

2.89 lbs (1.31 kg)

Harmonized System (HS) code

85176990

AC input frequency

50 - 60 Hz

Width

9.92" (252 mm)

Height

1.73" (44 mm)

AC input voltage

110 - 240 V

Certification

CE Mark, FCC 15 A, IC A, RCM, CCC, VCCI, KC, CB, CE LVD

Depth

7.09" (180 mm)

LED indicators

Activity, Link, Power, Speed

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 95%

Cables included

AC

Auto MDI/MDI-X

Yes

Input current

1 A

Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Manual

Yes

Housing material

Metal

Power consumption (max)

11.1 W

Mean time between failures (MTBF)

620798 h

Operating altitude

0 - 118110.2" (0 - 3000 m)

Wall mountable

Yes

Quality of Service (QoS) support

Yes

Switch type

Unmanaged

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Switching capacity

48 Gbit/s

Jumbo frames support

Yes

Jumbo frames

9216

Packet forwarding rate (1 Gbps)

1448000 pps

Packet buffer memory

0.512 MB

Power over Ethernet (PoE)

No

Cable types supported

Cat5

Rack mounting

Yes

MAC address table

8000 entries

Heat dissipation

37.96 BTU/h

Power supply included

Yes

Fanless

Yes

Auto-sensing

Yes

Latency (1 Gbps)

4.7 µs

Specific References

UPC

606449152012

EAN13

0606449152012

MPN

GS324-200EUS
