Description
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White

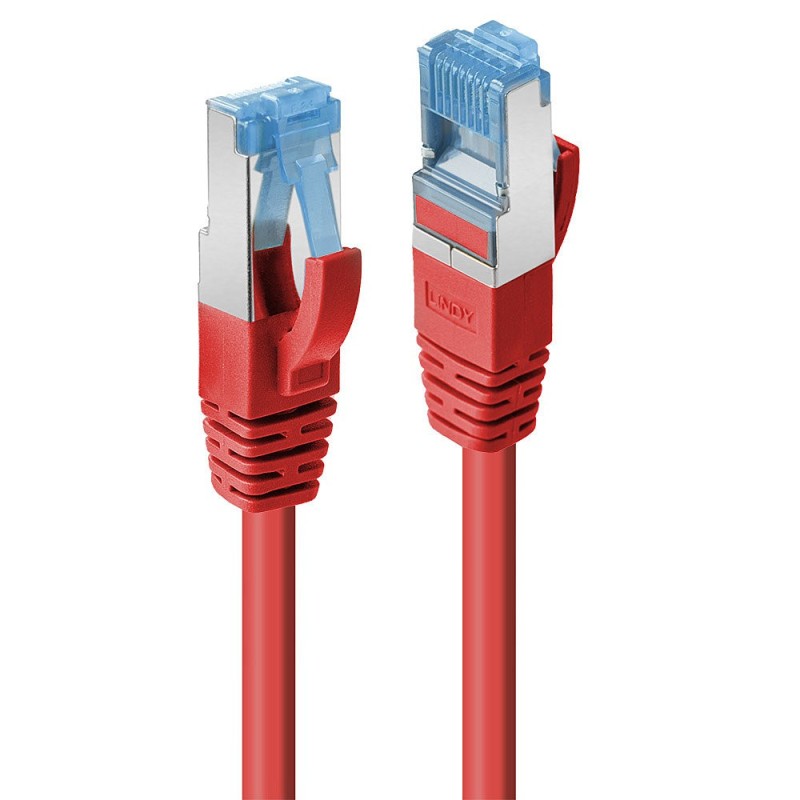

Lindy 47162. Cable length: 39.4" (1 m), Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel/Gold, Data transfer rate: 1000 Mbit/s, Product color: Red
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White
Lindy 47162. Cable length: 39.4" (1 m), Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel/Gold, Data transfer rate: 1000 Mbit/s, Product color: Red
| Cable length | 39.4" (1 m) |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Product color | Red |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel/Gold |
| Connector shielding | Yes |
| Connector shield material | Aluminum |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| Cable class | E |
| Cabling technology | 10/100/1000Base-T(X) |
| AWG wire size | 27 |
| Data transfer rate | 1000 Mbit/s |
| Frequency | 500 MHz |
| Bend radius (min) | 2.83" (7.2 cm) |
| Plug and Play | Yes |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Certification | RoHS, REACH, UL |
| Outer diameter | 0.236" (6 mm) |
| Connector 1 dimensions (WxDxH) | 0.457 x 0.846 x 0.327" (11.6 x 21.5 x 8.3 mm) |
| Connector 2 dimensions (WxDxH) | 0.457 x 0.846 x 0.327" (11.6 x 21.5 x 8.3 mm) |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Harmonized System (HS) code | 84733080 |
Product Details
813225
22 Items
New
Data sheet
- Product color
- Red
- Quantity per pack
- 1 pc(s)
- Package type
- Polybag
- Cable length
- 39.4" (1 m)
- Connector 1
- RJ-45
- Connector 2
- RJ-45
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Harmonized System (HS) code
- 84733080
- Plug and Play
- Yes
- Data transfer rate
- 1000 Mbit/s
- Certification
- RoHS, REACH, UL
- Operating temperature (T-T)
- -10 - 60 °C
- Storage temperature (T-T)
- -20 - 75 °C
- Cabling technology
- 10/100/1000Base-T(X)
- Connector contacts plating
- Nickel/Gold
- Cable shielding
- S/FTP (S-STP)
- AWG wire size
- 27
- Bend radius (min)
- 2.83" (7.2 cm)
- Conductor material
- Copper
- Connector 1 dimensions (WxDxH)
- 0.457 x 0.846 x 0.327" (11.6 x 21.5 x 8.3 mm)
- Connector 2 dimensions (WxDxH)
- 0.457 x 0.846 x 0.327" (11.6 x 21.5 x 8.3 mm)
- Cable standard
- Cat6a
- Frequency
- 500 MHz
- Connector shielding
- Yes
- Connector shield material
- Aluminum
- Cable class
- E
- Outer diameter
- 0.236" (6 mm)
- Jacket material
- Low smoke zero halogen (LSZH)
Specific References
- EAN13
- 4002888471626
- MPN
- 47162
