CHF234.6
tax incl.
CHF217.0
tax excl.
In stock
CHF104.4
tax incl.
CHF96.6
tax excl.
In stock
Description
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White
Lindy 47148. Cable length: 59.1" (1.5 m), Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel/Gold, Data transfer rate: 1000 Mbit/s, Product color: Blue
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White
Lindy 47148. Cable length: 59.1" (1.5 m), Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel/Gold, Data transfer rate: 1000 Mbit/s, Product color: Blue
| Cable length | 59.1" (1.5 m) |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Product color | Blue |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel/Gold |
| Connector shielding | Yes |
| Connector shield material | Aluminum |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| Cable class | Ea |
| Cabling technology | 10/100/1000Base-T(X) |
| AWG wire size | 27 |
| Data transfer rate | 1000 Mbit/s |
| Frequency | 500 MHz |
| Bend radius (min) | 2.83" (7.2 cm) |
| Plug and Play | Yes |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Certification | RoHS, REACH, UL |
| Outer diameter | 0.236" (6 mm) |
| Connector 1 dimensions (WxDxH) | 0.457 x 0.846 x 0.327" (11.6 x 21.5 x 8.3 mm) |
| Connector 2 dimensions (WxDxH) | 0.457 x 0.846 x 0.327" (11.6 x 21.5 x 8.3 mm) |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Harmonized System (HS) code | 84733080 |
Product Details
323 Items
New
Data sheet
- Product color
- Blue
- Quantity per pack
- 1 pc(s)
- Package type
- Polybag
- Cable length
- 59.1" (1.5 m)
- Connector 1
- RJ-45
- Connector 2
- RJ-45
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Harmonized System (HS) code
- 84733080
- Plug and Play
- Yes
- Data transfer rate
- 1000 Mbit/s
- Certification
- RoHS, REACH, UL
- Operating temperature (T-T)
- -10 - 60 °C
- Storage temperature (T-T)
- -20 - 75 °C
- Cabling technology
- 10/100/1000Base-T(X)
- Connector contacts plating
- Nickel/Gold
- Cable shielding
- S/FTP (S-STP)
- AWG wire size
- 27
- Bend radius (min)
- 2.83" (7.2 cm)
- Conductor material
- Copper
- Connector 1 dimensions (WxDxH)
- 0.457 x 0.846 x 0.327" (11.6 x 21.5 x 8.3 mm)
- Connector 2 dimensions (WxDxH)
- 0.457 x 0.846 x 0.327" (11.6 x 21.5 x 8.3 mm)
- Cable standard
- Cat6a
- Frequency
- 500 MHz
- Connector shielding
- Yes
- Connector shield material
- Aluminum
- Cable class
- Ea
- Outer diameter
- 0.236" (6 mm)
- Jacket material
- Low smoke zero halogen (LSZH)
Specific References
- EAN13
- 4002888471480
- MPN
- 47148
16 other products in the same category:
Reference: SNAGLESS
Brand: MicroConnect
V-UTP605R-SLIM
Microconnect V-UTP605R-SLIM, 196.9" (5 m), Cat6, U/UTP (UTP), RJ-45, RJ-45, Red
CHF15.6
tax incl.
CHF14.4
tax excl.
In stock
Reference: SNAGLESS
Brand: MicroConnect
MC-SFTP6A075B
Microconnect MC-SFTP6A075B, 295.3" (7.5 m), Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Blue
CHF15.6
tax incl.
CHF14.4
tax excl.
In stock
CHF11.7
tax incl.
CHF10.8
tax excl.
In stock
Reference: SNAGLESS
Brand: MicroConnect
SSTP60025B
Microconnect SSTP60025B, 9.84" (0.25 m), Cat6, S/FTP (S-STP), RJ-45, RJ-45, Blue
CHF11.7
tax incl.
CHF10.8
tax excl.
In stock
Reference: B-UTP602
Brand: LOGON PROFESSIONAL
TCU66A020I
PATCH CABLE CAT6A - U/UTP - LSOH - 2M IVORY
CHF13.3
tax incl.
CHF12.3
tax excl.
In stock
CHF15.9
tax incl.
CHF14.7
tax excl.
In stock
Reference: SNAGLESS
Brand: MicroConnect
SSTP6015B
Microconnect SSTP6015B, 59.1" (1.5 m), Cat6, S/FTP (S-STP), RJ-45, RJ-45, Blue
CHF12.6
tax incl.
CHF11.7
tax excl.
In stock
Reference: SNAGLESS
Brand: MicroConnect
MC-UTP6A003B
Microconnect MC-UTP6A003B, 11.8" (0.3 m), Cat6a, U/UTP (UTP), RJ-45, RJ-45, Blue
CHF12.6
tax incl.
CHF11.7
tax excl.
In stock
Reference: W128317911
Brand: LOGON PROFESSIONAL
TCR66SS015B
PATCH CABLE S/FTP PIMF 1,5M - CAT6 - BLUE
CHF13.0
tax incl.
CHF12.0
tax excl.
In stock
Reference: SNAGLESS
Brand: MicroConnect
V-UTP6A01S-SLIM
Microconnect V-UTP6A01S-SLIM, 39.4" (1 m), Cat6a, U/UTP (UTP), RJ-45, RJ-45, Black
CHF11.7
tax incl.
CHF10.8
tax excl.
In stock
Reference: V-UTP620VP
Brand: LOGON PROFESSIONAL
TCU66A200I
PATCH CABLE CAT6A - U/UTP - LSOH - 20M IVORY
CHF29.6
tax incl.
CHF27.4
tax excl.
In stock
CHF62.6
tax incl.
CHF57.9
tax excl.
In stock
CHF17.5
tax incl.
CHF16.2
tax excl.
In stock
CHF13.4
tax incl.
CHF12.4
tax excl.
In stock

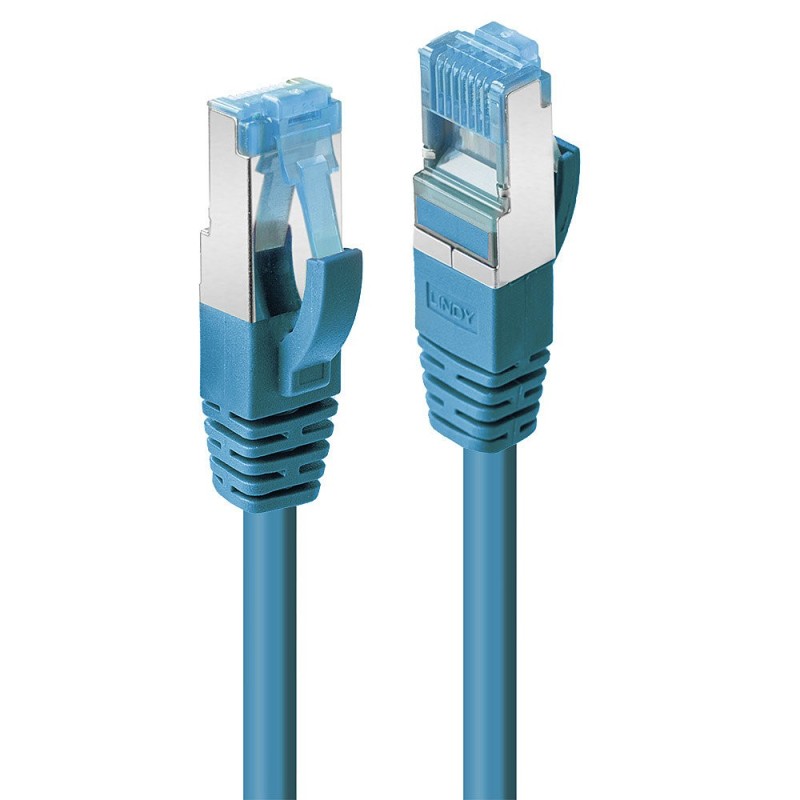

Lindy 47148, 59.1" (1.5 m), Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Blue
