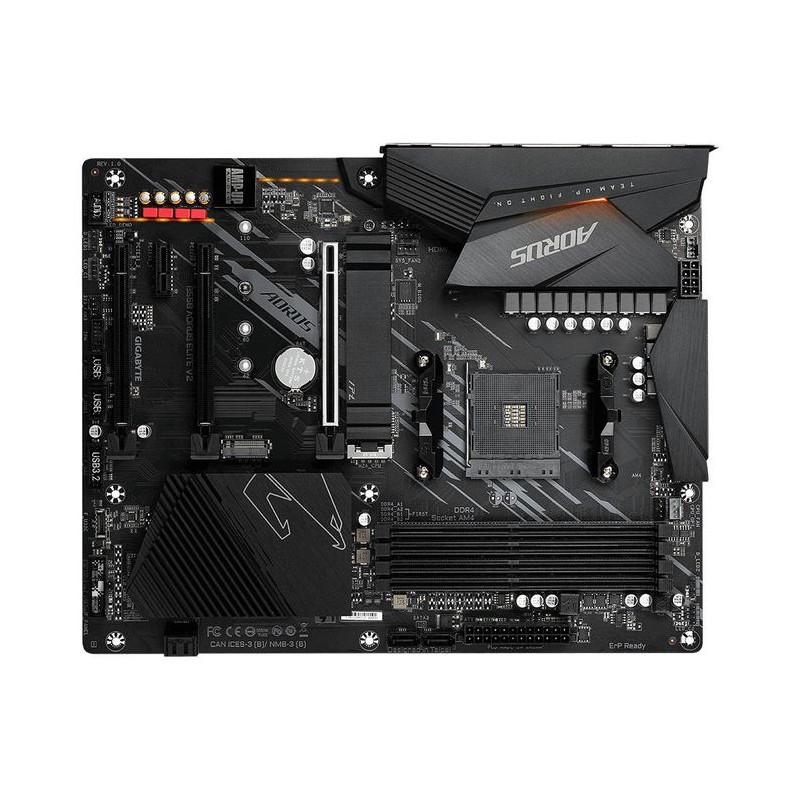

GA-B550-AORUS_ELITE_V2
B550 AORUS ELITE V2 Motherboard - AMD Ryzen 5000 CPUs, 12+2 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 12+2 Phases Digital Twin Power Design with 50A DrMOS
- Advanced Thermal Design with Enlarged Surface Heatsinks
- Ultra Durable™ PCIe 4.0 x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
- AMP-UP Audio with ALC1200 and WIMA Capacitors
- Blazing Fast 2.5GbE LAN with Bandwidth Management
- Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Pre-installed IO Shield for Easy and Quick Installation
Specifications
Battery
| Battery weight | 3 g |
| Number of battery cells | 1 |
BIOS
| ACPI version | 5.0 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Expansion slots
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| 2nd M.2 largest key size | 22110 |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 slots | 2 |
Features
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Cooling type | Passive |
| Motherboard chipset | AMD B550 |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Power source type | ATX |
| Product colour | Black |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
Graphics
| DirectX version | 12.0 |
| Graphics card family | AMD |
| HDCP | Yes |
| Maximum resolution | 5120 x 2880 pixels |
| Parallel processing technology support | Not supported |
Internal I/O
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 3 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of Parallel ATA connectors | 0 |
| Number of RGB LED pin headers | 5 |
| Number of SATA II connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of water pump connectors | 4 |
| RGB LED pin header | Yes |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
Logistics data
| Products per shipping (inner) case | 1 pc(s) |
Memory
| ECC | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 128 GB |
| Maximum internal memory per slot | 32 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Non-ECC | Yes |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 4733 MHz |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz |
| Supported memory module capacities | 12GB/16GB/1GB/2GB/32GB/4GB/8GB |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
Network
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | No |
Other features
| Weight | 1120 g |
Packaging content
| Batteries included | Yes |
| Bundled software | LAN bandwidth management software/Norton® Internet Security (OEM version) |
| Screws included | Yes |
Processor
| Compatible processor series | AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series |
| Maximum internal memory supported by processor | 128 GB |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Supported processor sockets | Socket AM4 |
Rear panel I/O ports
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 0 |
| eSATA ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 0 |
| HDMI ports quantity | 0 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 0 |
| S/PDIF out port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Storage controllers
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2/SATA III |
| Supported storage drive types | HDD & SSD |
Technical details
| Warranty period | 3 year(s) |
Vendor information
| Brand Name | Gigabyte |
| Warranty | 1 |
Product Details
3 Items
New
Data sheet
- ECC
- Yes
- Battery weight
- 0.106 oz (3 g)
- HDCP
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Number of M.2 (M) slots
- 2
- BIOS type
- UEFI AMI
- ACPI version
- 5.0
- S/PDIF out port
- Yes
- TPM connector
- Yes
- Audio chip
- Realtek ALC897
- BIOS memory size
- 128 Mbit
- RGB LED pin header
- Yes
- Batterien enthalten
- Yes
- Anzahl der HDMI-Anschlüsse
- 0
- Anzahl USB 3.2 Gen 1 (3.1 Gen 1) Typ-A Anschlüsse
- 3
- Anzahl USB 3.2 Gen 1 (3.1 Gen 1) Typ-C Anschlüsse
- 0
- Ethernet-LAN-Anschlüsse (RJ-45)
- 1
- DisplayPort-Version
- 1.4
- Unterstützung der Parallelverarbeitungstechnologie
- Not supported
- Anzahl der USB 2.0-Anschlüsse
- 2
- Ethernet-Schnittstellentyp
- 2.5 Gigabit Ethernet
- Line-in
- Yes
- Warranty period
- 3 Jahr(e)
- Wi-Fi
- No
- Kühltyp
- Passive
- Ethernet-LAN
- Yes
- Stromquellentyp
- ATX
- Maximum Auflösung
- 5120 x 2880 Pixel
- Gewicht
- 1120 g
- Mikrofon rein
- Yes
- Kompatible Prozessorserien
- AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
- Maximum interner Speicher, der vom Prozessor unterstützt wird
- 128 GB
- Speicherkanäle
- Dual-channel
- Prozessorsockel
- Socket AM4
- Motherboard-Chipsatz
- AMD B550
- Motherboard-Chipsatzfamilie
- AMD
- Motherboard-Formfaktor
- ATX
- Anzahl der Speicherplätze
- 4
- Typ der Speichersteckplätze
- DIMM
- Unterstützte Speichermodulkapazitäten
- 12GB/16GB/1GB/2GB/32GB/4GB/8GB
- Unterstützte Speichertaktraten
- 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
- Unterstützte Speichertypen
- DDR4-SDRAM
- Prozessorhersteller
- AMD
- Anzahl der unterstützten Festplatten
- 4
- Maximum interner Speicher
- 128 GB
- RAID-Unterstützung
- Yes
- Unterstützte Prozessorsockel
- Socket AM4
- DirectX-Version
- 12.0
- Anzahl der unterstützten Speicherlaufwerke
- 6
- Anzahl eSATA-Ports
- 0
- Schrauben enthalten
- Yes
- Anzahl der DVI-D-Anschlüsse
- 0
- LAN-Controller
- Realtek RTL8125
- Unterstützte Speicherlaufwerkstypen
- HDD & SSD
- Produkte pro (innerem) Versandkarton
- 1 Stück(e)
- Kopfhörerausgänge
- 1
- HDMI-Version
- 2.1
- Anzahl der Batteriezellen
- 1
- Anzahl der VGA (D-Sub) Anschlüsse
- 0
- Brand Name
- Gigabyte
- Warranty
- 1
- Komponente für
- PC
- Unterstützte Windows-Betriebssysteme
- Windows 10 x64/Windows 11 x64
- RAID-Level
- 0/1/10
- Unterstützte Speicherlaufwerkschnittstellen
- M.2/SATA III
- Produktfarbe
- Black
- Audio-Ausgangskanäle
- 7.1 Kanäle
- PCI-Express-x16-Steckplätze (Gen 3.x)
- 2
- Gesamtzahl der SATA-Anschlüsse
- 4
- USB 2.0-Anschlüsse
- 2
- ECC сompatibility
- ECC & Non-ECC
- Anzahl der PS/2-Ports
- 0
- PCI Express x1 (Gen 3.x)-Steckplätze
- 1
- PCI Express x16 (Gen 4.x)-Steckplätze
- 1
- Anzahl USB 3.2 Gen 2 (3.1 Gen 2) Typ-C Anschlüsse
- 0
- PCI Express x16-Steckplätze
- 2
- Gebündelte Software
- LAN bandwidth management software/Norton® Internet Security (OEM version)
- Anschluss für CPU-Lüfter
- Yes
- Anzahl der SATA III-Anschlüsse
- 4
- Unterstützte Speichertaktgeschwindigkeit (max.)
- 4733 MHz
- 1st M.2 highest PCI Express generation
- 4.0
- 1st M.2 largest key size
- 22110
- 12V Stromanschluss
- Yes
- Anzahl der Gehäuselüfteranschlüsse
- 3
- ATX-Stromanschluss (24-polig)
- Yes
- Audioanschluss auf der Vorderseite
- Yes
- EPS-Stromanschluss (8-polig)
- Yes
- Frontplattenanschluss
- Yes
- Number of CPU fan connectors
- 1
- Number of RGB LED pin headers
- 5
- Number of water pump connectors
- 4
- Ungepufferter Speicher
- Yes
- DisplayPorts Anzahl
- 1
- Anzahl USB 3.2 Gen 2 (3.1 Gen 2) Typ-A Anschlüsse
- 2
- Grafikkartenfamilie
- AMD
- Nicht-ECC
- Yes
- System Management BIOS (SMBIOS)-Version
- 2.7
- PCI Express x1 (Gen 2.x)-Steckplätze
- 1
- Überwachung des PC-Zustands
- Fan/Temperature/Voltage/Water cooling
- Number of EPS power connectors (8-pin)
- 1
- Maximum Anzahl von SMP-Prozessoren
- 1
- Anzahl der SATA II-Anschlüsse
- 0
- Anzahl paralleler ATA-Anschlüsse
- 0
- Firewire-Anschlüsse (IEEE 1394)
- 0
- CMOS-Jumper löschen
- Yes
- Desktop Management Interface (DMI)-Version
- 2.7
- 2nd M.2 highest PCI Express generation
- 3.0
- 2nd M.2 largest key size
- 22110
- Maximum internal memory per slot
- 32 GB
Specific References
- UPC
- 889523023945
- EAN13
- 0889523023945
- MPN
- B550 AORUS ELITE V2
16 other products in the same category:
CHF769.6
tax incl.
CHF711.9
tax excl.
Last items in stock
CHF214.1
tax incl.
CHF198.1
tax excl.
Last items in stock
Brand: ASUS
90MB1JC0-M0EAY0
ASUS PRO WS Z890-ACE SE, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB
CHF599.1
tax incl.
CHF554.2
tax excl.
In stock
CHF172.4
tax incl.
CHF159.5
tax excl.
Last items in stock
B550 AORUS ELITE V2 Motherboard - AMD Ryzen 5000 CPUs, 12+2 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
