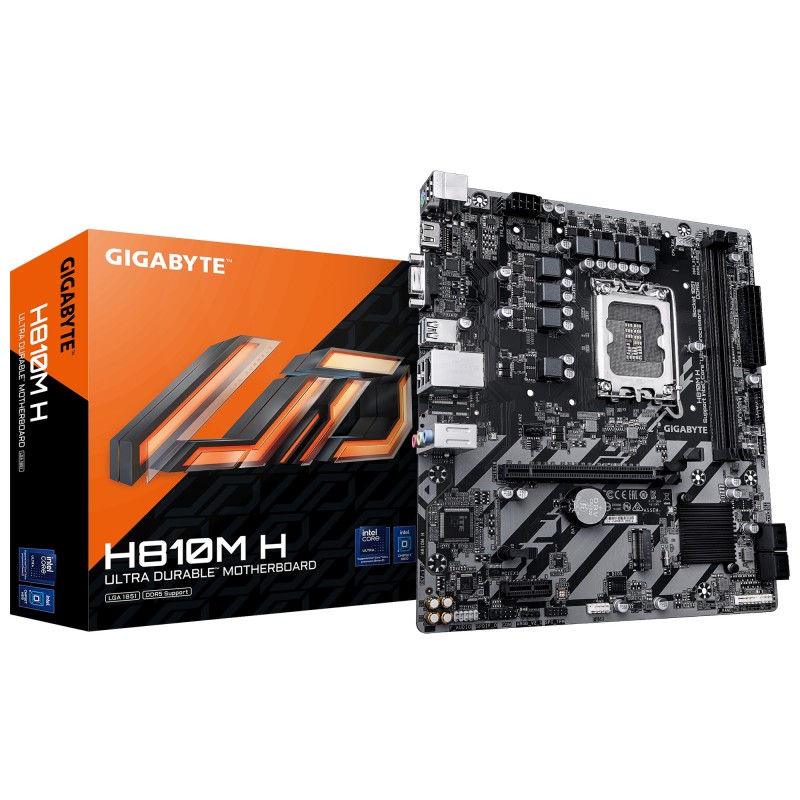

H810M_H

Data sheet

Product color

Dark brown

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Component for

PC

USB 2.0 ports quantity

5

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

HDMI ports quantity

1

Microphone in

Yes

Headphone outputs

1

VGA (D-Sub) ports quantity

1

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Weight

30.3 oz (860 g)

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Number of memory slots

2

Memory slots type

DIMM

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DVI-D ports quantity

0

PS/2 ports quantity

1

Wi-Fi

No

Battery technology

Number of battery cells

1

Memory channels

Dual-channel

Maximum resolution

4096 x 2160 pixels

Width

9.61" (244 mm)

Height

1.38" (35 mm)

Power source type

ATX

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

RAID levels

0, 1, 5, 10

Depth

8.46" (215 mm)

Package weight

30.3 oz (860 g)

Warranty period

3 year(s)

Package width

10.4" (265 mm)

Package depth

10.4" (265 mm)

Package height

2.13" (54 mm)

HDMI version

2.1

Battery type

CR2032

Battery weight

0.106 oz (3 g)

Batteries included

Yes

Cooling type

Passive

Number of HDDs supported

4

Maximum internal memory

128 GB

Bundled software

DirectX version

12.0

HDCP

Yes

Supported processor sockets

LGA 1851

Ethernet interface type

Gigabit Ethernet

Supported memory types

DDR5-SDRAM

Supported memory clock speeds

5600,6400 MHz

Line-in

Yes

Quantity per shipping (inner) case

1 pc(s)

Audio output channels

7.1 channels

ECC сompatibility

ECC & Non-ECC

Unbuffered memory

Yes

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

S/PDIF out connector

Yes

Front panel connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

LAN controller

Realtek RTL8111H

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel H810

PCI Express x1 (Gen 3.x) slots

1

Number of M.2 (M) slots

1

BIOS type

UEFI AMI

ACPI version

5.0

Screws included

Yes

Front panel audio connector

Yes

TPM connector

Yes

Audio chip

Realtek ALC897

BIOS memory size

256 Mbit

Parallel processing technology support

Not supported

PCI Express x16 (Gen 4.x) slots

1

Clear CMOS jumper

Yes

Serial port headers

1

System Management BIOS (SMBIOS) version

2.7

RAID support

Yes

PC health monitoring

Supported storage drive types

HDD & SSD

Number of storage drives supported

5

RGB LED pin header

Yes

Desktop Management Interface (DMI) version

2.7

Supported memory clock speed (max)

6400 MHz

Lithium weight per battery

0.00247 oz (0.0700 g)

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

Maximum internal memory per slot

64 GB

Number of RGB LED pin headers

2

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Specific References

EAN13

4719331869540

MPN

H810M H
