DS70S-950WH2

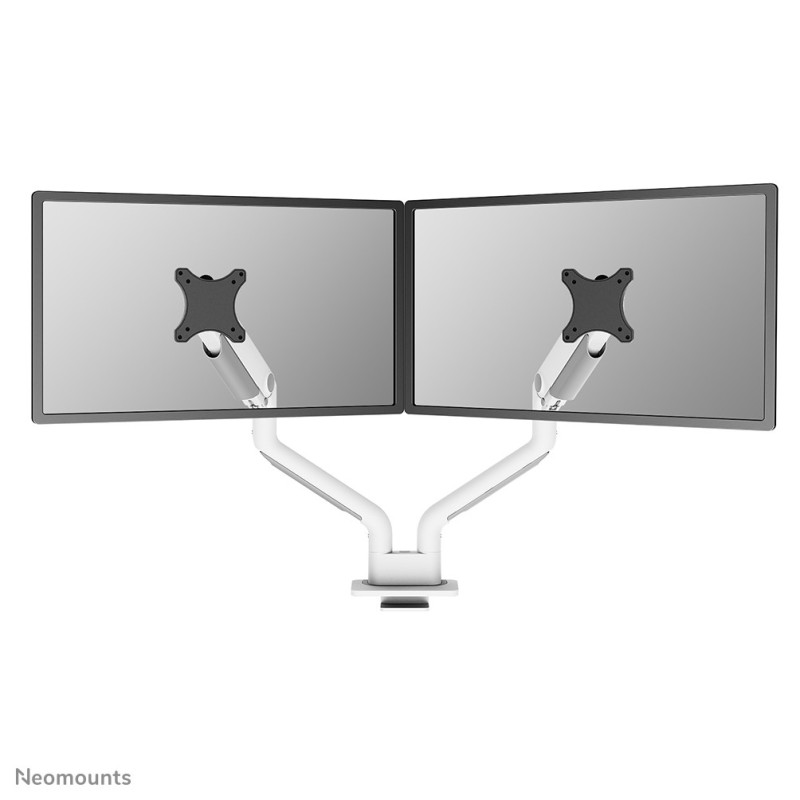

Neomounts DS70S-950WH2, Clamp/Grommet, 39.7 lbs (18 kg), 17", 35", 3.94 x 3.94" (100 x 100 mm), White
Description
The Neomounts DS70S-950WH2 NEXT One is a full motion desk mount for two screens up to 35". The DS70S-950WH2 is a true all-in one solutions for small to large displays. The NEXT One features a strengthened head to support a higher maximum weight up to 18 kg per screen. The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20,2-52,2 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.
The DS70S-950WH2 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.
The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS70S-950WH2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Neomounts DS70S-950WH2. Mounting: Clamp/Grommet, Maximum weight capacity: 39.7 lbs (18 kg), Minimum screen size: 17", Maximum screen size: 35", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 3.94 x 3.94" (100 x 100 mm). Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -90 - 90°. Product color: White
The DS70S-950WH2 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.
The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS70S-950WH2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Neomounts DS70S-950WH2. Mounting: Clamp/Grommet, Maximum weight capacity: 39.7 lbs (18 kg), Minimum screen size: 17", Maximum screen size: 35", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 3.94 x 3.94" (100 x 100 mm). Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -90 - 90°. Product color: White
| Number of displays supported | 2 |
| Maximum screen size | 35" |
| Mounting type | Desk |
| Maximum weight capacity | 39.7 lbs (18 kg) |
| Minimum screen size | 17" |
| Minimum VESA mount | 2.95 x 2.95" (75 x 75 mm) |
| Maximum VESA mount | 3.94 x 3.94" (100 x 100 mm) |
| Maximum weight capacity (per curved/ultra-wide display) | 33.1 lbs (15 kg) |
| Mounting | Clamp/Grommet |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (min) | 0.394" (1 cm) |
| Desk thickness (max) | 2.17" (5.5 cm) |
| Clamp mount desk thickness (max) | 1.97" (5 cm) |
| Grommet mount desk thickness (max) | 2.17" (5.5 cm) |
| Distance to the wall (min) | 4.69" (11.9 cm) |
| Distance to the wall (max) | 25.8" (65.6 cm) |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 7.95 - 20.6" (202 - 522 mm) |
| Adjustable depth | Yes |
| Depth adjustment range | 3.46 - 24.6" (88 - 625 mm) |
| Tilt adjustment | Yes |
| Tilt angle range | -90 - 90° |
| Swiveling | Yes |
| Swivel angle range | -90 - 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Number of arms | 2 |
| Cable management | Yes |
| Product color | White |
| Housing material | Aluminum |
| Easy to install | Yes |
| Width | 7.32" (186 mm) |
| Depth | 25.8" (656 mm) |
| Height | 22.8" (579 mm) |
| Weight | 15.4 lbs (6.98 kg) |
| Package width | 16.1" (410 mm) |
| Package depth | 4.88" (124 mm) |
| Package height | 19.5" (496 mm) |
| Package weight | 17.4 lbs (7.9 kg) |
| Package type | Box |
| Minimum weight | 2.2 lbs (1 kg) |
| Width adjustment range | 0 - 45.6" (0 - 1159 mm) |
| Warranty period | 10 year(s) |
| Master (outer) case width | 10.2" (260 mm) |
| Master (outer) case length | 12.6" (320 mm) |
| Master (outer) case height | 19.9" (505 mm) |
| Master (outer) case weight | 35.9 lbs (16.3 kg) |
| Quantity per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 30.9 lbs (14 kg) |
| Harmonized System (HS) code | 7326909890 |
| Quantity per EUR-pallet | 48 pc(s) |
| Package net weight | 17.4 lbs (7.9 kg) |
Product Details
2026-05-26
New
Data sheet
- Product color
- White
- Package type
- Box
- Weight
- 15.4 lbs (6.98 kg)
- Harmonized System (HS) code
- 7326909890
- Mounting
- Clamp/Grommet
- Width
- 7.32" (186 mm)
- Height
- 22.8" (579 mm)
- Country of origin
- China
- Depth
- 25.8" (656 mm)
- Package weight
- 17.4 lbs (7.9 kg)
- Maximum weight capacity
- 39.7 lbs (18 kg)
- Adjustable depth
- Yes
- Height adjustment
- Yes
- Master (outer) case width
- 10.2" (260 mm)
- Master (outer) case length
- 12.6" (320 mm)
- Master (outer) case height
- 19.9" (505 mm)
- Master (outer) case weight
- 35.9 lbs (16.3 kg)
- Quantity per master (outer) case
- 2 pc(s)
- Warranty period
- 10 year(s)
- Package width
- 16.1" (410 mm)
- Package depth
- 4.88" (124 mm)
- Package height
- 19.5" (496 mm)
- Number of displays supported
- 2
- Housing material
- Aluminum
- Maximum screen size
- 35"
- Quantity per EUR-pallet
- 48 pc(s)
- Mounting type
- Desk
- Tilt angle range
- -90 - 90°
- Tilt adjustment
- Yes
- Minimum screen size
- 17"
- Cable management
- Yes
- Easy to install
- Yes
- Minimum VESA mount
- 2.95 x 2.95" (75 x 75 mm)
- Maximum VESA mount
- 3.94 x 3.94" (100 x 100 mm)
- Panel mounting interface
- 75 x 75,100 x 100 mm
- Height adjustment type
- Gas spring
- Depth adjustment range
- 3.46 - 24.6" (88 - 625 mm)
- Angle of rotation
- 360°
- Swiveling
- Yes
- Swivel angle range
- -90 - 90°
- Master (outer) case net weight
- 30.9 lbs (14 kg)
- Rotating
- Yes
- Package net weight
- 17.4 lbs (7.9 kg)
- Width adjustment range
- 0 - 45.6" (0 - 1159 mm)
- Distance to the wall (max)
- 25.8" (65.6 cm)
- Distance to the wall (min)
- 4.69" (11.9 cm)
- Minimum weight
- 2.2 lbs (1 kg)
- Desk thickness (max)
- 2.17" (5.5 cm)
- Desk thickness (min)
- 0.394" (1 cm)
- Maximum weight capacity (per curved/ultra-wide display)
- 33.1 lbs (15 kg)
- Clamp mount desk thickness (max)
- 1.97" (5 cm)
- Grommet mount desk thickness (max)
- 2.17" (5.5 cm)
- Number of arms
- 2
Specific References
- EAN13
- 8717371441555
- MPN
- DS70S-950WH2
