NM-D775BLACKPLUS - 874250

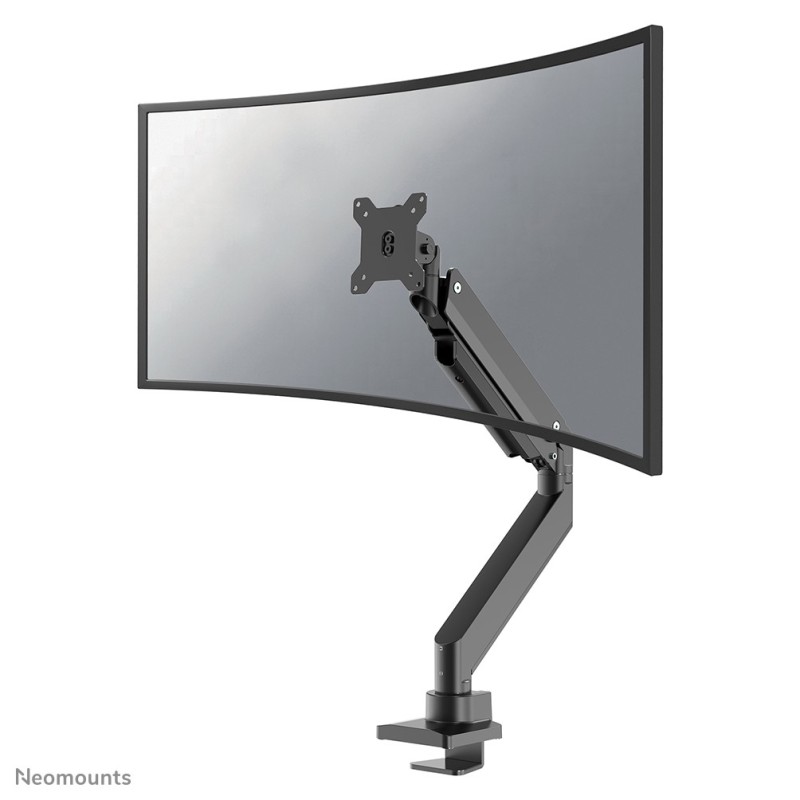

Neomounts NM-D775BLACKPLUS, Clamp/Grommet, 39.7 lbs (18 kg), 10", 49", 3.94 x 3.94" (100 x 100 mm), Black
Description
The Neomounts NM-D775BLACKPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49". This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount.
The NM-D775BLACKPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg.
Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres.
A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775BLACKPLUS desk mounts are ideal for use in offices, on counters and in reception areas.
All installation material is included with the product.
Neomounts NM-D775BLACKPLUS. Mounting: Clamp/Grommet, Maximum weight capacity: 39.7 lbs (18 kg), Minimum screen size: 10", Maximum screen size: 49", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 3.94 x 3.94" (100 x 100 mm). Height adjustment, Tilt angle range: -45 - 45°. Product color: Black
The NM-D775BLACKPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg.
Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres.
A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775BLACKPLUS desk mounts are ideal for use in offices, on counters and in reception areas.
All installation material is included with the product.
Neomounts NM-D775BLACKPLUS. Mounting: Clamp/Grommet, Maximum weight capacity: 39.7 lbs (18 kg), Minimum screen size: 10", Maximum screen size: 49", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 3.94 x 3.94" (100 x 100 mm). Height adjustment, Tilt angle range: -45 - 45°. Product color: Black
| Number of displays supported | 1 |
| Maximum screen size | 49" |
| Mounting type | Desk |
| Maximum weight capacity | 39.7 lbs (18 kg) |
| Minimum screen size | 10" |
| Minimum VESA mount | 2.95 x 2.95" (75 x 75 mm) |
| Maximum VESA mount | 3.94 x 3.94" (100 x 100 mm) |
| Maximum weight capacity (per curved/ultra-wide display) | 30.9 lbs (14 kg) |
| Mounting | Clamp/Grommet |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (min) | 0.394" (1 cm) |
| Desk thickness (max) | 1.77" (4.5 cm) |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 10.6 - 23.6" (270 - 600 mm) |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 24.8" (0 - 630 mm) |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45° |
| Swiveling | Yes |
| Swivel angle | 360° |
| Rotating | Yes |
| Angle of rotation | 180° |
| Cable management | Yes |
| Product color | Black |
| Housing material | Steel |
| Depth | 24.8" (630 mm) |
| Height | 23.6" (600 mm) |
| Weight | 8.62 lbs (3.91 kg) |
| Package width | 9.45" (240 mm) |
| Package depth | 4.84" (123 mm) |
| Package height | 21.9" (555 mm) |
| Package weight | 11.5 lbs (5.2 kg) |
| Minimum weight | 2.2 lbs (1 kg) |
| Master (outer) case width | 19.7" (500 mm) |
| Master (outer) case length | 10.4" (265 mm) |
| Master (outer) case height | 22.6" (575 mm) |
| Master (outer) case weight | 11.5 lbs (5.2 kg) |
| Quantity per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 10.1 lbs (4.6 kg) |
| Harmonized System (HS) code | 7326909890 |
| Quantity per EUR-pallet | 72 pc(s) |
| Package net weight | 11.5 lbs (5.2 kg) |
Product Details
874250
2026-05-19
New
Data sheet
- Product color
- Black
- Weight
- 8.62 lbs (3.91 kg)
- Harmonized System (HS) code
- 7326909890
- Mounting
- Clamp/Grommet
- Height
- 23.6" (600 mm)
- Country of origin
- China
- Depth
- 24.8" (630 mm)
- Package weight
- 11.5 lbs (5.2 kg)
- Maximum weight capacity
- 39.7 lbs (18 kg)
- Adjustable depth
- Yes
- Height adjustment
- Yes
- Master (outer) case width
- 19.7" (500 mm)
- Master (outer) case length
- 10.4" (265 mm)
- Master (outer) case height
- 22.6" (575 mm)
- Master (outer) case weight
- 11.5 lbs (5.2 kg)
- Quantity per master (outer) case
- 4 pc(s)
- Package width
- 9.45" (240 mm)
- Package depth
- 4.84" (123 mm)
- Package height
- 21.9" (555 mm)
- Number of displays supported
- 1
- Housing material
- Steel
- Maximum screen size
- 49"
- Quantity per EUR-pallet
- 72 pc(s)
- Mounting type
- Desk
- Tilt angle range
- -45 - 45°
- Tilt adjustment
- Yes
- Minimum screen size
- 10"
- Cable management
- Yes
- Minimum VESA mount
- 2.95 x 2.95" (75 x 75 mm)
- Maximum VESA mount
- 3.94 x 3.94" (100 x 100 mm)
- Panel mounting interface
- 75 x 75,100 x 100 mm
- Height adjustment type
- Gas spring
- Depth adjustment range
- 0 - 24.8" (0 - 630 mm)
- Swivel angle
- 360°
- Angle of rotation
- 180°
- Swiveling
- Yes
- Master (outer) case net weight
- 10.1 lbs (4.6 kg)
- Rotating
- Yes
- Package net weight
- 11.5 lbs (5.2 kg)
- Minimum weight
- 2.2 lbs (1 kg)
- Desk thickness (max)
- 1.77" (4.5 cm)
- Desk thickness (min)
- 0.394" (1 cm)
- Maximum weight capacity (per curved/ultra-wide display)
- 30.9 lbs (14 kg)
Specific References
- EAN13
- 8717371447809
- MPN
- NM-D775BLACKPLUS
