NM-D775DX3BLACK - 864357
Neomounts NM-D775DX3BLACK, Clamp/Grommet, 13.2 lbs (6 kg), 17", 27", 3.94 x 3.94" (100 x 100 mm), Black
Description

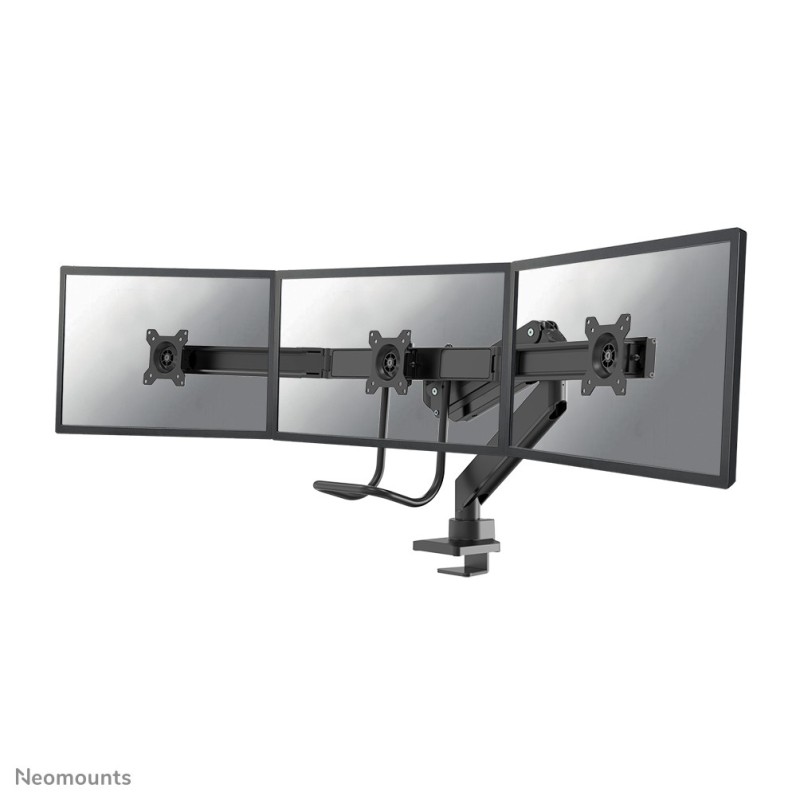

The Neomounts NM-D775DX3BLACK is a tilt-, swivel and rotatable desk mount with crossbar and handle for three flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts unique tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.
Neomounts NM-D775DX3BLACK with handle has three pivot points and is suitable for most screens up to 27" (68,6 cm). The weight capacity of this product is 1-6 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Neomounts NM-D775DX3BLACK. Mounting: Clamp/Grommet, Maximum weight capacity: 13.2 lbs (6 kg), Minimum screen size: 17", Maximum screen size: 27", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 3.94 x 3.94" (100 x 100 mm). Height adjustment, Tilt angle range: 0 - 20°. Product color: Black
Neomounts unique tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.
Neomounts NM-D775DX3BLACK with handle has three pivot points and is suitable for most screens up to 27" (68,6 cm). The weight capacity of this product is 1-6 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Neomounts NM-D775DX3BLACK. Mounting: Clamp/Grommet, Maximum weight capacity: 13.2 lbs (6 kg), Minimum screen size: 17", Maximum screen size: 27", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 3.94 x 3.94" (100 x 100 mm). Height adjustment, Tilt angle range: 0 - 20°. Product color: Black
| Number of displays supported | 3 |
| Maximum screen size | 27" |
| Mounting type | Desk |
| Maximum weight capacity | 13.2 lbs (6 kg) |
| Minimum screen size | 17" |
| Minimum VESA mount | 2.95 x 2.95" (75 x 75 mm) |
| Maximum VESA mount | 3.94 x 3.94" (100 x 100 mm) |
| Mounting | Clamp/Grommet |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (min) | 0.394" (1 cm) |
| Desk thickness (max) | 1.77" (4.5 cm) |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 10.6 - 23.6" (270 - 600 mm) |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 24.8" (0 - 630 mm) |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 20° |
| Swiveling | Yes |
| Swivel angle | 360° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Cable management | Yes |
| Product color | Black |
| Housing material | Aluminum |
| Height | 23.6" (600 mm) |
| Weight | 18.9 lbs (8.58 kg) |
| Package width | 12.6" (320 mm) |
| Package depth | 5.71" (145 mm) |
| Package height | 24.5" (623 mm) |
| Package weight | 22.5 lbs (10.2 kg) |
| Minimum weight | 2.2 lbs (1 kg) |
| Master (outer) case width | 13.4" (340 mm) |
| Master (outer) case length | 12.2" (310 mm) |
| Master (outer) case height | 25.2" (640 mm) |
| Master (outer) case weight | 22.5 lbs (10.2 kg) |
| Quantity per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 22.5 lbs (10.2 kg) |
| Harmonized System (HS) code | 83025000 |
| Quantity per EUR-pallet | 30 pc(s) |
| Package net weight | 22.5 lbs (10.2 kg) |
Product Details
864357
3 Items
New
Data sheet
- Product color
- Black
- Weight
- 18.9 lbs (8.58 kg)
- Harmonized System (HS) code
- 83025000
- Mounting
- Clamp/Grommet
- Height
- 23.6" (600 mm)
- Country of origin
- China
- Package weight
- 22.5 lbs (10.2 kg)
- Maximum weight capacity
- 13.2 lbs (6 kg)
- Adjustable depth
- Yes
- Height adjustment
- Yes
- Master (outer) case width
- 13.4" (340 mm)
- Master (outer) case length
- 12.2" (310 mm)
- Master (outer) case height
- 25.2" (640 mm)
- Master (outer) case weight
- 22.5 lbs (10.2 kg)
- Quantity per master (outer) case
- 2 pc(s)
- Package width
- 12.6" (320 mm)
- Package depth
- 145 mm
- Package height
- 24.5" (623 mm)
- Number of displays supported
- 3
- Housing material
- Aluminum
- Maximum screen size
- 27"
- Quantity per EUR-pallet
- 30 pc(s)
- Mounting type
- Desk
- Tilt angle range
- 0 - 20°
- Tilt adjustment
- Yes
- Minimum screen size
- 17"
- Cable management
- Yes
- Minimum VESA mount
- 2.95 x 2.95" (75 x 75 mm)
- Maximum VESA mount
- 3.94 x 3.94" (100 x 100 mm)
- Panel mounting interface
- 75 x 75,100 x 100 mm
- Height adjustment type
- Gas spring
- Depth adjustment range
- 0 - 24.8" (0 - 630 mm)
- Swivel angle
- 360°
- Angle of rotation
- 360°
- Swiveling
- Yes
- Master (outer) case net weight
- 22.5 lbs (10.2 kg)
- Rotating
- Yes
- Package net weight
- 22.5 lbs (10.2 kg)
- Minimum weight
- 2.2 lbs (1 kg)
- Desk thickness (max)
- 1.77" (4.5 cm)
- Desk thickness (min)
- 0.394" (1 cm)
Specific References
- EAN13
- 8717371447496
- MPN
- NM-D775DX3BLACK
