DS70-810BL1 - 1039437

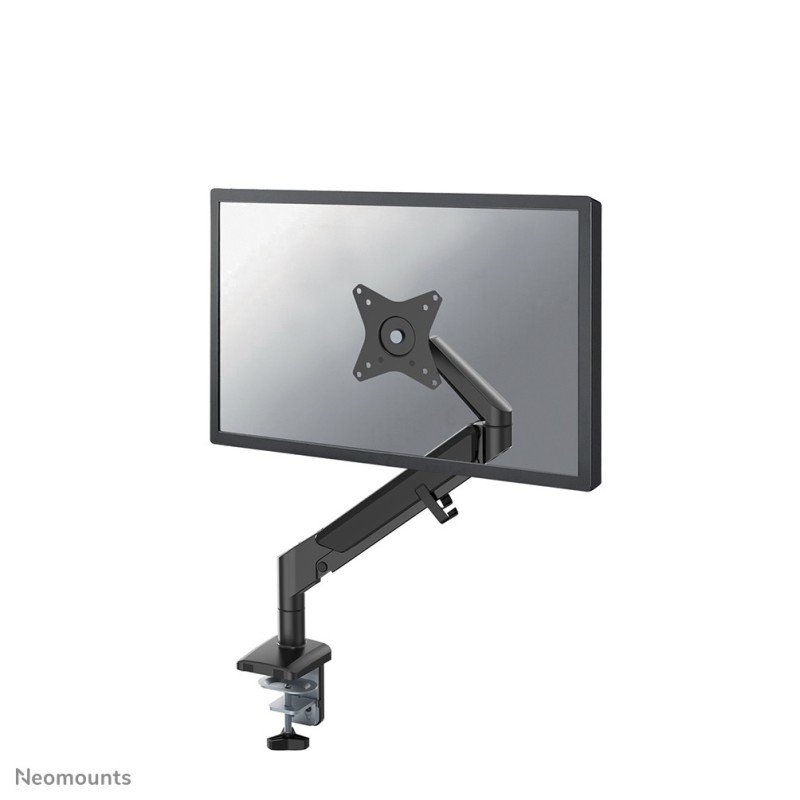

Neomounts DS70-810BL1, Clamp/Grommet, 19.8 lbs (9 kg), 17", 32", 3.94 x 3.94" (100 x 100 mm), Black
Description
The Neomounts DS70-810BL1 is a full motion desk mount for one flat screen up to 32" with a maximum weight capacity of 9 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL1 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management clips ensure orderly routing of the cables.
Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL1 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
Neomounts DS70-810BL1. Mounting: Clamp/Grommet, Maximum weight capacity: 19.8 lbs (9 kg), Minimum screen size: 17", Maximum screen size: 32", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 3.94 x 3.94" (100 x 100 mm). Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product color: Black
Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel. This allows the screen to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL1 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
Neomounts DS70-810BL1. Mounting: Clamp/Grommet, Maximum weight capacity: 19.8 lbs (9 kg), Minimum screen size: 17", Maximum screen size: 32", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 3.94 x 3.94" (100 x 100 mm). Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product color: Black
| Number of displays supported | 1 |
| Maximum screen size | 32" |
| Mounting type | Desk |
| Maximum weight capacity | 19.8 lbs (9 kg) |
| Minimum screen size | 17" |
| Minimum VESA mount | 2.95 x 2.95" (75 x 75 mm) |
| Maximum VESA mount | 3.94 x 3.94" (100 x 100 mm) |
| Maximum weight capacity (per curved/ultra-wide display) | 19.8 lbs (9 kg) |
| Mounting | Clamp/Grommet |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (min) | 0.394" (1 cm) |
| Desk thickness (max) | 3.35" (8.5 cm) |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 10.4 - 21.7" (265 - 550 mm) |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 19.3" (0 - 490 mm) |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45° |
| Swiveling | Yes |
| Swivel angle range | -90 - 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Cable management | Yes |
| Product color | Black |
| Housing material | Steel |
| Orientation | Landscape/Portrait |
| Width | 4.61" (117 mm) |
| Depth | 21.9" (555 mm) |
| Height | 24.2" (615 mm) |
| Weight | 6.61 lbs (3 kg) |
| Quantity per pack | 1 pc(s) |
| Package width | 8.74" (222 mm) |
| Package depth | 4.61" (117 mm) |
| Package height | 15.7" (400 mm) |
| Package weight | 7.94 lbs (3.6 kg) |
| Minimum weight | 2.2 lbs (1 kg) |
| Master (outer) case width | 18.3" (465 mm) |
| Master (outer) case length | 16.3" (415 mm) |
| Master (outer) case height | 14.6" (370 mm) |
| Master (outer) case weight | 49.2 lbs (22.3 kg) |
| Quantity per master (outer) case | 6 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 39.7 lbs (18 kg) |
| Harmonized System (HS) code | 7326909890 |
| Quantity per EUR-pallet | 72 pc(s) |
| Package net weight | 7.94 lbs (3.6 kg) |
Product Details
1039437
2026-02-19
New
Data sheet
- Product color
- Black
- Quantity per pack
- 1 pc(s)
- Weight
- 6.61 lbs (3 kg)
- Harmonized System (HS) code
- 7326909890
- Mounting
- Clamp/Grommet
- Width
- 4.61" (117 mm)
- Height
- 24.2" (615 mm)
- Country of origin
- China
- Depth
- 21.9" (555 mm)
- Package weight
- 7.94 lbs (3.6 kg)
- Maximum weight capacity
- 19.8 lbs (9 kg)
- Adjustable depth
- Yes
- Height adjustment
- Yes
- Master (outer) case width
- 18.3" (465 mm)
- Master (outer) case length
- 16.3" (415 mm)
- Master (outer) case height
- 14.6" (370 mm)
- Master (outer) case weight
- 49.2 lbs (22.3 kg)
- Quantity per master (outer) case
- 6 pc(s)
- Package width
- 8.74" (222 mm)
- Package depth
- 4.61" (117 mm)
- Package height
- 15.7" (400 mm)
- Number of displays supported
- 1
- Housing material
- Steel
- Maximum screen size
- 32"
- Quantity per EUR-pallet
- 72 pc(s)
- Mounting type
- Desk
- Tilt angle range
- -45 - 45°
- Tilt adjustment
- Yes
- Minimum screen size
- 17"
- Cable management
- Yes
- Minimum VESA mount
- 2.95 x 2.95" (75 x 75 mm)
- Maximum VESA mount
- 3.94 x 3.94" (100 x 100 mm)
- Panel mounting interface
- 75 x 75,100 x 100 mm
- Height adjustment type
- Gas spring
- Depth adjustment range
- 0 - 19.3" (0 - 490 mm)
- Angle of rotation
- 360°
- Swiveling
- Yes
- Swivel angle range
- -90 - 90°
- Master (outer) case net weight
- 39.7 lbs (18 kg)
- Orientation
- Landscape/Portrait
- Rotating
- Yes
- Package net weight
- 7.94 lbs (3.6 kg)
- Minimum weight
- 2.2 lbs (1 kg)
- Desk thickness (max)
- 3.35" (8.5 cm)
- Desk thickness (min)
- 0.394" (1 cm)
- Maximum weight capacity (per curved/ultra-wide display)
- 19.8 lbs (9 kg)
Specific References
- EAN13
- 8717371449216
- MPN
