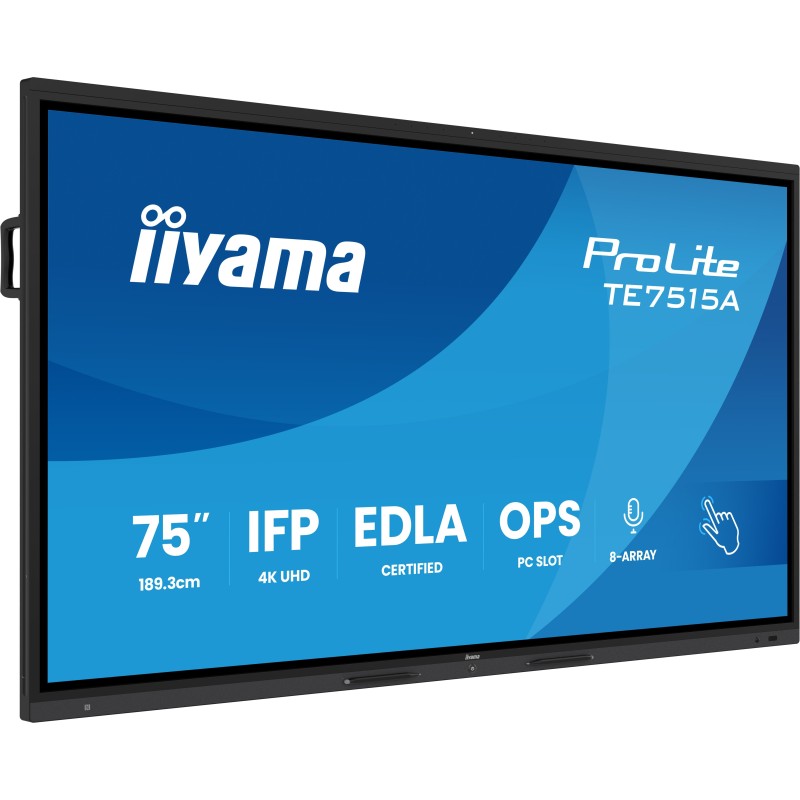

TE7515A-B2AG

Data sheet

DisplayPorts quantity

1

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Ethernet LAN data rates

1000 Mbit/s

Card reader integrated

Yes

Weight

120.4 lbs (54.6 kg)

Power supply type

Internal

Display diagonal

75"

HD type

4K Ultra HD

Wi-Fi

Yes

Internal memory

8 GB

AC input frequency

50/60 Hz

Width

67.3" (1710.2 mm)

Height

40.8" (1036.3 mm)

AC input voltage

100 - 240 V

Depth

3.43" (87.1 mm)

Package weight

149 lbs (67.6 kg)

Touchscreen

Yes

On-board graphics card model

ARM Mali-G52

Compatible operating systems

All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

Warranty period

5 year(s)

Package width

73.2" (1860 mm)

Package depth

7.28" (185 mm)

Package height

44.3" (1125 mm)

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Panel type

VA

Display brightness

550 cd/m²

Internal storage capacity

128 GB

Built-in speaker(s)

Yes

Built-in microphone

Yes

Number of built-in speakers

2

Bluetooth

Yes

Bluetooth version

5.0

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Operating system installed

Android

Cables included

AC, USB, HDMI

USB ports quantity

4

Quick start guide

Yes

Built-in processor

Yes

Power consumption (standby)

0.5 W

Power consumption (off)

0.3 W

Sustainability certificates

EPEAT, ErP, EPEAT Bronze

Quantity per pallet

4 pc(s)

Handheld remote control

Yes

Power consumption (typical)

191 W

Compliance certificates

CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE

HDCP

Yes

Mean time between failures (MTBF)

50000 h

USB Power Delivery

Yes

USB Power Delivery up to

100 W

USB Type-C DisplayPort Alternate Mode

Yes

Native aspect ratio

16:9

Response time

6.5 ms

Contrast ratio (typical)

5000:1

Display number of colors

1.07 billion colors

Anti-glare screen

Yes

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Horizontal scan range

30 - 135 kHz

Display diagonal (metric)

74.5" (189.3 cm)

Surface hardness

7H

On Screen Display (OSD)

Yes

Energy efficiency class (SDR)

G

Panel mounting interface

800 x 400 mm

Picture-in-Picture

Yes

On Screen Display (OSD) languages

CAT, Czech, Danish, German, English, Spanish, Finnish, French, Hungarian, Italian, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian

HDCP version

2.2

Audio Return Channel (ARC)

Yes

HDMI input ports quantity

1

Orientation

Horizontal

Processor architecture

ARM Cortex-A53+Cortex-A72

RS-232C

Yes

Product design

Kiosk design

Bezel width (bottom)

1.84" (4.67 cm)

Bezel width (side)

0.657" (1.67 cm)

Bezel width (top)

1.35" (3.43 cm)

Operating system version

14

Number of simultaneous touchpoints

40

Active display area (W x H)

65 x 36.5" (1650 x 928 mm)

Stylus pen

Yes

Number of stylus pens

4

Display width

67.3" (1710.2 mm)

Display depth

3.43" (87.1 mm)

Display height

40.8" (1036.3 mm)

Display weight

120.4 lbs (54.6 kg)

OPS module slot

Yes

Glass thickness

0.126" (3.2 mm)

OPS slot

1

Bezel colour

black

Audio in (mini jack)

Yes

Playback media

Y

Specific References

EAN13

4948570127498

MPN

TE7515A-B2AG
