Description

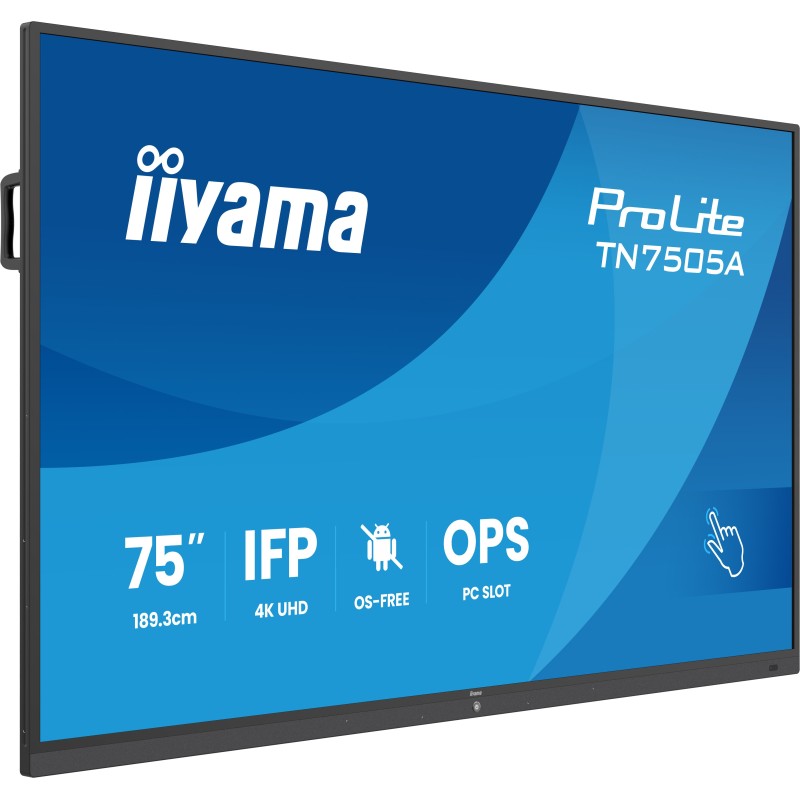

The ProLite TN7505A-B1AG is a large-format professional touch display, without an operating system, designed for environments where security, reliability and control are non-negotiable. Despite its minimalist structure, the TN6505A is exceptionally easy to use: simply connect your source and it works. The responsive multi-touch panel, 4K UHD resolution and high brightness deliver a precise and professional experience for collaboration, presentations and interactive applications. Built-in annotation allows users to write directly on the screen with a pen, marking up presentations or any on-screen content in real time for clear and effective communication. The TN8605A is the ideal choice for banks, courts, defence organisations, IT departments, universities and other high-security or compliance-driven environments where simplicity, transparency and trust are essential.
iiyama TN7505A-B1AG. Display diagonal: 74.52", Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen
iiyama TN7505A-B1AG. Display diagonal: 74.52", Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen
| Display diagonal | 74.52" |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Response time | 5 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 74.5" (189.3 cm) |
| Horizontal scan range | 30 - 135 kHz |
| DisplayPorts quantity | 1 |
| USB ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 65 W |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232C | Yes |
| OPS module slot | Yes |
| Audio Return Channel (ARC) | Yes |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Panel mounting interface | 800 x 400 mm |
| Anti-glare screen | Yes |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Russian |
| Power consumption (typical) | 175 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Display width | 67.3" (1710.2 mm) |
| Display depth | 4.74" (120.4 mm) |
| Display height | 40.8" (1036.3 mm) |
| Display weight | 120.2 lbs (54.5 kg) |
| Width | 67.3" (1710.2 mm) |
| Depth | 4.74" (120.4 mm) |
| Height | 40.8" (1036.3 mm) |
| Weight | 120.2 lbs (54.5 kg) |
| Handheld remote control | Yes |
| Cables included | RS-232 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Ethernet LAN | Yes |
| OPS slot | 1 |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Brightness | 450 cd/m² |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Audio in (mini jack) | Yes |
| User controls | Color temp., image mode (including eye protection mode), sound mode, no signal standby ( Off / 1 min. / 3 min. / 5 min. / 15 min. / 30 min.), meeting mode, time scheduler, key lock, PIP & PBP, brightness / contrast. |
Product Details
5 Items
New
Data sheet
- DisplayPorts quantity
- 1
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Weight
- 120.2 lbs (54.5 kg)
- Power supply type
- Internal
- Display diagonal
- 74.52"
- HD type
- 4K Ultra HD
- Width
- 67.3" (1710.2 mm)
- Height
- 40.8" (1036.3 mm)
- Depth
- 4.74" (120.4 mm)
- Touchscreen
- Yes
- Compatible operating systems
- All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Panel type
- IPS
- Display brightness
- 500 cd/m²
- Built-in speaker(s)
- Yes
- Number of built-in speakers
- 2
- Cables included
- RS-232
- USB ports quantity
- 1
- Power consumption (standby)
- 0.5 W
- Power consumption (off)
- 0.3 W
- Sustainability certificates
- ErP
- Handheld remote control
- Yes
- Power consumption (typical)
- 175 W
- Compliance certificates
- CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
- USB Power Delivery
- Yes
- USB Power Delivery up to
- 65 W
- Native aspect ratio
- 16:9
- Response time
- 5 ms
- Contrast ratio (typical)
- 1200:1
- Anti-glare screen
- Yes
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Horizontal scan range
- 30 - 135 kHz
- Display diagonal (metric)
- 74.5" (189.3 cm)
- On Screen Display (OSD)
- Yes
- Energy efficiency class (SDR)
- G
- Panel mounting interface
- 800 x 400 mm
- Picture-in-Picture
- Yes
- On Screen Display (OSD) languages
- German, English, Spanish, French, Italian, Japanese, Dutch, Russian
- Audio Return Channel (ARC)
- Yes
- RS-232C
- Yes
- Display width
- 67.3" (1710.2 mm)
- Display depth
- 4.74" (120.4 mm)
- Display height
- 40.8" (1036.3 mm)
- Display weight
- 120.2 lbs (54.5 kg)
- OPS module slot
- Yes
- OPS slot
- 1
- Audio in (mini jack)
- Yes
- User controls
- Color temp., image mode (including eye protection mode), sound mode, no signal standby ( Off / 1 min. / 3 min. / 5 min. / 15 min. / 30 min.), meeting mode, time scheduler, key lock, PIP & PBP, brightness / contrast.
Specific References
- EAN13
- 4948570127078
- MPN
- TN7505A-B1AG
