Description

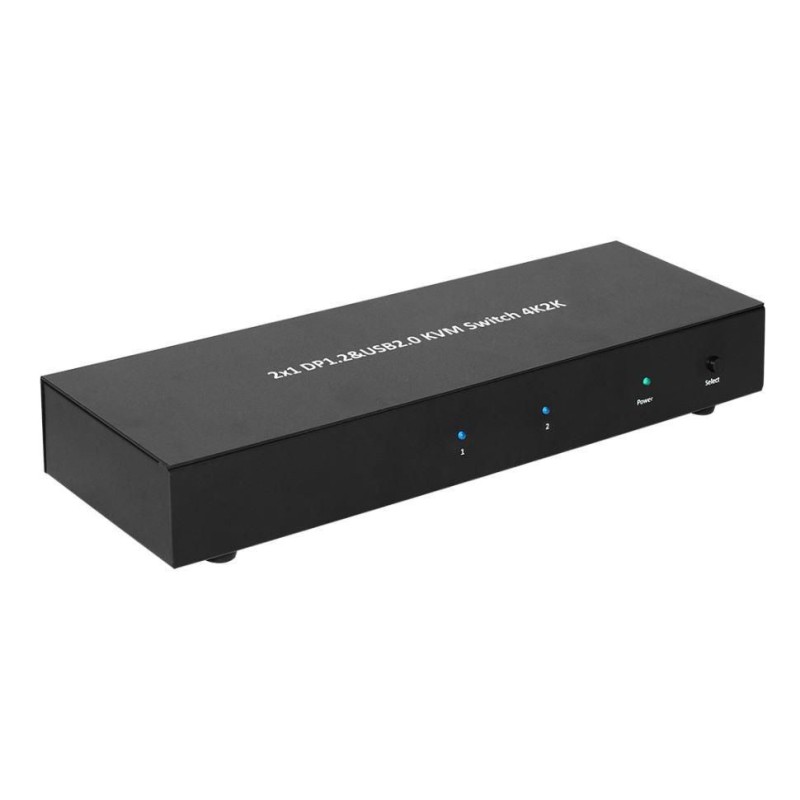

The 4K Displayport & USB 2 x 1 way KVM Switch allows you to share an HDTV or display, USB keyboard & mouse with audio and microphone between two USB and Dual head DP computers. It comes with two extra USB 2.0 ports with over-current detection and protection for additional device connections. It supports resolutions of up to 3840*2160@30Hz with video link rate up to 21.6Gbps, Dolby True HD and DTS HD Master Audio formats. Also, it features metal housing for better RF shielding and allows user to switch between devices via front push button or hotkey.
The 4K Displayport & USB 2 x 1 way KVM Switch is DP v1.2 compliant, CE, FCC regulatory approved and RoHS-compliant. It is fully compatible with a wide variety of Windows and Mac OS operating
Microconnect MC-DP-KVM201K. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 30 Hz. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240, 5 V, AC input frequency: 50 - 60 Hz. Width: 11.3" (288 mm), Depth: 6.73" (171 mm), Height: 2.05" (52 mm)
The 4K Displayport & USB 2 x 1 way KVM Switch is DP v1.2 compliant, CE, FCC regulatory approved and RoHS-compliant. It is fully compatible with a wide variety of Windows and Mac OS operating
Microconnect MC-DP-KVM201K. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 30 Hz. Product color: Black, Housing material: Metal. Power source: AC, Input voltage: 100 - 240, 5 V, AC input frequency: 50 - 60 Hz. Width: 11.3" (288 mm), Depth: 6.73" (171 mm), Height: 2.05" (52 mm)
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | DisplayPort |
| DisplayPorts quantity | 6 |
| USB 2.0 Type-B ports quantity | 2 |
| Console USB ports quantity | 4 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| DC-in jack | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
| Data transfer rate (max) | 21.6 Gbit/s |
| Rack mounting | No |
| Product color | Black |
| Housing material | Metal |
| Power source | AC |
| Input voltage | 100 - 240, 5 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 2 V |
| Width | 11.3" (288 mm) |
| Depth | 6.73" (171 mm) |
| Height | 2.05" (52 mm) |
| Weight | 32.5 oz (920 g) |
| Package width | 11.3" (288 mm) |
| Package depth | 6.73" (171 mm) |
| Package height | 2.05" (52 mm) |
| Package weight | 2.23 lbs (1.01 kg) |
| Manual | Yes |
| AC adapter included | Yes |
| Harmonized System (HS) code | 85176200 |
Product Details
52 Items
New
Data sheet
- Product color
- Black
- Headphone outputs
- 3
- DisplayPorts quantity
- 6
- Weight
- 32.5 oz (920 g)
- Harmonized System (HS) code
- 85176200
- Input voltage
- 100 - 240, 5 V
- Output voltage
- 2 V
- HD type
- 4K Ultra HD
- AC input frequency
- 50 - 60 Hz
- Maximum resolution
- 3840 x 2160 pixels
- Width
- 11.3" (288 mm)
- Height
- 2.05" (52 mm)
- Power source type
- AC
- Depth
- 6.73" (171 mm)
- Package weight
- 2.23 lbs (1.01 kg)
- Package width
- 11.3" (288 mm)
- Package depth
- 6.73" (171 mm)
- Package height
- 2.05" (52 mm)
- USB connector type
- USB Type-A
- DC-in jack
- Yes
- AC adapter included
- Yes
- Manual
- Yes
- Housing material
- Metal
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- Number of microphone inputs
- 3
- Rack mounting
- No
- Number of computers controlled
- 2
- USB 2.0 Type-B ports quantity
- 2
- Audio connections
- Yes
- Video bandwidth
- 30 Hz
- Console ports
- DisplayPort
- Console USB ports quantity
- 4
- Data transfer rate (max)
- 21.6 Gbit/s
Specific References
- EAN13
- 5704174048763
- MPN
- MC-DP-KVM201K
