Reference: ST3450857SS
Brand: Seagate
ST3450857SS _ RFB
Seagate Cheetah 450GB 3.5, 450 GB, 15000 RPM, 16 MB, 3.5", SAS
CHF241.1
tax incl.
CHF223.0
tax excl.
In stock
CHF519.6
tax incl.
CHF480.7
tax excl.
In stock
Description

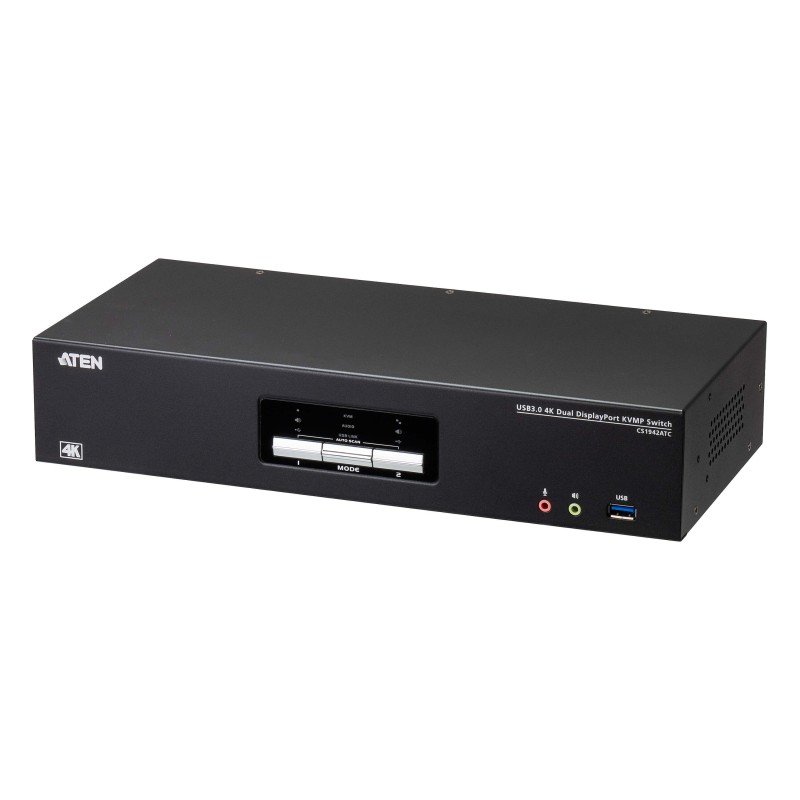

The ATEN CS1942ATC 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch for ATC is tailor-made for Air Traffic Control scenarios. It supports 2Kx2K resolution, making it perfect for radar monitoring, and also enables constant monitoring of flight information and mission-critical processes. Incorporating dual display capability, users can enjoy a wider screen and easy switch between the two DisplayPort systems.
The Zero-Second Switch function ensures nearly real-time switching without any black screens, providing air traffic controllers instant access to two USB / DisplayPort-interfaced dual display ATC computers for crucial operations. Port switching is flexible via pushbuttons, hotkeys, mouse, RS-232 commands, or an optional accessory the remote port selector.
With two lockable DC jacks for power redundancy, the CS1942ATC ensures uninterrupted operation and constant availability for mission-critical applications. It aims to greatly minimize or eliminate the risk of downtime. Patented ATEN technology – Video DynaSync™, and EDID expert™, combined with DisplayPort 1.2 and video resolutions up to 4K @ 60 Hz, it delivers optimized display resolution with exceptional detail and clarity in all conditions.
The CS1942ATC creates a safer environment and enhanced operational efficiency for Air traffic Control Towers, Approach Control Rooms, and Area Control Centers, specifically tailored the air traffic control industry.
ATEN CS1942ATC. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 17.8 W. Width: 6.34" (161 mm), Depth: 13.2" (335 mm), Height: 2.58" (65.5 mm)
The Zero-Second Switch function ensures nearly real-time switching without any black screens, providing air traffic controllers instant access to two USB / DisplayPort-interfaced dual display ATC computers for crucial operations. Port switching is flexible via pushbuttons, hotkeys, mouse, RS-232 commands, or an optional accessory the remote port selector.
With two lockable DC jacks for power redundancy, the CS1942ATC ensures uninterrupted operation and constant availability for mission-critical applications. It aims to greatly minimize or eliminate the risk of downtime. Patented ATEN technology – Video DynaSync™, and EDID expert™, combined with DisplayPort 1.2 and video resolutions up to 4K @ 60 Hz, it delivers optimized display resolution with exceptional detail and clarity in all conditions.
The CS1942ATC creates a safer environment and enhanced operational efficiency for Air traffic Control Towers, Approach Control Rooms, and Area Control Centers, specifically tailored the air traffic control industry.
ATEN CS1942ATC. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 17.8 W. Width: 6.34" (161 mm), Depth: 13.2" (335 mm), Height: 2.58" (65.5 mm)
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity | 3 |
| DisplayPorts quantity | 4 |
| Console USB ports quantity | 2 |
| Console DisplayPorts ports quantity | 2 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | Micro-USB, USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
| RJ-11 ports quantity | 1 |
| DC-in jack | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Firmware upgradeable | Yes |
| Product color | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | No |
| Built-in display | Yes |
| Power source | DC |
| Input voltage | 12 V |
| Power consumption (typical) | 17.8 W |
| Operating temperature (T-T) | 0 - 20 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 6.34" (161 mm) |
| Depth | 13.2" (335 mm) |
| Height | 2.58" (65.5 mm) |
| Weight | 4.14 lbs (1.88 kg) |
| Package width | 5.24" (133 mm) |
| Package depth | 19.6" (499 mm) |
| Package height | 12.8" (324 mm) |
| Package weight | 9.28 lbs (4.21 kg) |
| Harmonized System (HS) code | 84718000 |
| Master (outer) case width | 16.8" (427 mm) |
| Master (outer) case length | 20.4" (519 mm) |
| Master (outer) case height | 13.7" (348 mm) |
| Master (outer) case weight | 30.2 lbs (13.7 kg) |
| Country of origin | Taiwan |
Product Details
2026-07-29
New
Data sheet
- Product color
- Black
- Headphone outputs
- 2
- VGA (D-Sub) ports quantity
- 3
- DisplayPorts quantity
- 4
- Weight
- 4.14 lbs (1.88 kg)
- Harmonized System (HS) code
- 84718000
- Input voltage
- 12 V
- HD type
- 4K Ultra HD
- Maximum resolution
- 4096 x 2160 pixels
- Width
- 6.34" (161 mm)
- Height
- 2.58" (65.5 mm)
- USB hub
- Yes
- Country of origin
- Taiwan
- Depth
- 13.2" (335 mm)
- Package weight
- 9.28 lbs (4.21 kg)
- Master (outer) case width
- 16.8" (427 mm)
- Master (outer) case length
- 20.4" (519 mm)
- Master (outer) case height
- 13.7" (348 mm)
- Master (outer) case weight
- 30.2 lbs (13.7 kg)
- Package width
- 5.24" (133 mm)
- Package depth
- 19.6" (499 mm)
- Package height
- 12.8" (324 mm)
- Power source
- DC
- Hot keys
- No
- Built-in display
- Yes
- LED indicators
- Yes
- USB connector type
- Micro-USB, USB Type-A
- DC-in jack
- Yes
- Operating temperature (T-T)
- 0 - 20 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Housing material
- Metal
- Power consumption (typical)
- 17.8 W
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- Number of microphone inputs
- 2
- RJ-11 ports quantity
- 1
- Firmware upgradeable
- Yes
- Number of computers controlled
- 2
- Audio connections
- Yes
- Video bandwidth
- 60 Hz
- Console ports
- 3.5mm headphone, 3.5mm mic, DisplayPort, USB A, VGA (D-Sub)
- Console USB ports quantity
- 2
- Push button
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
- 2
- Console DisplayPorts ports quantity
- 2
Specific References
- EAN13
- 4710469343162
- MPN
- CS1942ATC-AT-G
