Description

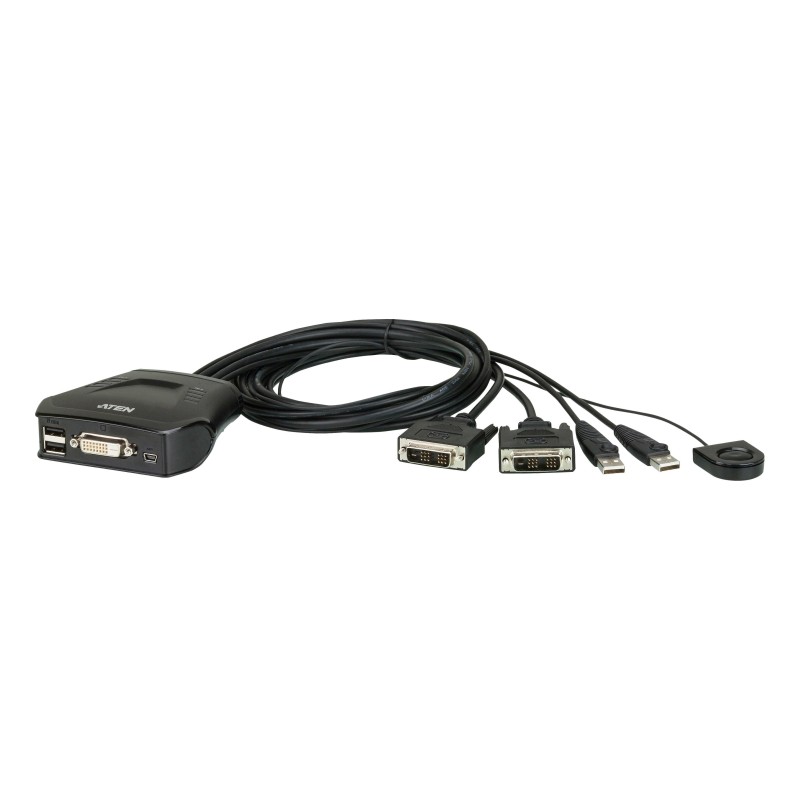

The CS22D 2-Port USB DVI KVM Switch is a control unit that allows access to two computers from a single USB and DVI console (keyboard, video and mouse). With the CS22D, you can access the computers conveniently via a Remote Port Selector.
1 x CS22D 2-Port USB DVI KVM Switch
1 x User Instructions
ATEN CS22D-AT. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-D. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.93 W. Width: 3.92" (99.5 mm), Depth: 3.8" (96.6 mm), Height: 1.19" (30.1 mm)
1 x CS22D 2-Port USB DVI KVM Switch
1 x User Instructions
ATEN CS22D-AT. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-D. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Black. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.93 W. Width: 3.92" (99.5 mm), Depth: 3.8" (96.6 mm), Height: 1.19" (30.1 mm)
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| Console ports | DVI-D, USB A, Mini-USB B |
| DVI-D ports quantity | 2 |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Rack mounting | No |
| Product color | Black |
| LED indicators | Yes |
| Built-in display | No |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 0.93 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 3.92" (99.5 mm) |
| Depth | 3.8" (96.6 mm) |
| Height | 1.19" (30.1 mm) |
| Weight | 12 oz (340 g) |
| Package width | 2.17" (55 mm) |
| Package depth | 6.1" (155 mm) |
| Package height | 8.78" (223 mm) |
| Package weight | 14.4 oz (408 g) |
| Quick installation guide | Yes |
| Master (outer) case net weight | 15 lbs (6.8 kg) |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 12.9" (328 mm) |
| Master (outer) case length | 15.3" (389 mm) |
| Master (outer) case height | 13" (330 mm) |
| Master (outer) case weight | 20 lbs (9.06 kg) |
| Quantity per master (outer) case | 20 pc(s) |
Product Details
44 Items
New
Data sheet
- Product color
- Black
- Weight
- 340 g
- Harmonized System (HS) code
- 85176200
- Input voltage
- 5 V
- HD type
- WUXGA
- DVI-D ports quantity
- 2
- Maximum resolution
- 1920 x 1200 pixels
- Width
- 3.92" (99.5 mm)
- Height
- 1.19" (30.1 mm)
- Depth
- 3.8" (96.6 mm)
- Package weight
- 14.4 oz (408 g)
- Master (outer) case width
- 12.9" (328 mm)
- Master (outer) case length
- 15.3" (389 mm)
- Master (outer) case height
- 13" (330 mm)
- Master (outer) case weight
- 20 lbs (9.06 kg)
- Quantity per master (outer) case
- 20 pc(s)
- Package width
- 2.17" (55 mm)
- Package depth
- 6.1" (155 mm)
- Package height
- 8.78" (223 mm)
- Power source
- DC
- Built-in display
- No
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage relative humidity (H-H)
- 0 - 80%
- Power consumption (typical)
- 0.93 W
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DVI-D
- Quick installation guide
- Yes
- Master (outer) case net weight
- 15 lbs (6.8 kg)
- Rack mounting
- No
- Number of computers controlled
- 2
- Video bandwidth
- 60 Hz
- Console ports
- DVI-D, USB A, Mini-USB B
Specific References
- UPC
- 672792004575
- EAN13
- 4719264640315
- MPN
- CS22D-AT
