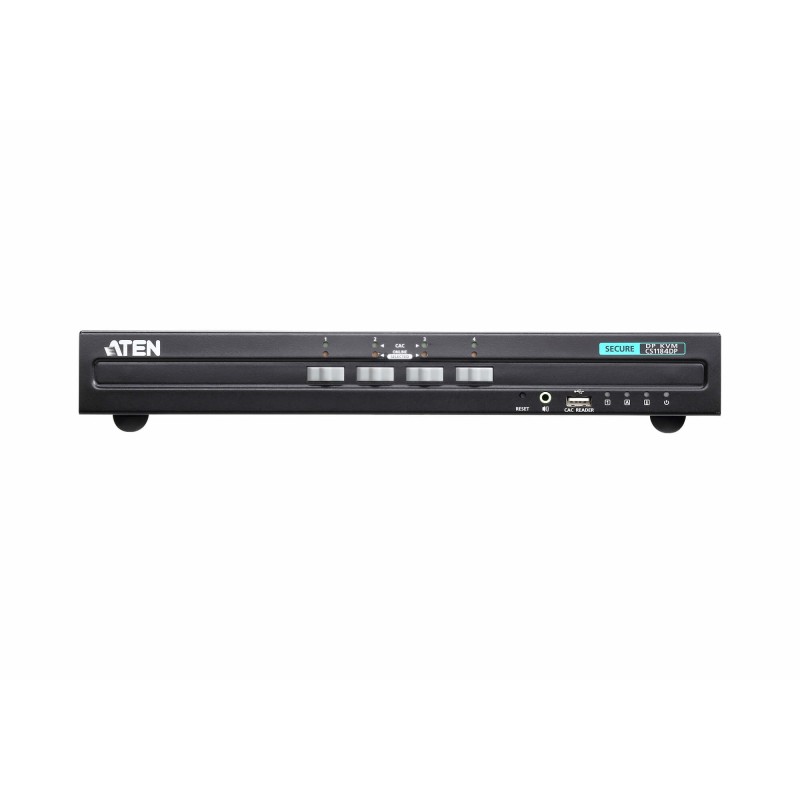

CS1184DP-AT-G

Data sheet

Product color

Black

Windows operating systems supported

Yes

HDMI ports quantity

1

Headphone outputs

4

DisplayPorts quantity

4

Weight

4.41 lbs (2 kg)

Harmonized System (HS) code

85176200

Input voltage

100 - 240 V

HD type

4K Ultra HD

PS/2 ports quantity

2

AC input frequency

50 - 60 Hz

Maximum resolution

3840 x 2160 pixels

Width

6.47" (164.3 mm)

Height

1.73" (44 mm)

Depth

13.2" (335 mm)

Package weight

5.56 lbs (2.52 kg)

Master (outer) case width

14.8" (375 mm)

Master (outer) case length

22.2" (565 mm)

Master (outer) case height

10.2" (258 mm)

Master (outer) case weight

18.4 lbs (8.35 kg)

Quantity per master (outer) case

3 pc(s)

Package width

4.57" (116 mm)

Package depth

21.3" (540 mm)

Package height

9.17" (233 mm)

Power source

AC

Built-in display

No

LED indicators

Yes

USB connector type

USB Type-B

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Cables included

AC

Input current

1 A

Manual

Yes

Housing material

Metal

Power consumption (typical)

4.7 W

Compliance certificates

RoHS

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

Quick installation guide

Yes

Master (outer) case net weight

13.2 lbs (6 kg)

Rack mounting

Yes

Number of computers controlled

4

USB 2.0 Type-B ports quantity

8

Audio connections

Yes

Video bandwidth

30 Hz

Console ports

Console USB ports quantity

2

Push button

Yes

Specific References

EAN13

4719264646645

MPN

CS1184DP-AT-G
