Description

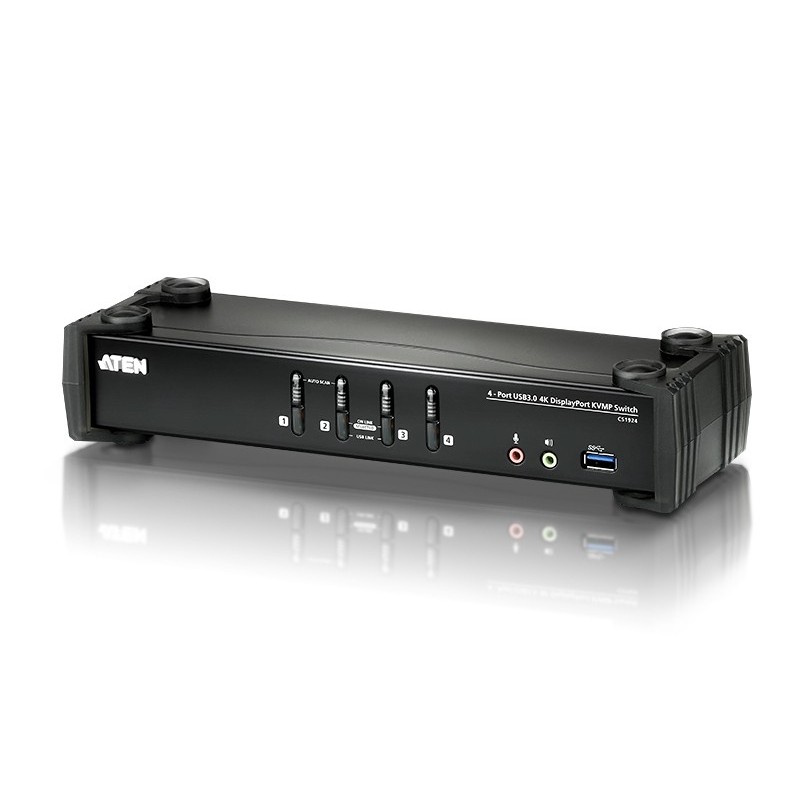

The ATEN CS1924 4-Port USB 3.0 4K DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. The ATEN CS1924 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations.
As a KVM switch, the CS1924 allows users to access four DisplayPort computers from a single USB keyboard, USB mouse and monitor console. Doing so with ease, the CS1924 provides three convenient switching methods – using front panel pushbuttons, mouse, or hotkeys for flexible access to any computer connected to the installation.
The unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a print server, modem splitter, etc.
With its rich feature set, the CS1924 is designed to surpass all requirements in graphic design, animation, and video-editing applications. Such as CAD/CAM (computer aided design/manufacturing). The CS1924 allows you to share the audio from each of the connected computers. HD audio transmitted by DisplayPort would offer you a different experience.
ATEN CS1924-AT-G. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal, Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 2.99 W. Width: 10.6" (270 mm), Depth: 3.46" (88 mm), Height: 2.19" (55.5 mm)
As a KVM switch, the CS1924 allows users to access four DisplayPort computers from a single USB keyboard, USB mouse and monitor console. Doing so with ease, the CS1924 provides three convenient switching methods – using front panel pushbuttons, mouse, or hotkeys for flexible access to any computer connected to the installation.
The unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a print server, modem splitter, etc.
With its rich feature set, the CS1924 is designed to surpass all requirements in graphic design, animation, and video-editing applications. Such as CAD/CAM (computer aided design/manufacturing). The CS1924 allows you to share the audio from each of the connected computers. HD audio transmitted by DisplayPort would offer you a different experience.
ATEN CS1924-AT-G. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal, Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 2.99 W. Width: 10.6" (270 mm), Depth: 3.46" (88 mm), Height: 2.19" (55.5 mm)
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | 3.5mm headphone, DisplayPort, HDMI, USB A |
| DisplayPorts quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
| DC-in jack | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,99 s |
| Product color | Black |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | No |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 2.99 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 10.6" (270 mm) |
| Depth | 3.46" (88 mm) |
| Height | 2.19" (55.5 mm) |
| Weight | 4.61 lbs (2.09 kg) |
| Package width | 3.86" (98 mm) |
| Package depth | 12.8" (325 mm) |
| Package height | 8.27" (210 mm) |
| Package weight | 5.6 lbs (2.54 kg) |
| Quick installation guide | Yes |
| Manual | Yes |
| Master (outer) case net weight | 22.9 lbs (10.4 kg) |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 13.5" (342 mm) |
| Master (outer) case length | 20.2" (512 mm) |
| Master (outer) case height | 9.13" (232 mm) |
| Master (outer) case weight | 29.8 lbs (13.5 kg) |
| Quantity per master (outer) case | 5 pc(s) |
Product Details
