Description
1x 4-Port USB3.0 4K DisplayPort Triple Display KVMP™ Switch
6x LIN5-20K1-K13G DisplayPort 1.2 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
2x LIN5-0205-21DG Audio Cables
1x 0AD8-8012-33MG Power Adapter
1x LIN2-418K-E12G Power cable
1x User Instructions
Note: The included cable sets are for two computer port connection only. Optional cable sets (2L-7D02UDPX6) are available with a separate purchase for the remaining computer port connection.
ATEN CS1964-AT-G. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product color: Black, Housing material: Metal. Power source: DC, Input voltage: 12 V, Power consumption (typical): 15.49 W. Width: 13.2" (335 mm), Depth: 6.14" (156 mm), Height: 2.58" (65.5 mm)
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A |
| DisplayPorts quantity | 12 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
| DC-in jack | Yes |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,99 s |
| Product color | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | No |
| Power source | DC |
| Input voltage | 12 V |
| Power consumption (typical) | 15.49 W |
| Windows operating systems supported | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 13.2" (335 mm) |
| Depth | 6.14" (156 mm) |
| Height | 2.58" (65.5 mm) |
| Weight | 7.87 lbs (3.57 kg) |
| Package width | 5.16" (131 mm) |
| Package depth | 21.3" (540 mm) |
| Package height | 9.17" (233 mm) |
| Package weight | 8.88 lbs (4.03 kg) |
| Quick installation guide | Yes |
| Manual | Yes |
| Master (outer) case net weight | 23.6 lbs (10.7 kg) |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 16.5" (420 mm) |
| Master (outer) case length | 21.9" (555 mm) |
| Master (outer) case height | 10.2" (258 mm) |
| Master (outer) case weight | 28.7 lbs (13 kg) |
| Quantity per master (outer) case | 3 pc(s) |
Product Details
2026-03-11
New
Data sheet
- Product color
- Black
- Windows operating systems supported
- Yes
- Headphone outputs
- 6
- DisplayPorts quantity
- 12
- Weight
- 7.87 lbs (3.57 kg)
- Harmonized System (HS) code
- 85176200
- Input voltage
- 12 V
- HD type
- 4K Ultra HD
- Maximum resolution
- 4096 x 2160 pixels
- Width
- 13.2" (335 mm)
- Height
- 2.58" (65.5 mm)
- USB hub
- Yes
- Depth
- 6.14" (156 mm)
- Package weight
- 8.88 lbs (4.03 kg)
- Master (outer) case width
- 16.5" (420 mm)
- Master (outer) case length
- 21.9" (555 mm)
- Master (outer) case height
- 10.2" (258 mm)
- Master (outer) case weight
- 28.7 lbs (13 kg)
- Quantity per master (outer) case
- 3 pc(s)
- Package width
- 5.16" (131 mm)
- Package depth
- 21.3" (540 mm)
- Package height
- 9.17" (233 mm)
- Power source
- DC
- Hot keys
- Yes
- Built-in display
- No
- LED indicators
- Yes
- USB connector type
- USB Type-A, USB Type-B
- DC-in jack
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage relative humidity (H-H)
- 0 - 80%
- Manual
- Yes
- Housing material
- Metal
- Power consumption (typical)
- 15.49 W
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- Number of microphone inputs
- 6
- Quick installation guide
- Yes
- Master (outer) case net weight
- 23.6 lbs (10.7 kg)
- Number of computers controlled
- 4
- Audio connections
- Yes
- Video bandwidth
- 60 Hz
- Console ports
- 3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
- Console USB ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 4
- Scan interval
- 1,5,99 s
- Push button
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
- 2
Specific References
- EAN13
- 4719264647536
- MPN
- CS1964-AT-G
16 other products in the same category:
CHF230.6
tax incl.
CHF213.3
tax excl.
In stock
Brand: Aten
KL1516AIN-AXA-2XK07GG
ATEN KL1516AIN, 19", 1280 x 1024 pixels, LCD, 250 cd/m², 1000:1, 170°
CHF2,784.9
tax incl.
CHF2,576.2
tax excl.
Will be ordered for you
CHF1,121.6
tax incl.
CHF1,037.6
tax excl.
Will be ordered for you
CHF900.1
tax incl.
CHF832.7
tax excl.
In stock
CHF151.7
tax incl.
CHF140.3
tax excl.
In stock
CHF2,300.9
tax incl.
CHF2,128.5
tax excl.
Last items in stock
Brand: Aten
KL1508AM-AXA-2XK07GG
ATEN KL1508AM, 1600 x 1200 pixels, Rack mounting, 24.4 W, 1U, Black
CHF1,622.6
tax incl.
CHF1,501.0
tax excl.
Will be ordered for you
CHF596.4
tax incl.
CHF551.7
tax excl.
Will be ordered for you
Brand: Adder
ALAV101R-EURO
Full HD 1920x1080 digital signage extender with Audio: 1080p & 720p, 2xblue 15pin HD D-type for video input
CHF300.8
tax incl.
CHF278.3
tax excl.
Will be ordered for you
CHF908.3
tax incl.
CHF840.2
tax excl.
Will be ordered for you
CHF312.5
tax incl.
CHF289.1
tax excl.
Will be ordered for you
Brand: Adder
AV4PRO-VGA-TRIPLE-EURO
Pro MultiScreen: 4 port USB 2.0, Triple Head VGA KVMA Switch. EURO power supply.
CHF677.2
tax incl.
CHF626.5
tax excl.
Will be ordered for you
CHF484.8
tax incl.
CHF448.5
tax excl.
Will be ordered for you

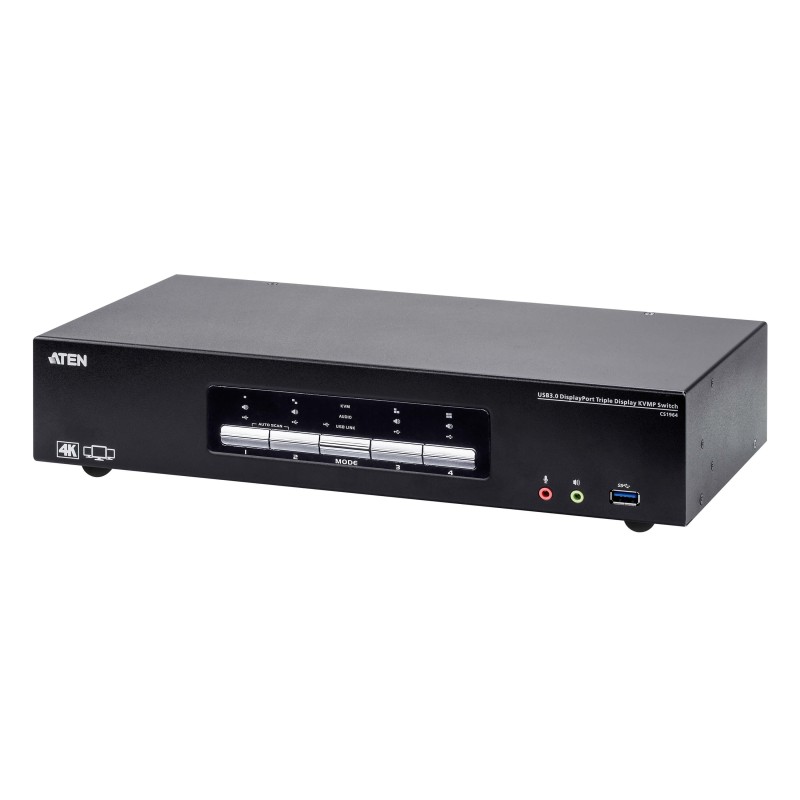

ATEN CS1964-AT-G, 4096 x 2160 pixels, 4K Ultra HD, 15.49 W, Black
