VW754-AT

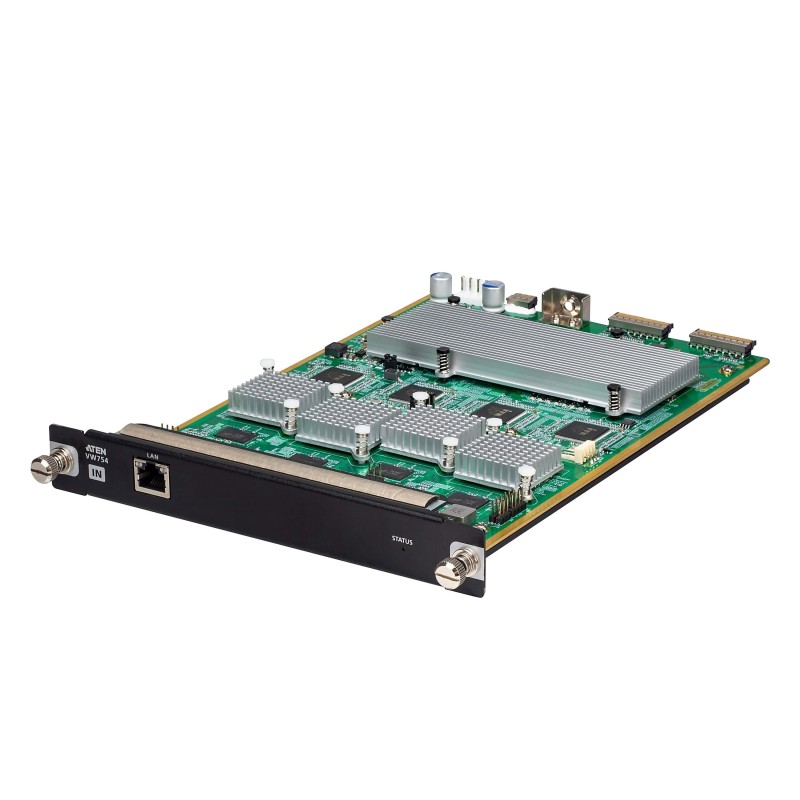

ATEN VW754, 4 channels, 3840 x 2160 pixels, 2160p, 1080p, 720p, 540p, H.265, H.264, Black, Green, Metal
Description
Built to work with ATEN’s VW3620 Modular Video Wall Processor, the VW754 seamlessly accepts H.265/H.264 streams from IP cameras/Network Video Recorders (NVRs) and decodes up to four channels at 4K @ 60 Hz simultaneously. Each decoded stream is assignable to a preferred output channel within the VW3620 configuration*. The VW754 facilitates seamless integration with any mainstream IP-based video system on account of its compliance with ONVIF Profile S and the support for RTSP.
Hot swap capability helps enhance flexibility when it comes to maintenance, especially in critical settings that need constant uptime. These highlights have made the VW754 ideal for mission-critical scenarios that involve multiple IP cameras to improve situational awareness and decision-making efficiency, such as surveillance control rooms, command centers, transportation sites, and even military and government environments.
ATEN VW754. Channels quantity: 4 channels, Maximum video resolution: 3840 x 2160 pixels, Supported video modes: 2160p, 1080p, 720p, 540p. Product color: Black, Green, Housing material: Metal. Ethernet interface type: Gigabit Ethernet, Fast Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000BaseE-T(X). Power consumption (max): 26.24 W. Width: 10.7" (271.2 mm), Depth: 7.6" (193 mm), Height: 1.08" (27.4 mm)
Hot swap capability helps enhance flexibility when it comes to maintenance, especially in critical settings that need constant uptime. These highlights have made the VW754 ideal for mission-critical scenarios that involve multiple IP cameras to improve situational awareness and decision-making efficiency, such as surveillance control rooms, command centers, transportation sites, and even military and government environments.
ATEN VW754. Channels quantity: 4 channels, Maximum video resolution: 3840 x 2160 pixels, Supported video modes: 2160p, 1080p, 720p, 540p. Product color: Black, Green, Housing material: Metal. Ethernet interface type: Gigabit Ethernet, Fast Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000BaseE-T(X). Power consumption (max): 26.24 W. Width: 10.7" (271.2 mm), Depth: 7.6" (193 mm), Height: 1.08" (27.4 mm)
| Channels quantity | 4 channels |
| Maximum video resolution | 3840 x 2160 pixels |
| Supported video modes | 2160p, 1080p, 720p, 540p |
| Video formats supported | H.265, H.264 |
| Product color | Black, Green |
| Housing material | Metal |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseE-T(X) |
| Supported network protocols | RTSP, Onvif |
| Ethernet LAN (RJ-45) ports | 1 |
| Power consumption (max) | 26.24 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Width | 10.7" (271.2 mm) |
| Depth | 7.6" (193 mm) |
| Height | 1.08" (27.4 mm) |
| Weight | 29.3 oz (830 g) |
| Package width | 9.96" (253 mm) |
| Package depth | 13.3" (338 mm) |
| Package height | 2.32" (59 mm) |
| Package weight | 2.45 lbs (1.11 kg) |
| Master (outer) case width | 10" (255 mm) |
| Master (outer) case length | 13.8" (350 mm) |
| Master (outer) case height | 10.7" (272 mm) |
| Master (outer) case weight | 11.2 lbs (5.08 kg) |
| Country of origin | Taiwan |
| Package volume | 5040.398693376 cm³ |
| Master (outer) case volume | 24267.537529344 cm³ |
Product Details
2026-04-28
New
Data sheet
- Product color
- Black, Green
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Weight
- 29.3 oz (830 g)
- Width
- 10.7" (271.2 mm)
- Height
- 1.08" (27.4 mm)
- Country of origin
- Taiwan
- Depth
- 7.6" (193 mm)
- Package weight
- 2.45 lbs (1.11 kg)
- Master (outer) case width
- 10" (255 mm)
- Master (outer) case length
- 13.8" (350 mm)
- Master (outer) case height
- 10.7" (272 mm)
- Master (outer) case weight
- 11.2 lbs (5.08 kg)
- Package width
- 9.96" (253 mm)
- Package depth
- 13.3" (338 mm)
- Package height
- 2.32" (59 mm)
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Housing material
- Metal
- Cabling technology
- 10/100/1000BaseE-T(X)
- Power consumption (max)
- 26.24 W
- Supported network protocols
- RTSP, Onvif
- Ethernet interface type
- Gigabit Ethernet, Fast Ethernet
- Maximum video resolution
- 3840 x 2160 pixels
- Supported video modes
- 2160p, 1080p, 720p, 540p
- Channels quantity
- 4 channels
- Video formats supported
- H.265, H.264
- Package volume
- 5040.398693376 cm³
- Master (outer) case volume
- 24267.537529344 cm³
Specific References
- EAN13
- 4711581520691
- MPN
- VW754-AT
