Description
Enjoy a more natural way of working The BIG PAD L2B range of smart interactive displays combines genuine ‘4K reading and writing’ and an intuitive ‘Pen-on-Paper’ user experience with Zero Bonding and Sharp’s PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The L2B series also features an integrated Android PC with whiteboard, overlay writing mode and wireless screen sharing functionality as well as graded security to help enhance your productivity.
The BIG PAD L2B series is the perfect choice for busy office environments, boardrooms, meeting rooms and training sessions that require quick responsive operation and smart integrated collaboration tools. It encourages effective group teamwork, promotes idea sharing and helps people deliver great presentations and achieve better meeting outcomes.

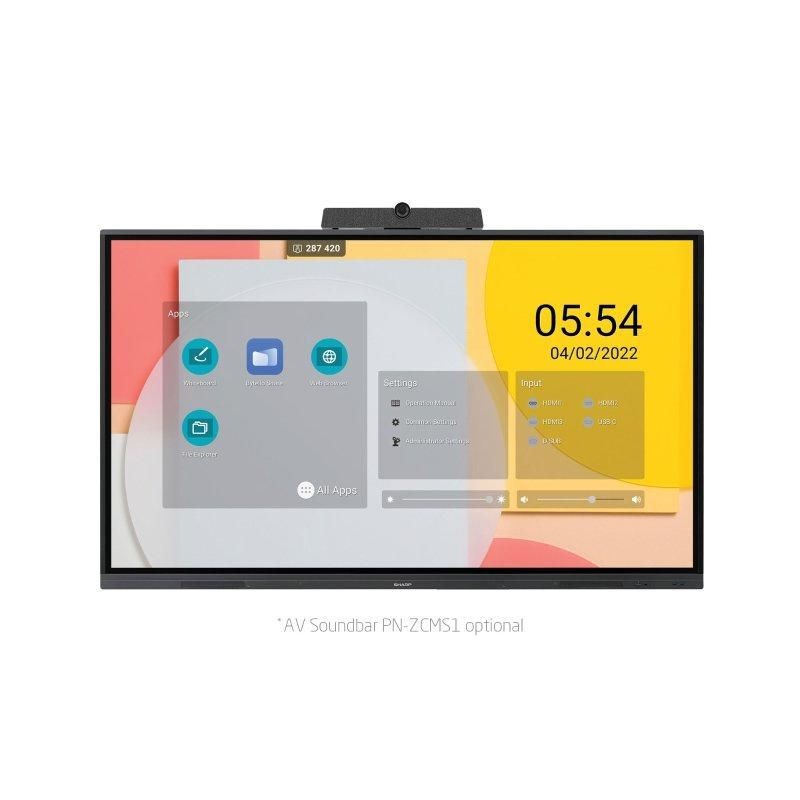

Sharp PN-L752B. Display diagonal: 75", Display brightness: 350 cd/m², Display resolution: 3840 x 2160 pixels. Operating system installed: Android, Processor architecture: ARM Cortex-A73, User memory: 32 GB. Speaker power: 20 W. Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Ethernet LAN data rates: 10,100 Mbit/s. Headphone connectivity: 3.5 mm
Display diagonal 75" Touchscreen Yes Display brightness 350 cd/m² Display resolution 3840 x 2160 pixels HD type 4K Ultra HD Panel type IPS LED backlighting type Direct-LED Native aspect ratio 16:9 Contrast ratio (typical) 5000:1 Response time 8.5 ms Touch technology Multi-touch Number of simultaneous touchpoints 20 Viewing angle, horizontal 178° Viewing angle, vertical 178° Screen glass thickness 0.134" (3.4 mm) Haze rate 8% Hardness 8H Operating system installed Android Operating system version 9 Built-in processor Yes Processor architecture ARM Cortex-A73 User memory 32 GB RAM capacity 4 GB Built-in speaker(s) Yes Number of built-in speakers 2 Speaker power 20 W Built-in projector No Wi-Fi Yes Top Wi-Fi standard Wi-Fi 5 (802.11ac) Bluetooth Yes Bluetooth version 5.0 Ethernet LAN Yes Ethernet LAN data rates 10,100 Mbit/s USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 USB 2.0 ports quantity 1 HDMI ports quantity 3 USB Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1 VGA (D-Sub) ports quantity 1 Headphone connectivity 3.5 mm Audio output 1 RS-232 ports 1 Product color Black Certification CE; FCC; RCM; REACH; RoHS; UL/C-UL Power consumption (max) 400 W Power consumption (standby) 0.5 W AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Windows operating systems supported Windows 10, Windows 11, Windows 8.1 Mac compatibility Yes Linux operating systems supported Yes Mobile operating systems supported Android 9.0 Operating temperature (T-T) 5 - 35 °C Operating relative humidity (H-H) 20 - 80% Width 67.3" (1709.4 mm) Height 40.1" (1019.8 mm) Depth 3.37" (85.7 mm) Weight 109.1 lbs (49.5 kg) Package width 73.3" (1863 mm) Package depth 8.86" (225 mm) Package height 45.5" (1155 mm) Package weight 136.7 lbs (62 kg) Manual Yes Cables included AC, HDMI, USB Handheld remote control Yes Batteries included Yes Stylus included Yes Number of stylus pens 2 Open Pluggable Specification (OPS) included Yes
Product Details
Reference
PNL752B
Availability date:
2026-02-09
Condition
New
Data sheet
Product color
Black
Windows operating systems supported
Windows 10, Windows 11, Windows 8.1
USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
3
VGA (D-Sub) ports quantity
1
Headphone connectivity
3.5 mm
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100 Mbit/s
Weight
109.1 lbs (49.5 kg)
Display diagonal
75"
Display resolution
3840 x 2160 pixels
HD type
4K Ultra HD
Wi-Fi
Yes
AC input frequency
50 - 60 Hz
Width
67.3" (1709.4 mm)
Height
40.1" (1019.8 mm)
AC input voltage
100 - 240 V
Certification
CE; FCC; RCM; REACH; RoHS; UL/C-UL
Depth
3.37" (85.7 mm)
Package weight
136.7 lbs (62 kg)
Touchscreen
Yes
Package width
73.3" (1863 mm)
Package depth
8.86" (225 mm)
Package height
45.5" (1155 mm)
Linux operating systems supported
Yes
Operating temperature (T-T)
5 - 35 °C
Operating relative humidity (H-H)
20 - 80%
Panel type
IPS
Display brightness
350 cd/m²
Touch technology
Multi-touch
Built-in speaker(s)
Yes
Number of built-in speakers
2
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Bluetooth
Yes
Bluetooth version
5.0
Operating system installed
Android
Cables included
AC, HDMI, USB
Batteries included
Yes
Built-in processor
Yes
Power consumption (standby)
0.5 W
Manual
Yes
Handheld remote control
Yes
Power consumption (max)
400 W
Mobile operating systems supported
Android 9.0
Native aspect ratio
16:9
Response time
8.5 ms
Contrast ratio (typical)
5000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Haze rate
8%
Mac compatibility
Yes
USB Type-C ports quantity
1
LED backlighting type
Direct-LED
RAM capacity
4 GB
Processor architecture
ARM Cortex-A73
Audio output
1
RS-232 ports
1
Operating system version
9
Number of simultaneous touchpoints
20
Hardness
8H
Number of stylus pens
2
Speaker power
20 W
Built-in projector
No
Stylus included
Yes
User memory
32 GB
Open Pluggable Specification (OPS) included
Yes
Screen glass thickness
0.134" (3.4 mm)
Specific References
EAN13
4974019218533
MPN
60005558
