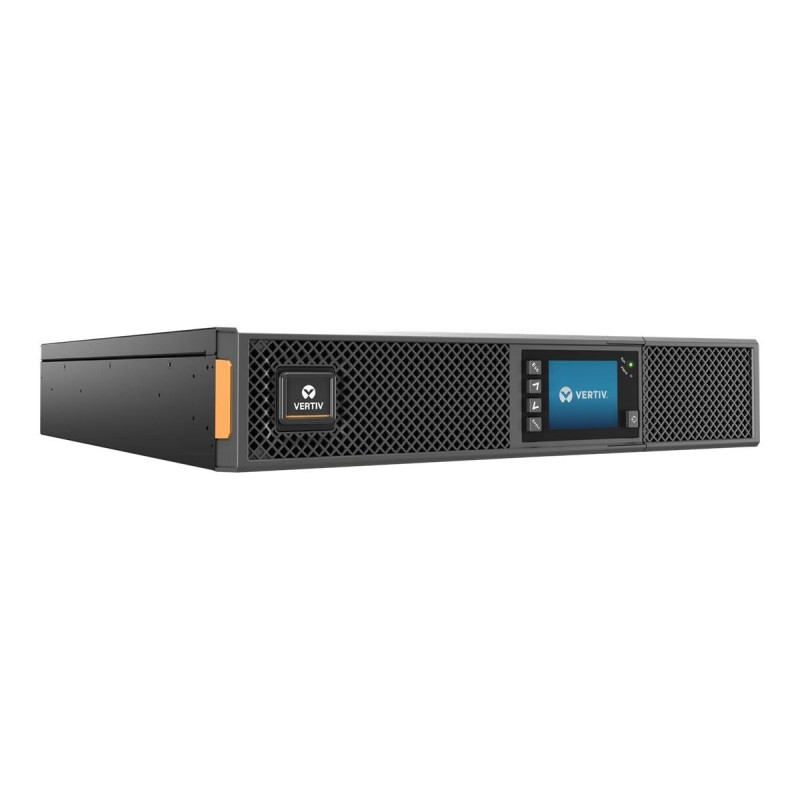

GXT5-1500IRT2UXLN

Data sheet

Product color

Black

Ethernet LAN (RJ-45) ports

2

Weight

47.2 lbs (21.4 kg)

Output power

1500 W

Input frequency

40 - 70 Hz

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

9 Ah

Width

16.9" (430 mm)

Height

3.35" (85 mm)

Number of batteries included

3 pc(s)

Certification

UL-1778 (Fifth Edition), C-UL listed, IEC 62040-1: 2008 (First Edition) + Am 1:2013, EN 62040-1:2008+A1:2013,
CISPR22 Class A (RFI)/ FCC Part 15 (Class A),
ISTA Procedure 1A, ANSI C62.41 Category B

Depth

18.5" (470 mm)

Display type

LCD

Battery voltage

12 V

Package weight

57.1 lbs (25.9 kg)

Format

Tower

Package width

24.3" (617 mm)

Package depth

22.4" (570 mm)

Package height

10.3" (262 mm)

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Cables included

USB cable

Efficiency

93%

Battery recharge time

4 h

Batteries included

Yes

Rack capacity

2U

USB port

Yes

Sustainability certificates

ENERGY STAR

Manual

Yes

AC outlets quantity

8 AC outlet(s)

Compliance certificates

REACH, RoHS

Operating altitude

0 - 118110.2" (0 - 3000 m)

Quick installation guide

Yes

AC outlet types

C13 coupler

Power plug

C14 coupler

Noise level

46 dB

Power factor

0.99

UPS topology

Double-conversion (Online)

Output power capacity

1.5 kVA

Waveform

Pure sine

Output operation voltage (min)

200 V

Output operation voltage (max)

240 V

Typical backup time at full load

5.6 min

Typical backup time at half load

16.3 min

Serial interface type

RJ-45

Input operation voltage (min)

115 V

Input operation voltage (max)

280 V

ECO mode

Yes

Serial interface

Yes

Modem (RJ-11) ports

1

Specific References

EAN13

4061471435292

MPN

GXT5-1500IRT2UXLN
