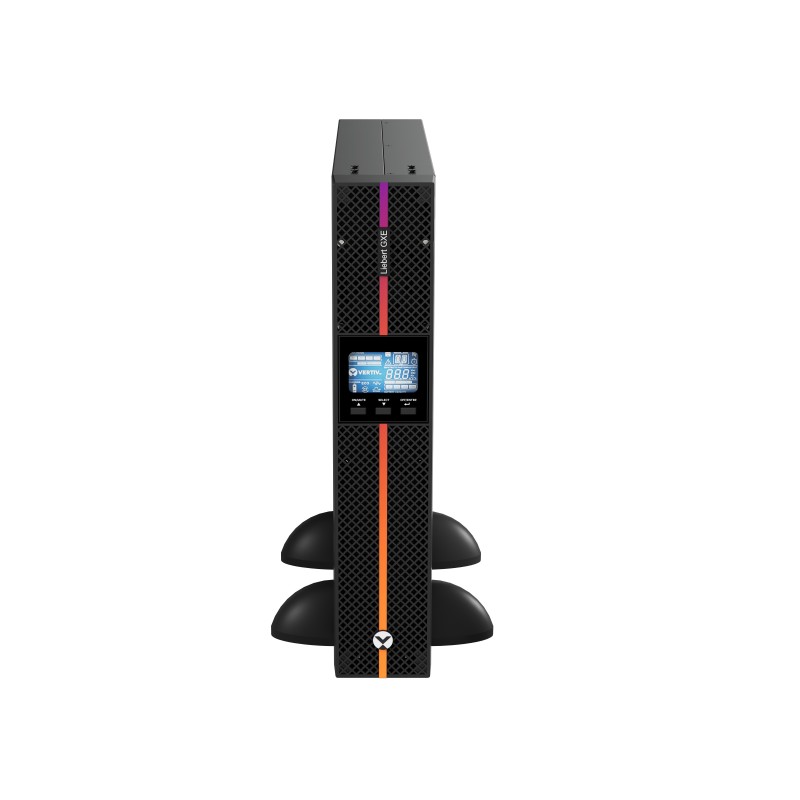

GXE3-1000IRT2UXL

Data sheet

Product color

Gray

Weight

35.3 lbs (16 kg)

Output power

900 W

Input frequency

40 - 70 Hz

Battery technology

Sealed Lead Acid (VRLA)

Width

17.2" (438 mm)

Height

3.39" (86 mm)

Country of origin

China

Depth

16.9" (430 mm)

Display type

LCD

Package weight

38.8 lbs (17.6 kg)

Format

Rackmount/Tower

Package width

9.25" (235 mm)

Package depth

23.6" (600 mm)

Package height

22" (560 mm)

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 50 °C

Operating relative humidity (H-H)

5 - 90%

Cables included

Input power cable, Output power cable, USB cable

Battery recharge time

4 h

Rack capacity

2U

USB port

Yes

Sustainability compliance

Yes

AC outlets quantity

8 AC outlet(s)

Compliance certificates

CB, CE, RCM, REACH, RoHS, UKCA, WEEE

Number of batteries supported

2

Operating altitude

0 - 78740.2" (0 - 2000 m)

Quick installation guide

Yes

AC outlet types

C13 coupler

Noise level

53 dB

UPS topology

Double-conversion (Online)

Output power capacity

1 kVA

Waveform

Pure sine

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Surge energy rating

600 J

Typical backup time at full load

3.1 min

Typical backup time at half load

9 min

Battery life (max)

5 year(s)

Input operation voltage (min)

110 V

Input operation voltage (max)

290 V

Efficiency (ECO mode)

95%

Efficiency (On-line mode)

89%

Emergency Power Off (EPO) connector

Yes

EMI/RFI noise filtering

Yes

Specific References

UPC

767041034394

EAN13

0767041034394

MPN

GXE3-1000IRT2UXL
