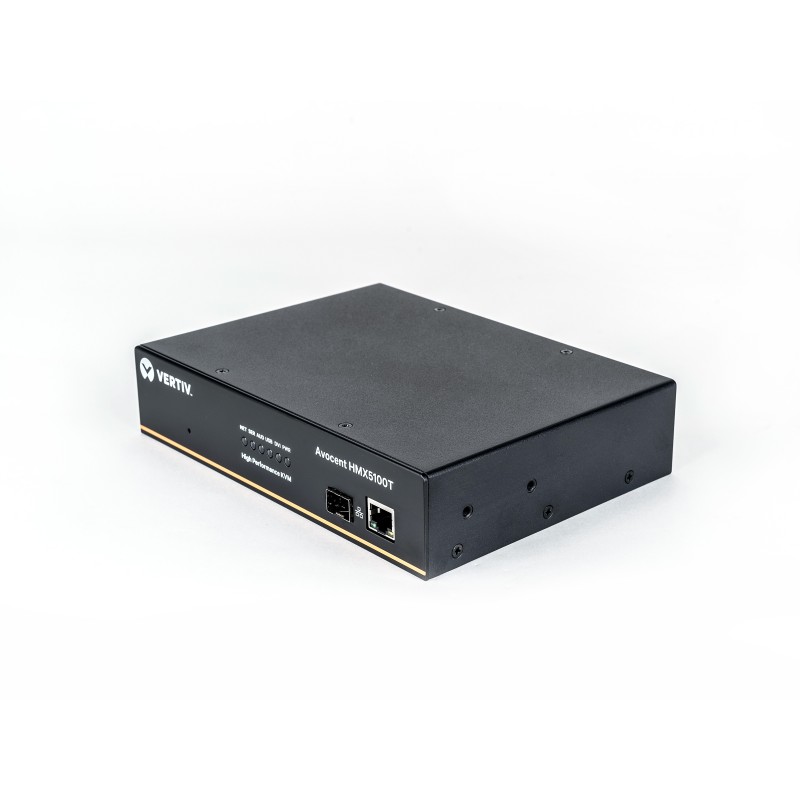

HMX5100T-202

The Avocent® HMX Digital High Performance KVM system is designed for organizations that need to provide workers the ability to seamlessly access and share one or more computing resource(s) which are physically separated from their work environment. This solution provides users an “at-the-desktop” experience from their work stations to any appliances, PCs or computing resources attached to the HMX IP network. This real-time, high-quality “at-the-PC” user experience is perfect for demanding environments such as pre and postproduction editing (broadcast), control rooms (broadcast, industrial, manufacturing, energy/utilities, IT, telecom and emergency response) and collaborative environments (training/simulation, medical diagnosis and imaging and financial trading desks).

Today, the Avocent HMX Digital High Performance KVM system empowers the command centers of major hydroelectric plants; streamlines the editing of Hollywood blockbusters and is used in production environments by a vast majority of major broadcasting television and cable networks. In these and other cases, the Avocent HMX Digital High Performance KVM system enables organizations to improve employee productivity, reduce IT costs and, ultimately, produce better business results for their customers.

The Avocent HMX Digital High Performance KVM system is the ideal solution for these demanding environments. The solution can be easily deployed over a local area network (LAN). It supports a comprehensive range of peripherals including DVI-D video, digital audio, USB mass storage, keyboard and mouse and other USB devices.

The Avocent HMX Digital High Performance KVM system is ideal for the enterprise market bringing a robust set of administrative tools with the Avocent HMX Advanced Manager Solution. The Avocent HMX Advanced Manager Solution provides administration and connection-management control from a central location, enabling the desktop administrator to effectively and efficiently manage the computing resources without compromising the user experience.

Vertiv Avocent HMX5100T-202. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-D. Cabling technology: 10/100/1000Base-T(X). HD type: Full HD, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product color: Blue, Rack capacity: 1U, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz

Number of computers controlled	1
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-D
Display connection	Yes
DVI-D ports quantity	1
USB 2.0 Type-B ports quantity	1
USB 2.0 ports quantity	4
USB version	2.0
Serial port type	DE-9 (DB-9)
Serial ports quantity	1
Audio connections	Yes
Headphone outputs	1
Number of microphone inputs	1
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Cabling technology	10/100/1000Base-T(X)
HD type	Full HD
Maximum resolution	1920 x 1200 pixels
Video bandwidth	60 Hz
Plug and Play	Yes
Number of users	16 user(s)
Firmware upgradeable	Yes
Rack mounting	Yes
Product color	Blue
Rack capacity	1U
Housing material	Metal
LED indicators	Yes
Hot keys	Yes
Certification	CE, FCC, UL
Built-in display	No
Power source	AC
Input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.8 A
External power adapter	Yes
Compatible power plug types	EU
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	7.8" (198 mm)
Depth	5.91" (150 mm)
Height	1.73" (44 mm)
Weight	2.43 lbs (1.1 kg)
Cables included	DVI, Serial, USB
Quick installation guide	Yes
Manual	Yes
AC adapter included	Yes
Harmonized System (HS) code	85176200
Audio support	Yes
