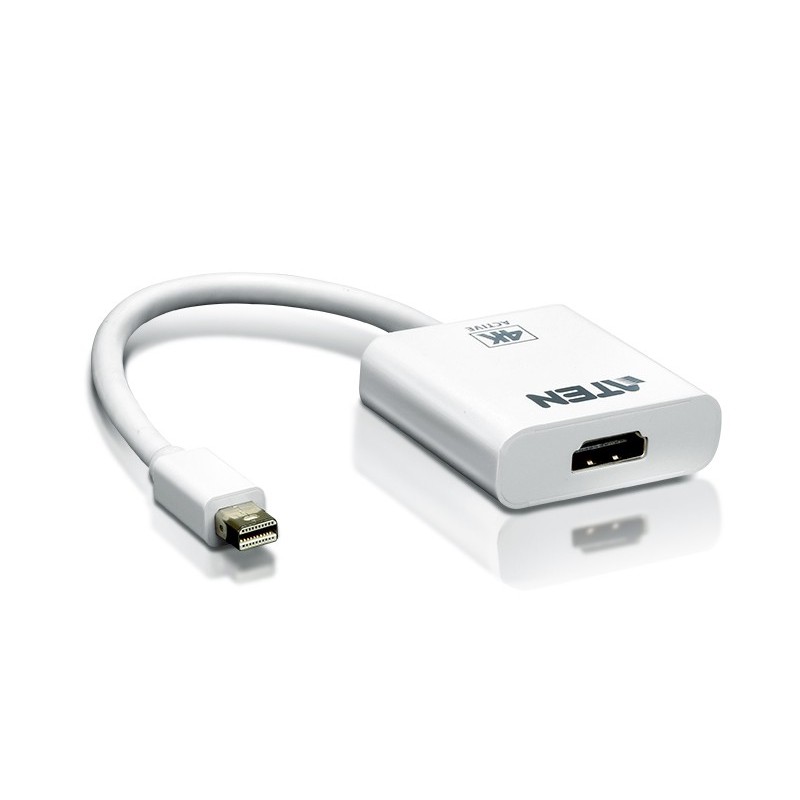

VC981-AT

Data sheet

Product color

White

Quantity per pack

1 pc(s)

Connector 1

Mini DisplayPort

Connector 2

HDMI

Connector 1 gender

Male

Connector 2 gender

Female

Weight

2.65 oz (75 g)

Harmonized System (HS) code

84733080

Maximum resolution

3840 x 2160 pixels

Width

1.77" (45 mm)

Height

0.591" (15 mm)

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Depth

6.89" (175 mm)

Package weight

3.39 oz (96 g)

Master (outer) case width

10.6" (270 mm)

Master (outer) case length

13.2" (335 mm)

Master (outer) case height

9.06" (230 mm)

Master (outer) case weight

9.59 lbs (4.35 kg)

Quantity per master (outer) case

40 pc(s)

Package width

0.748" (19 mm)

Package depth

4.72" (120 mm)

Package height

8.35" (212 mm)

DisplayPort version

1.2a

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

HDCP

Yes

Supported graphics resolutions

1920 x 1200 (WUXGA), 3840 x 2160

Jacket material

Plastic

Master (outer) case net weight

6.61 lbs (3 kg)

HDCP version

1.3

Bandwidth

297 MHz

Specific References

UPC

672792006777

EAN13

4719264643729

MPN

VC981-AT
