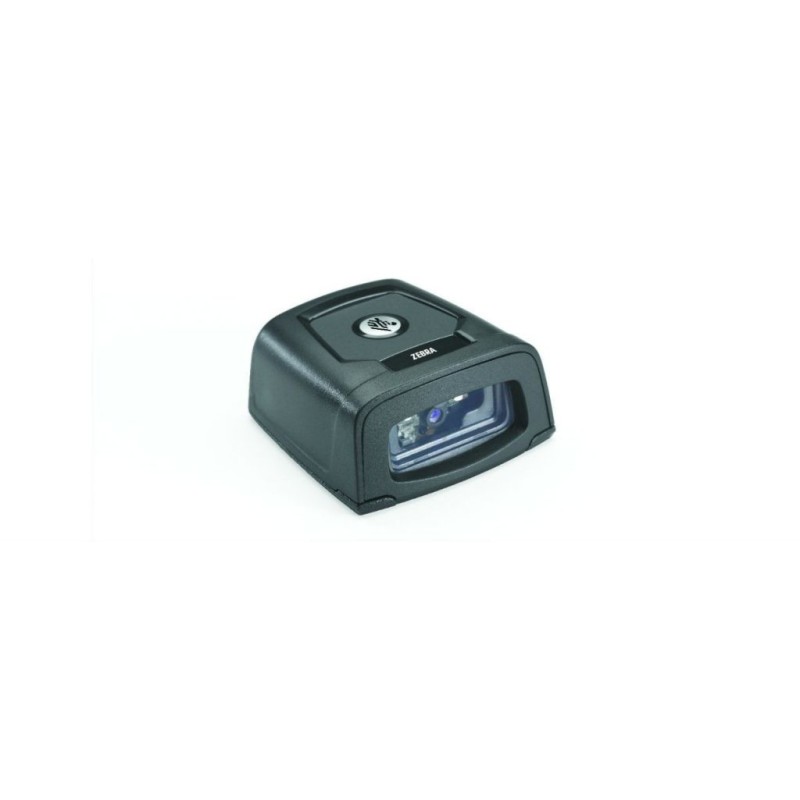

DS457-DP20004ZZWW

Next-Generation Fixed Mount Imager

Somewhere, a flight is sold out at a busy airport, and to stay on schedule the passengers must board quickly. The checkout line is growing at a popular boutique and the customers are not happy. An engineer struggles to add direct part marking into his space-constrained product design.

The Zebra DS457 Fixed Mount Scanner Series can help, delivering fast, high-volume hands-free scanning of virtually any barcode— including 1D, 2D and direct part marks (DPM). No matter what type of barcode is presented, or whether it is printed on paper, etched into a product or displayed on a mobile phone screen, the DS457 Series provides fast, accurate scanning in a tiny footprint that fits in the most space-constrained areas.

Zebra DS457-DP20004ZZWW. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product color: Black. Power source type: DC, Input voltage: 5 V, Power consumption: 450 mA. Weight: 3.92 oz (111 g), Width: 2.44" (62 mm), Depth: 2.3" (58.4 mm)

Type	Fixed bar code reader
Scanner type	1D/2D
Sensor type	Laser
Linear (1D) barcodes supported	Code 128
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, PDF417, QR Code
Wavelength	625 nm
Connectivity technology	Wired
Standard interfaces	RS-232, USB
Product color	Black
Power source type	DC
Input voltage	5 V
Power consumption	450 mA
Weight	3.92 oz (111 g)
Width	2.44" (62 mm)
Depth	2.3" (58.4 mm)
Height	1.15" (29.2 mm)
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Compliance certificates	RoHS
Harmonized System (HS) code	84716070
