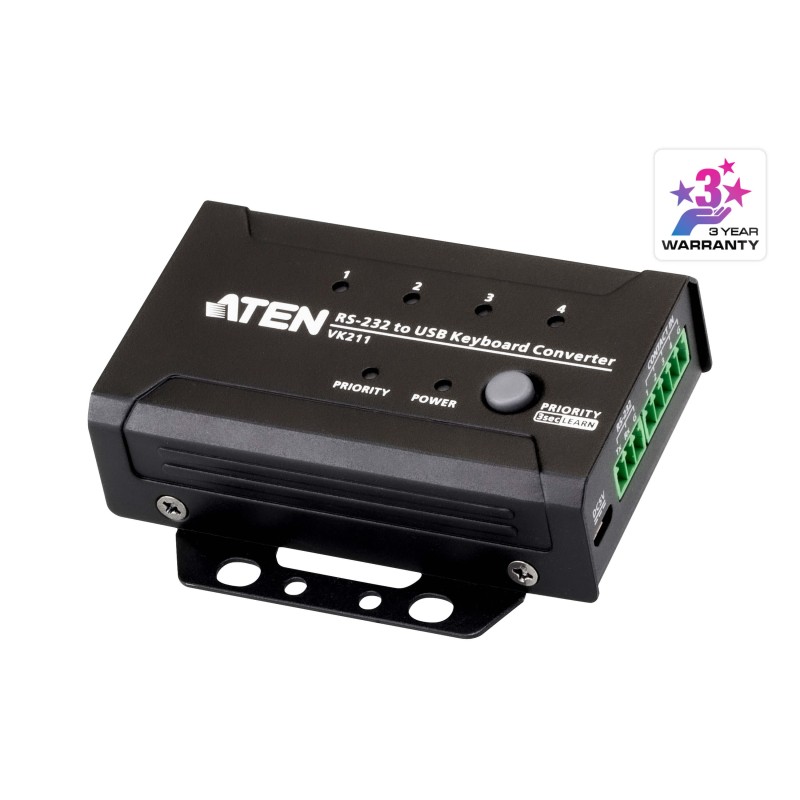

VK211-AT

VK211 converts RS-232 commands to full-range USB keyboard signals for remote control over PC-based devices/KVM Switches, broadening ATEN Control System/3rd party controller applications. Besides, VK211 can recall the stored key codes and store up to 4 preset actions triggered via Contact In signals. The Learn function captures USB keyboard signals by pressing certain key combinations to ease the setup procedure and configurations.

A priority control push button is easy to spot on the panel for local operators to manage remote access, ensure operational accuracy, and handle emergencies. LEDs are built in to indicate the status of digital input signals, priority control, and power at a glance.

With the capabilities of emulating USB keyboard signals, the VK211 is perfect to provide RS-232 / Contact In interfaces for KVMs or any PC-based devices without remote control functionalities. Its compact size and non-power source design are suitable for applications such as factory production lines, control rooms, or any facility that requires automation with control system and remote secure operation without installing any software.



ATEN VK211. Product color: Black, Enclosure material: Metal. Console port: USB. Power consumption (typical): 0.69 W. Width: 2.87" (73 mm), Depth: 3.23" (82 mm), Height: 1.03" (26.2 mm). Package width: 2.32" (59 mm), Package depth: 4.69" (119 mm), Package height: 6.3" (160 mm)

Product color	Black
Enclosure material	Metal
LED indicators	Yes
USB 2.0 ports quantity	3
RS-232 ports	1
Console port	USB
Number of console ports	2
DC-in jack	Yes
Power consumption (typical)	0.69 W
Width	2.87" (73 mm)
Depth	3.23" (82 mm)
Height	1.03" (26.2 mm)
Weight	9.52 oz (270 g)
Package width	2.32" (59 mm)
Package depth	4.69" (119 mm)
Package height	6.3" (160 mm)
Package weight	12.7 oz (360 g)
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Country of origin	Taiwan
Harmonized System (HS) code	85176200
