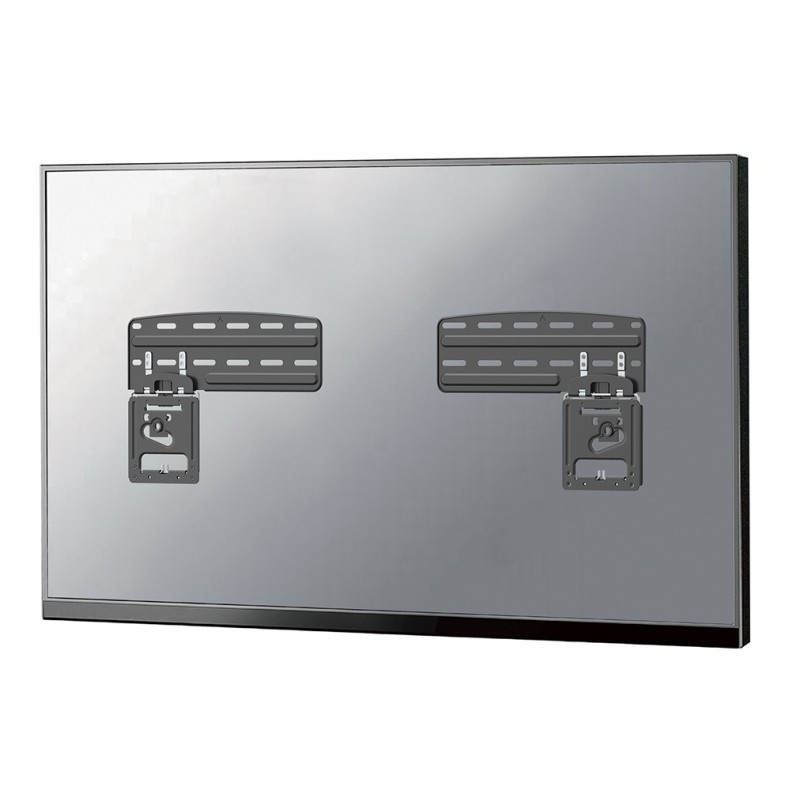

WL30-265BL1

The Neomounts WL30-265BL1 offers the ideal ultra-slim solution for various Samsung screens* up to 85", including the Crystal UHD professional signage displays. This mount allows your screen to be installed incredibly close to the wall, leaving just 3-7,5 mm space depending on the TV model. Your TV will look like a painting on the wall. Level adjustment is available for the perfect installation.

The WL30-265BL1 is suitable for screens that meet VESA hole pattern 150x100 to 1200x800 mm and supports a maximum weight of 60kg. Strong magnetic contacts ensure solid placement of the screen while the convenient kickstand option allows easy access to cables and connectors behind the screen. Anti-skid pads ensure safe and scratch-free installation of the screen to the mount.


* The Neomounts WL30-265BL1 wall mount is optimised for the following Samsung models:

-\t43-85": Crystal UHD Signage Displays QMC, QBC, QHC

2023 Samsung models
-\t43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000
-\t50-85": The Frame (2021-2023)

2022 Samsung models
-\t43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B

2021 Samsung models
-\t43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000)

NOT compatible with Samsung models
-\t77": OLED S90C, S95C, QLED Q80A, Q80C, Neo QLED QN95D, QN95C
-\tCrystal UHD CU7000

For detailed compatibility, please refer to the online manual.

Neomounts WL30-265BL1. Maximum weight capacity: 132.3 lbs (60 kg), Minimum screen size: 43", Maximum screen size: 85", Minimum VESA mount: 5.91 x 3.94" (150 x 100 mm), Maximum VESA mount: 47.2 x 31.5" (1200 x 800 mm). Distance to the wall (max): 2.95" (7.5 cm). Product color: Black

Number of displays supported	1
Maximum screen size	85"
Mounting type	Wall
Maximum weight capacity	132.3 lbs (60 kg)
Minimum VESA mount	5.91 x 3.94" (150 x 100 mm)
Maximum VESA mount	47.2 x 31.5" (1200 x 800 mm)
Minimum screen size	43"
Panel mounting interface	200 x 200,200 x 400,400 x 400,400 x 600,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400,300 x 200,400 x 300,400 x 500,600 x 500,600 x 600,800 x 500,800 x 600,900 x 600,200 x 100,300 x 100,1000 x 400,1000 x 600,460 x 640,800 x 800,300 x 900,1000 x 700,350 x 350,1200 x 600,400 x 200,1000 x 800,1200 x 800,1200 x 900,1400 x 800,1500 x 600,1600 x 600,500 x 500,150 x 200,200 x 150,700 x 400,1500 x 900,800 x 450
Type	Fixed
Distance to the wall (max)	2.95" (7.5 cm)
Product color	Black
Housing material	Steel
Warranty period	5 year(s)
Compatible products	- 43-85": Crystal UHD Signage Displays QMC, QBC, QHC 2023 Samsung - 43-65": OLED S90C, S95C, Neo QLED QN900C, QN800C, QN90C QN85C, QLED Q70C, Q60C, Crystal UHD CU8000 - 50-85": The Frame (2021-2023) 2022 Samsung - 43-85": OLED S90BD, S90BQN95B, Neo QLED QN90BD, QN90B, QN900B, QN85BD, QN85B, QN850B, QN800B, QLED Q60B 2021 Samsung - 43-85": Neo QLED, QLED (excluding Q80A), Crystal UHD (AU8000 - AU9000)
Width	25.2" (640 mm)
Depth (max)	2.95" (7.5 cm)
Height	9.29" (236 mm)
Weight	2.65 lbs (1.2 kg)
Package width	6.38" (162 mm)
Package depth	2.48" (63 mm)
Package height	14.3" (363 mm)
Package weight	3.53 lbs (1.6 kg)
Master (outer) case width	13.8" (350 mm)
Master (outer) case length	13.6" (345 mm)
Master (outer) case height	15" (380 mm)
Master (outer) case weight	36.4 lbs (16.5 kg)
Master (outer) case net weight	26.5 lbs (12 kg)
Quantity per master (outer) case	10 pc(s)
Harmonized System (HS) code	7326909890
Quantity per EUR-pallet	243 pc(s)
