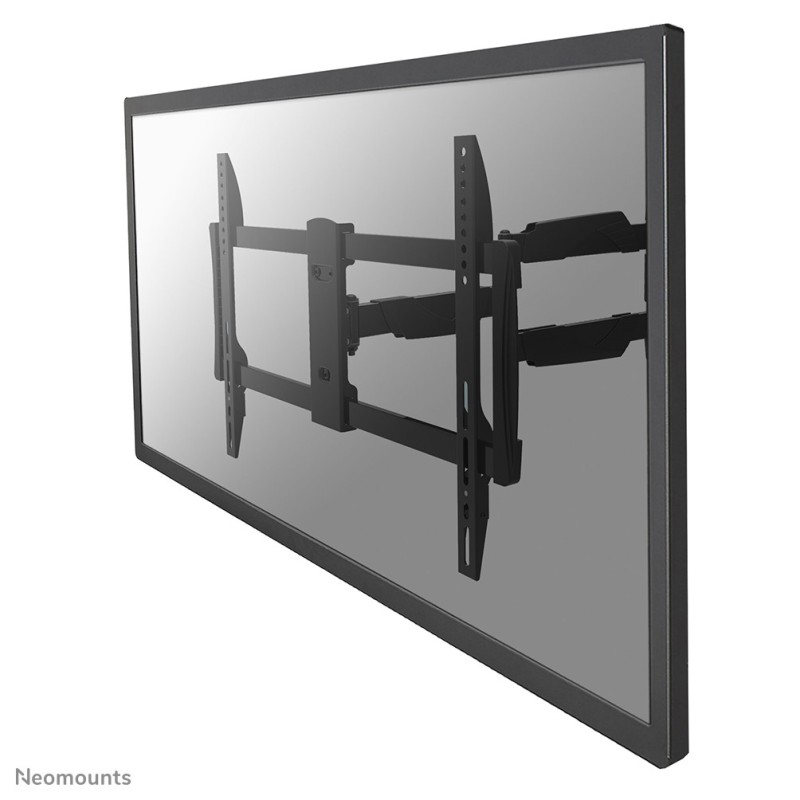

The Neomounts wall mount, model NM-W460BLACK is a full swing tilt- and swivel wall mount for flat screens up to 60". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen TV. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.
Neomounts' tilt (25°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 5 to 61 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.
Neomounts NM-W460BLACK has three pivot points and is suitable for screens up to 60" (150 cm). The weight capacity of this product is 30 kg. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
Create a clean design ambiance for your flat screen TV in a living room, bedroom or public environment.
All installation material is included with the product.
Neomounts NM-W460BLACK. Maximum weight capacity: 66.1 lbs (30 kg), Minimum screen size: 32", Maximum screen size: 60", Minimum VESA mount: 7.87 x 7.87" (200 x 200 mm), Maximum VESA mount: 23.6 x 15.7" (600 x 400 mm). Tilt angle range: 0 - 25°, Swivel angle range: 0 - 180°, Angle of rotation: 6°, Distance to the wall (min): 1.97" (5 cm), Distance to the wall (max): 24" (61 cm). Product color: Black
Number of displays supported
1
Maximum screen size
60"
Mounting type
Wall
Maximum weight capacity
66.1 lbs (30 kg)
Minimum VESA mount
7.87 x 7.87" (200 x 200 mm)
Maximum VESA mount
23.6 x 15.7" (600 x 400 mm)
Minimum screen size
32"
Panel mounting interface
200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 500,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400
Tilt adjustment
Yes
Tilt angle range
0 - 25°
Swiveling
Yes
Swivel angle
180°
Swivel angle range
0 - 180°
Rotating
Yes
Angle of rotation
6°
Type
Full motion
Distance to the wall (max)
24" (61 cm)
Distance to the wall (min)
1.97" (5 cm)
Product color
Black
Housing material
Steel
Country of origin
China
Weight
10.7 lbs (4.85 kg)
Package width
14.8" (376 mm)
Package depth
3.23" (82 mm)
Package height
31.5" (800 mm)
Package weight
10.8 lbs (4.9 kg)
Master (outer) case width
32.3" (820 mm)
Master (outer) case length
15.7" (400 mm)
Master (outer) case height
11" (280 mm)
Master (outer) case weight
41 lbs (18.6 kg)
Master (outer) case net weight
32.6 lbs (14.8 kg)
Quantity per master (outer) case
3 pc(s)
Harmonized System (HS) code
7326909890
Quantity per EUR-pallet
54 pc(s)
Package net weight
10.8 lbs (4.9 kg)
Product Details
837122
2026-01-01
New
Data sheet
Type
Full motion
Product color
Black
Weight
10.7 lbs (4.85 kg)
Harmonized System (HS) code
7326909890
Country of origin
China
Package weight
10.8 lbs (4.9 kg)
Maximum weight capacity
66.1 lbs (30 kg)
Master (outer) case width
32.3" (820 mm)
Master (outer) case length
15.7" (400 mm)
Master (outer) case height
11" (280 mm)
Master (outer) case weight
41 lbs (18.6 kg)
Quantity per master (outer) case
3 pc(s)
Package width
14.8" (376 mm)
Package depth
3.23" (82 mm)
Package height
31.5" (800 mm)
Number of displays supported
1
Housing material
Steel
Maximum screen size
60"
Quantity per EUR-pallet
54 pc(s)
Mounting type
Wall
Tilt angle range
0 - 25°
Tilt adjustment
Yes
Minimum screen size
32"
Minimum VESA mount
7.87 x 7.87" (200 x 200 mm)
Maximum VESA mount
23.6 x 15.7" (600 x 400 mm)
Panel mounting interface
200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 500,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400
