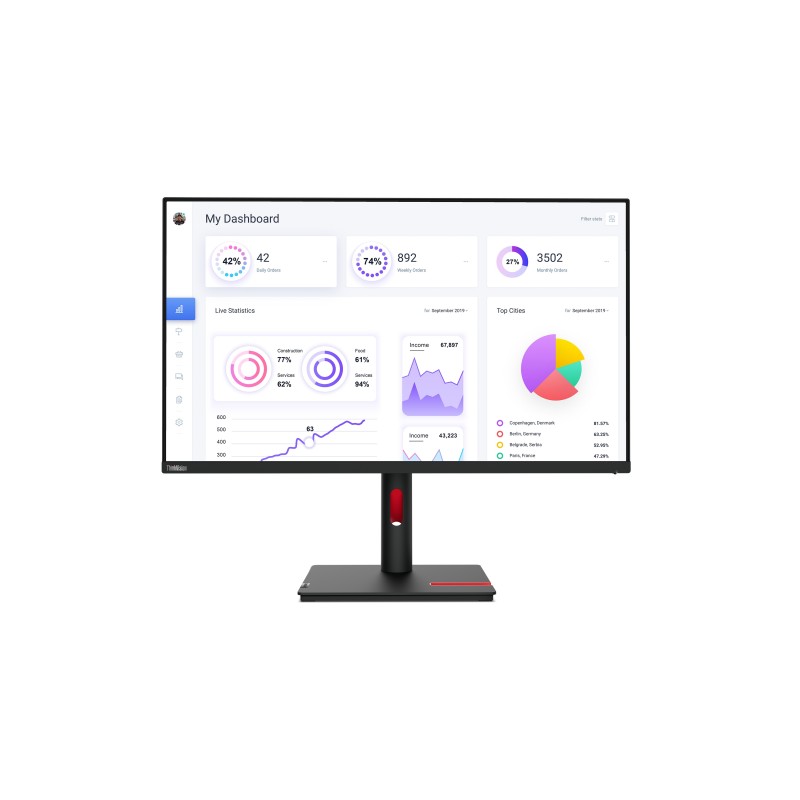

63D2GAT1EU - W128428054

Data sheet

Product color

Black

HDMI ports quantity

1

Headphone outputs

1

VGA (D-Sub) ports quantity

0

DisplayPorts quantity

1

Headphone connectivity

3.5 mm

Ethernet LAN

Yes

Cable lock slot

Yes

Power supply type

Internal

Display diagonal

31.5"

Display resolution

3840 x 2160 pixels

HD type

4K Ultra HD

LED backlight

Yes

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Certification

Energy Star Certified, TCO 9.0, TCO Edge 2.0, EPEAT Gold, RoHS
Eyesafe Display, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Eye Comfort

Package weight

30.9 lbs (14 kg)

Touchscreen

No

Compatible operating systems

Windows 10, Windows 11

Height adjustment

Yes

Package width

37.4" (950 mm)

Package depth

20.7" (525 mm)

Package height

5.83" (148 mm)

HDMI version

2.0

DisplayPort version

1.4

VESA mounting

Yes

Power cable length

70.9" (1.8 m)

Panel type

IPS

Built-in speaker(s)

No

Built-in microphone

No

Cables included

AC, USB Type-C

Quick start guide

Yes

Power consumption (standby)

0.5 W

Power consumption (off)

0.3 W

Power consumption (typical)

32 W

Power consumption (max)

161 W

Cable lock slot type

Kensington

Backlight type

W-LED

USB Power Delivery

Yes

USB Power Delivery up to

90 W

USB Type-C DisplayPort Alternate Mode

Yes

Maximum refresh rate

60 Hz

Tilt angle range

-5 - 23.5°

Native aspect ratio

16:9

Display technology

LED

Response time

6 ms

Screen shape

Flat

Contrast ratio (typical)

1000:1

Display number of colors

1.07 billion colors

Display brightness (typical)

350 cd/m²

Anti-glare screen

Yes

Contrast ratio (dynamic)

3000000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.00713 x 0.00713" (0.181 x 0.181 mm)

Pixel density

140 ppi

Viewable size, horizontal

27.4" (69.7 cm)

Viewable size, vertical

15.4" (39.2 cm)

Color depth

10 bit

Colour gamut standard

DCI-P3

Color gamut

95%

sRGB coverage (typical)

99%

NVIDIA G-SYNC

No

AMD FreeSync

No

Low Blue Light technology

Yes

Built-in camera

No

Detachable stand

Yes

Feet color

Black

Built-in USB hub

Yes

HDMI

Yes

Headphone out

Yes

Tilt adjustment

Yes

On Screen Display (OSD)

Yes

Energy efficiency class (SDR)

F

Energy efficiency class (HDR)

G

Energy consumption (SDR) per 1000 hours

32 kWh

Energy efficiency scale

A to G

Width (with stand)

28.1" (714.2 mm)

Depth (with stand)

9.24" (234.6 mm)

Height (with stand)

23.6" (599.5 mm)

Weight (with stand)

21.9 lbs (9.94 kg)

Width (without stand)

28.1" (714 mm)

Depth (without stand)

2.34" (59.5 mm)

Height (without stand)

16.6" (420.9 mm)

Stand included

Yes

Cable management

Yes

Panel mounting interface

100 x 100 mm

Angle of rotation

-90 - 90°

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB upstream port type

USB Type-B, USB Type-C

Number of upstream ports

2

USB Type-A downstream ports quantity

4

Adjustable height (max)

6.1" (15.5 cm)

Pivot

Yes

Swiveling

Yes

Swivel angle range

-45 - 45°

Weight (without stand)

15.9 lbs (7.2 kg)

Energy consumption (HDR) per 1000 hours

45 kWh

USB Type-C downstream ports quantity

1

Audio output

Yes

Built-in KVM switch

Yes

Bezel width (bottom)

0.732" (1.86 cm)

Bezel width (side)

0.0787" (2 mm)

Bezel width (top)

0.0787" (2 mm)

Front bezel color

Black

Response time (fast)

4 ms

Color name

Raven Black

Number of USB Type-B upstream ports quantity

1

Number of USB Type-C upstream ports quantity

1

DisplayPort out quantity

0

Specific References

UPC

196801203211

EAN13

0196801203211

MPN

63D2GAT1EU
