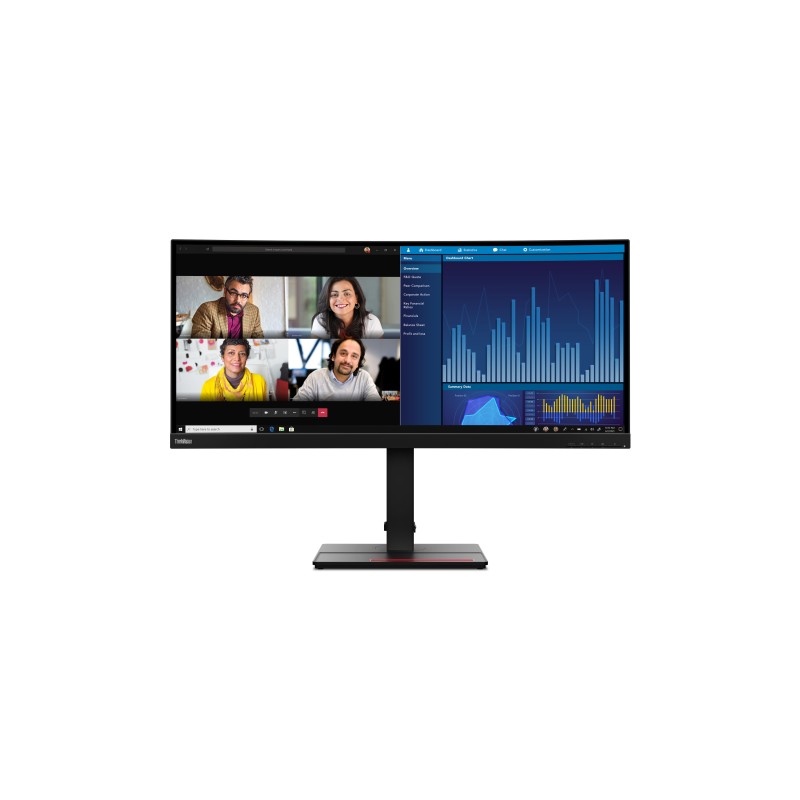

63F2RAT3EU

Data sheet

Product color

Black

HDMI ports quantity

2

Headphone outputs

1

VGA (D-Sub) ports quantity

0

DisplayPorts quantity

2

Headphone connectivity

3.5 mm

Ethernet LAN

Yes

Cable lock slot

Yes

Display diagonal

34.14"

Display resolution

3440 x 1440 pixels

HD type

Wide Quad HD

LED backlight

Yes

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Certification

ENERGY STAR
CCC
TCO 8.0
TCO Edge 2.0
EPEAT Gold
RoHS
TÜV

Package weight

34.2 lbs (15.5 kg)

Touchscreen

No

Compatible operating systems

Windows 10, Windows 11

Height adjustment

Yes

Package width

36.9" (937 mm)

Package depth

8.66" (220 mm)

Package height

18.7" (475 mm)

HDMI version

2.0

DisplayPort version

1.2

VESA mounting

Yes

Panel type

IPS

Built-in speaker(s)

Yes

Cables included

AC, USB Type-C

Power consumption (standby)

0.5 W

Power consumption (off)

0.3 W

Power consumption (typical)

36 W

Power consumption (max)

230 W

Cable lock slot type

Kensington

Backlight type

W-LED

USB Power Delivery

Yes

USB Power Delivery up to

100 W

USB Type-C DisplayPort Alternate Mode

Yes

Maximum refresh rate

60 Hz

Tilt angle range

-5 - 35°

Native aspect ratio

21:9

Display technology

LED

Response time

6 ms

Screen shape

Curved

Contrast ratio (typical)

1000:1

Display number of colors

1.07 billion colors

Display brightness (typical)

300 cd/m²

Anti-glare screen

Yes

Contrast ratio (dynamic)

3000000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.00915 x 0.00915" (0.233 x 0.233 mm)

Pixel density

109 ppi

Viewable size, horizontal

31.5" (80 cm)

Viewable size, vertical

13.2" (33.5 cm)

Color depth

10 bit

Colour gamut standard

sRGB

Color gamut

99%

Flicker-free technology

Yes

Low Blue Light technology

Yes

Built-in camera

No

Number of speakers

2

RMS rated power

6 W

Built-in USB hub

Yes

HDMI

Yes

Headphone out

Yes

Tilt adjustment

Yes

On Screen Display (OSD)

Yes

Energy efficiency class (SDR)

F

Energy efficiency class (HDR)

G

Energy consumption (SDR) per 1000 hours

32 kWh

Energy efficiency scale

A to G

Width (with stand)

32.2" (817.3 mm)

Depth (with stand)

9.65" (245 mm)

Height (with stand)

24.5" (621.4 mm)

Weight (with stand)

23.8 lbs (10.8 kg)

Width (without stand)

32.2" (817.3 mm)

Depth (without stand)

3.02" (76.8 mm)

Height (without stand)

14.7" (372.7 mm)

Stand included

Yes

Panel mounting interface

100 x 100 mm

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB upstream port type

USB Type-B, USB Type-C

Number of upstream ports

2

USB Type-A downstream ports quantity

3

Adjustable height (max)

5.91" (15 cm)

Swiveling

Yes

Swivel angle range

-45 - 45°

Weight (without stand)

16.3 lbs (7.4 kg)

High Dynamic Range (HDR) supported

Yes

Energy consumption (HDR) per 1000 hours

34 kWh

USB Type-C downstream ports quantity

1

Audio output

Yes

Built-in KVM switch

Yes

Bezel width (bottom)

1.12" (2.84 cm)

Bezel width (side)

0.374" (9.5 mm)

Bezel width (top)

0.374" (9.5 mm)

Screen curvature rating

3800R

Response time (fast)

4 ms

Color name

Raven Black

Number of USB Type-B upstream ports quantity

1

Number of USB Type-C upstream ports quantity

1

Specific References

UPC

197532306721

EAN13

0197532306721

MPN

63F2RAT3EU
