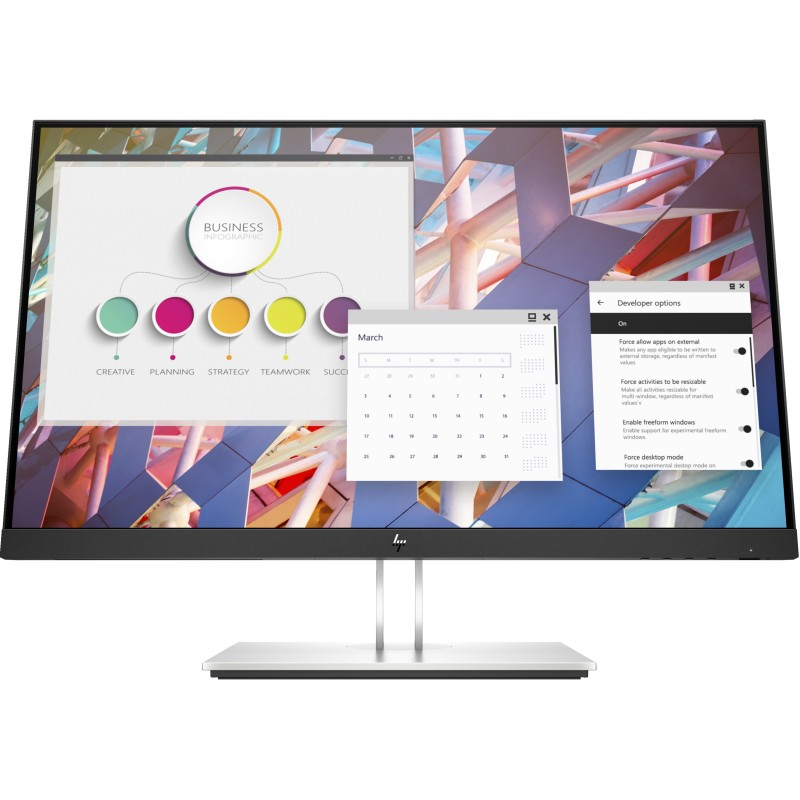

9VF99AA_ABB - 99112812

Data sheet

Product color

Black

Package type

Box

HDMI ports quantity

1

VGA (D-Sub) ports quantity

1

DisplayPorts quantity

1

Cable lock slot

Yes

Weight

12.6 lbs (5.7 kg)

Harmonized System (HS) code

85285210

Power supply type

Internal

Display diagonal

23.8"

Display resolution

1920 x 1080 pixels

HD type

Full HD

AC input frequency

50/60 Hz

Plug and Play

Yes

Width

21.2" (539.4 mm)

Height

12.7" (323.3 mm)

AC input voltage

100 - 240 V

Depth

1.85" (47 mm)

Package weight

18.5 lbs (8.4 kg)

Touchscreen

No

Height adjustment

Yes

Package width

24.1" (611 mm)

Package depth

8.78" (223 mm)

Package height

15.4" (392 mm)

HDMI version

1.4

DisplayPort version

1.2

VESA mounting

Yes

Power cable length

74.8" (1.9 m)

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

-34 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

20 - 80%

Panel type

IPS

Built-in speaker(s)

No

Cables included

HP GTIN (EAN/UPC)

194850079801

HP segment

Business

Market positioning

Business

Power consumption (standby)

0.5 W

Power consumption (off)

0.2 W

Sustainability certificates

ENERGY STAR

Sustainability compliance

Yes

Power consumption (typical)

26 W

Compliance certificates

BIS, BSMI, CB, CCC, CE, CECP, CEL, EAC, Federal Communications Commission (FCC), KCC, Norma Oficial Mexicana (NOM), VCCI, WEEE, cTUVus

HDCP

Yes

Power consumption (max)

51 W

Maximum refresh rate

60 Hz

Tilt angle range

-5 - 23°

Native aspect ratio

16:9

Display technology

LCD

Response time

5 ms

Screen shape

Flat

Contrast ratio (typical)

1000:1

Display number of colors

16.7 million colors

Display brightness (typical)

250 cd/m²

Display surface

Matt

Anti-glare screen

Yes

Supported graphics resolutions

Contrast ratio (dynamic)

5000000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.0108 x 0.0108" (0.274 x 0.274 mm)

Pixel density

93 ppi

Horizontal scan range

30 - 80 kHz

Vertical scan range

50 - 60 Hz

Viewable size, horizontal

20.7" (52.7 cm)

Viewable size, vertical

11.7" (29.6 cm)

Display diagonal (metric)

23.8" (60.5 cm)

Surface hardness

3H

Color depth

8 bit

Colour gamut standard

NTSC

Color gamut

72%

Display bezel technology

Micro-Edge

NVIDIA G-SYNC

No

AMD FreeSync

No

Flicker-free technology

Yes

Low Blue Light technology

Yes

Built-in camera

No

Detachable stand

Yes

Feet color

Silver

Built-in USB hub

Yes

HDMI

Yes

Headphone out

No

Audio input

No

Tilt adjustment

Yes

On Screen Display (OSD)

Yes

Energy efficiency class (SDR)

D

Energy efficiency class (HDR)

D

Energy consumption (SDR) per 1000 hours

14 kWh

Energy efficiency scale

A to G

Width (with stand)

21.2" (539.4 mm)

Depth (with stand)

8.15" (207 mm)

Height (with stand)

19.5" (494.9 mm)

Weight (with stand)

12.6 lbs (5.7 kg)

Width (without stand)

21.2" (539.4 mm)

Depth (without stand)

1.85" (47 mm)

Height (without stand)

12.7" (323.3 mm)

Stand included

Yes

European Product Registry for Energy Labelling (EPREL) code

363612

UNSPSC-code

43211902

Panel mounting interface

100 x 100 mm

Angle of rotation

-90 - 90°

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB upstream port type

USB Type-B

USB Type-A downstream ports quantity

4

DVI port

No

AC (power) in

Yes

Adjustable height (max)

5.91" (15 cm)

Pivot

Yes

Swiveling

Yes

Swivel angle range

-45 - 45°

Operating altitude

0 - 196850.4" (0 - 5000 m)

Non-operating altitude

0 - 480000" (0 - 12192 m)

Weight (without stand)

7.21 lbs (3.27 kg)

Response time measurement type

GTG (Gray to Gray)

On Screen Display (OSD) languages

Number of OSD languages

10

NTSC coverage (typical)

72%

Doesn't contain

Arsenic

Bezel width (bottom)

0.772" (1.96 cm)

Fast charging

Yes

Number of USB Type-B upstream ports quantity

1

HDMI cable length

70.9" (1.8 m)

Heavy metals free

Hg (mercury)

DisplayPort cable length

70.9" (1.8 m)

Specific References

UPC

194850079801

EAN13

3523210098317

MPN

9VF99AA#ABB
