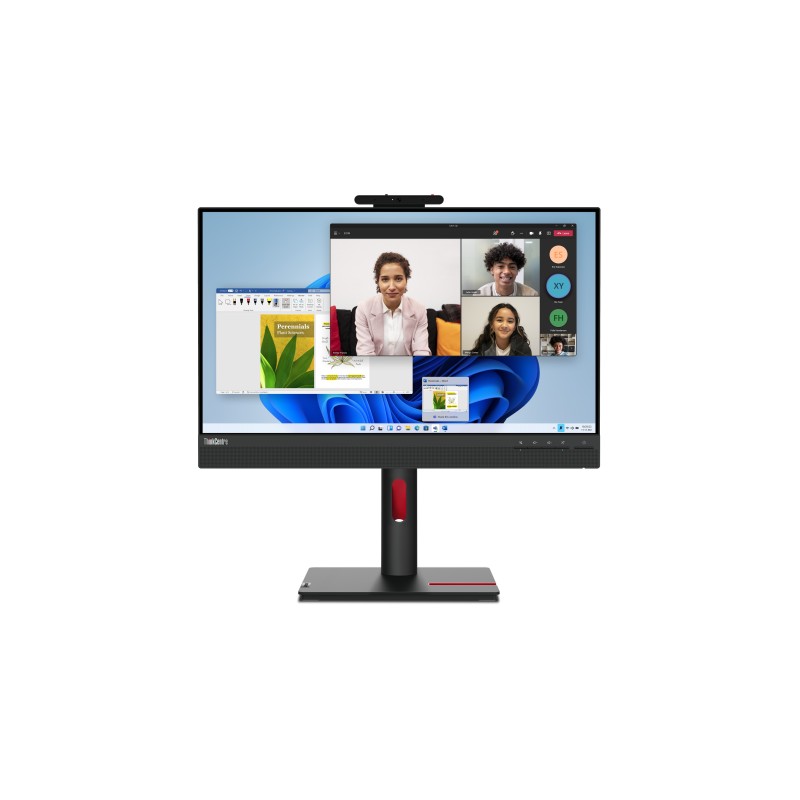

12NBGAT1EU - W128563791

Data sheet

Product color

Black

HDMI ports quantity

1

DisplayPorts quantity

1

Cable lock slot

Yes

Power supply type

External

Display diagonal

23.8"

Display resolution

1920 x 1080 pixels

HD type

Full HD

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Package weight

20.9 lbs (9.5 kg)

Touchscreen

Yes

Compatible operating systems

Windows 10
Windows 11

Height adjustment

Yes

Package width

24.4" (620 mm)

Package depth

7.36" (187 mm)

Package height

16.5" (420 mm)

HDMI version

1.4

DisplayPort version

1.2

VESA mounting

Yes

Power cable length

39.4" (1 m)

AC adapter included

Yes

Panel type

IPS

Built-in speaker(s)

Yes

Built-in microphone

Yes

Cables included

AC

Quick start guide

Yes

Power consumption (standby)

0.5 W

Power consumption (off)

0.5 W

Power consumption (typical)

14 W

Power consumption (max)

34 W

Cable lock slot type

Kensington

Backlight type

W-LED

Maximum refresh rate

60 Hz

Tilt angle range

-5 - 23.5°

Native aspect ratio

16:9

Display technology

LED

Response time

6 ms

Screen shape

Flat

Contrast ratio (typical)

1000:1

Display number of colors

16.7 million colors

Display brightness (typical)

250 cd/m²

Anti-glare screen

Yes

Contrast ratio (dynamic)

3000000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.0108 x 0.0108" (0.275 x 0.275 mm)

Pixel density

93 ppi

Viewable size, horizontal

20.7" (52.7 cm)

Viewable size, vertical

11.7" (29.6 cm)

Color depth

8 bit

Colour gamut standard

sRGB

Color gamut

99%

sRGB coverage (typical)

99%

Low Blue Light technology

Yes

Built-in camera

Yes

Number of speakers

2

RMS rated power

6 W

Detachable stand

Yes

Feet color

Black, Red

Built-in USB hub

Yes

HDMI

Yes

Tilt adjustment

Yes

On Screen Display (OSD)

Yes

Energy efficiency class (SDR)

D

Energy consumption (SDR) per 1000 hours

14 kWh

Width (with stand)

21.3" (539.8 mm)

Depth (with stand)

8.17" (207.6 mm)

Height (with stand)

21.2" (539.6 mm)

Weight (with stand)

13.2 lbs (6 kg)

Width (without stand)

21.3" (539.8 mm)

Depth (without stand)

2.87" (72.8 mm)

Height (without stand)

14.5" (367.6 mm)

Stand included

Yes

Cable management

Yes

Panel mounting interface

100 x 100 mm

Angle of rotation

-5 - 90°

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB upstream port type

USB Type-B

Number of upstream ports

1

USB Type-A downstream ports quantity

1

Adjustable height (max)

6.1" (15.5 cm)

Pivot

Yes

Swiveling

Yes

Swivel angle range

-45 - 45°

Weight (without stand)

8.16 lbs (3.7 kg)

Built-in KVM switch

Yes

Bezel width (bottom)

1.81" (4.6 cm)

Bezel width (side)

0.0787" (2 mm)

Bezel width (top)

0.0787" (2 mm)

Response time (fast)

4 ms

Color name

Raven Black

Specific References

UPC

196804766782

EAN13

0196804766782

MPN

12NBGAT1EU
