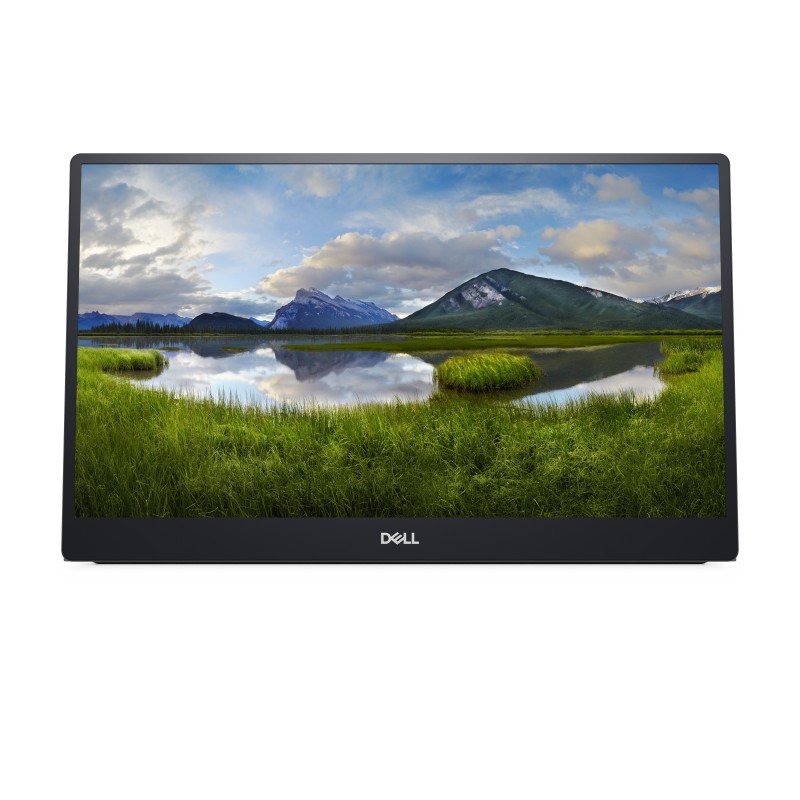

DELL-P1424H

Data sheet

Product color

Gray

Cable lock slot

No

Power supply type

Internal

Display diagonal

14"

Display resolution

1920 x 1080 pixels

HD type

Full HD

Plug and Play

Yes

Package weight

2.47 lbs (1.12 kg)

Touchscreen

No

Height adjustment

No

LED indicators

Yes

VESA mounting

No

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

5 - 90%

Panel type

IPS

Built-in speaker(s)

No

Cables included

USB Type-C to USB Type-C

Market positioning

Business

Power consumption (standby)

0.3 W

Power consumption (off)

0.3 W

Sustainability certificates

ENERGY STAR

Power consumption (typical)

5 W

Compliance certificates

RoHS

HDCP

Yes

Power consumption (max)

7.5 W

Backlight type

LED

USB Power Delivery

Yes

USB Power Delivery up to

65 W

USB Type-C DisplayPort Alternate Mode

Yes

Maximum refresh rate

60 Hz

Tilt angle range

10 - 90°

Native aspect ratio

16:9

Display technology

LCD

Response time

6 ms

Screen shape

Flat

Contrast ratio (typical)

700:1

Display number of colors

16.7 million colors

Display brightness (typical)

300 cd/m²

Anti-glare screen

Yes

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.00634 x 0.00634" (0.161 x 0.161 mm)

Pixel density

158 ppi

Viewable size, horizontal

12.2" (30.9 cm)

Viewable size, vertical

6.85" (17.4 cm)

Display diagonal (metric)

14" (35.6 cm)

Colour gamut standard

NTSC

Color gamut

72%

Built-in camera

No

HDMI

No

Headphone out

No

Tilt adjustment

Yes

On Screen Display (OSD)

Yes

Energy efficiency class (SDR)

B

Energy efficiency class (HDR)

Not available

Energy consumption (SDR) per 1000 hours

5 kWh

Energy efficiency scale

A to G

Width (with stand)

12.7" (322.4 mm)

Depth (with stand)

0.563" (14.3 mm)

Height (with stand)

7.98" (202.7 mm)

Weight (with stand)

20.8 oz (590 g)

Width (without stand)

12.7" (322.4 mm)

Depth (without stand)

0.195" (4.95 mm)

Height (without stand)

7.98" (202.7 mm)

Operating altitude

0 - 196850.4" (0 - 5000 m)

Non-operating altitude

196850.4 - 480000" (5000 - 12192 m)

Digital horizontal frequency

30 - 80 kHz

HDCP version

1.4

Doesn't contain

PVC/BFR

Bezel width (bottom)

0.874" (2.22 cm)

Bezel width (side)

0.257" (6.53 mm)

Bezel width (top)

0.257" (6.54 mm)

Front bezel color

Black

Number of USB Type-C upstream ports quantity

2

Total carbon footprint (kg of CO2e)

421

Heavy metals free

Hg (mercury)

Total carbon emissions, standard deviation (kg of CO2e)

99

Carbon emissions, manufacturing (kg of CO2e)

367.67

Carbon emissions, logistics (kg of CO2e)

5.77

Carbon emissions, energy usage (kg of CO2e)

47.43

Carbon emissions, end-of-life (kg of CO2e)

0.63

PAIA version

1.3.2, 2022

Digital vertical frequency

56 - 61 Hz

Specific References

UPC

884116452171

MPN

DELL-P1424H
